CB 45kw High SpeedDual Axle Strong Clay Brick Mixer

I'm Online Chat Now

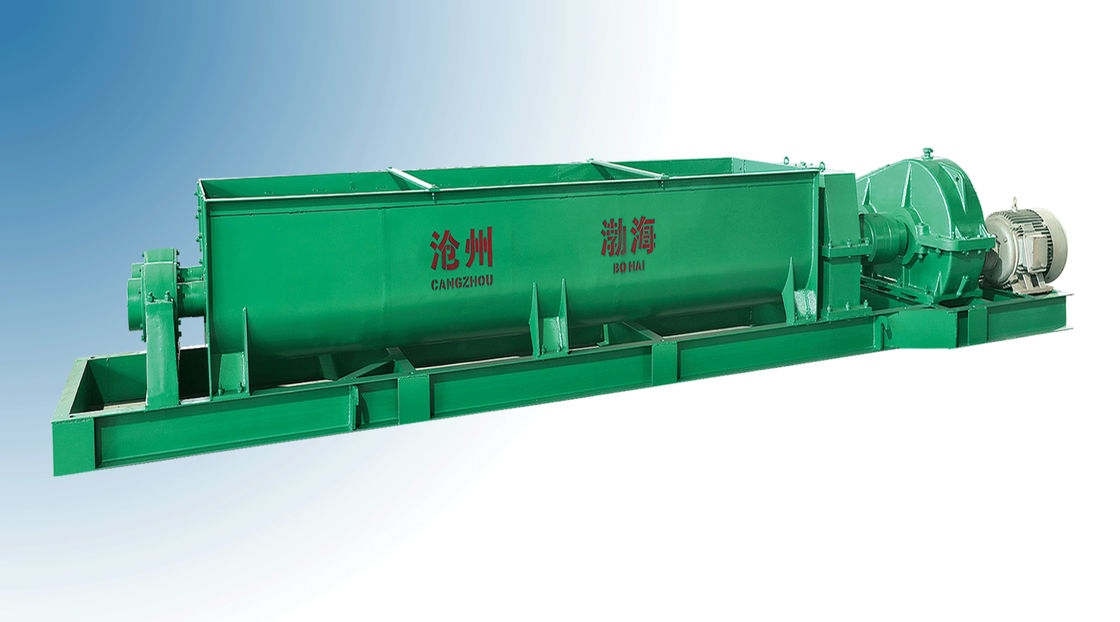

CB 45kw High SpeedDual Axle Strong Clay Brick Mixer

CB 45kw High SpeedDual Axle Strong Clay Brick Mixer
CB 45kw High SpeedDual Axle Strong Clay Brick Mixer

Large Image :  CB 45kw High SpeedDual Axle Strong Clay Brick Mixer

Product Details:
Place of Origin: CHINA
Brand Name: BOHAI
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD
Packaging Details: CONTAINER
Delivery Time: 620DAYS
Payment Terms: T/T
Supply Ability: 50SETS
Detailed Product Description
Model: SJJ43×300 Production Capacity: 40-50 (M3/h)
Mixing Diameter: 680(mm) Warranty: 1 Year
Overall Dimension: 7500×1500×1000 (mm) Machine Type: Automatic
Agitator Shaft Speed: 45r/min Raw Material: Clay , Coal Gangue, Shale And Fly Ash
High Light:

45kw Clay Brick Mixer

,

50m³/h Clay Brick Mixer

,

45r/min Clay Brick Mixer

CB- Dual-Axle Strong Clay Stirring Machine



1, Product features:


The machine has the function of cured clay,we can add the water into the material,stirr and mixi to impreve plasticitg.

2, Technical parameters:



Date Units of meas SJ400*50
Production capacity M3/h 60-100
Agitator shaft speed r/min 38
Power kw 110
Overall dimension mm 7800×1650×1100
Mixing diameter mm 550



Date Units of meas SJ400*43
Production capacity M3/h 50-80
Agitator shaft speed r/min 40
Power kw 75
Overall dimension mm 7400×1550×1000
Mixing diameter mm 500



Date Units of meas SJ350*36
Production capacity M3/h 40-70
Agitator shaft speed r/min 45
Power kw 55
Overall dimension mm 6700×1450×950
Mixing diameter mm 450



Date Units of meas SJ300*36
Production capacity M3/h 40-70
Agitator shaft speed r/min 45
Power kw 45
Overall dimension mm 6000×1450×950
Mixing diameter mm 450
