JKY70-4.0 Two Stage Vacuum Extruder Hydraulic Press Brick Making Machine

I'm Online Chat Now

JKY70-4.0 Two Stage Vacuum Extruder Hydraulic Press Brick Making Machine

JKY70-4.0 Two Stage Vacuum Extruder Hydraulic Press Brick Making Machine
JKY70-4.0 Two Stage Vacuum Extruder Hydraulic Press Brick Making Machine JKY70-4.0 Two Stage Vacuum Extruder Hydraulic Press Brick Making Machine JKY70-4.0 Two Stage Vacuum Extruder Hydraulic Press Brick Making Machine JKY70-4.0 Two Stage Vacuum Extruder Hydraulic Press Brick Making Machine

Large Image :  JKY70-4.0 Two Stage Vacuum Extruder Hydraulic Press Brick Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001
Model Number: JKY-70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 50 SETS
Detailed Product Description
Condition: New Delievery Day S: 30 Days
Warranty: 24 Month Brand: Cangbo
Place Of Origin:: HEBEI     Size: 7900×2800×3300
Production Capacity: 28000-40000pcs/h Reamer Diameter: 700
Weight: 35000
High Light:

JKY-70 Hydraulic Press Brick Making Machine

,

Hydraulic Press Clay Brick Making Machine

,

35000 KG Hydraulic Press Brick Making Machine

JKY70-4.0 Two-stage Vacuum Extruder cement hydraulic press brick making machine



1. Product features:

The double-stage vacuum brick making machine is a new type of brick making equipment designed and manufactured by our company, which benefits from advanced technology at home and abroad. Integral steel structure, the main parts of high wear-resistant alloy cast from the high-frequency heat treatment process. Reasonable structure, heavy load, energy saving, high efficiency, easy maintenance, more suitable for shale, coal gangue, fly ash to make cell brick and solid brick.

The two-stage vacuum hard plastic extruding brick machine is a new type of brick-making equipment designed and manufactured by our company, which benefits from advanced technology at home and abroad. Integral steel structure, the main parts of high wear-resistant alloy cast from the high-frequency heat treatment process. Reasonable structure, heavy load, energy saving, high efficiency, easy maintenance, more suitable for shale, coal gangue, fly ash, clay to make porous brick and solid brick.



2 . Techical parameter


Date Units of meas JKY70-4.0
Production capacity Pieces/h

28000-40000

Reamer diameter mm 700
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 280+110
Size mm 79000×2800×3300
Weight kg 35000

3.Product Advantage



They are mainly used for the raw material of coal gangue,coal ash,shale,clay and so on.It is the ideal equipment for the production of various standard brick,hollow brick,irregular brick,high hole rate brick,etc.



The main frames of the vacuum extruder machine are welded by using high-quality steel and have the features of low cost,reliable perfromance,rational structure,solid and durable properties,strong adaptability,easy to operate,low energy consumption,high capacity, long service life and easy to maintain and so on.

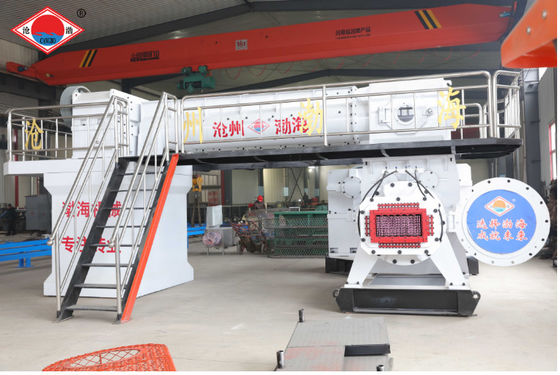

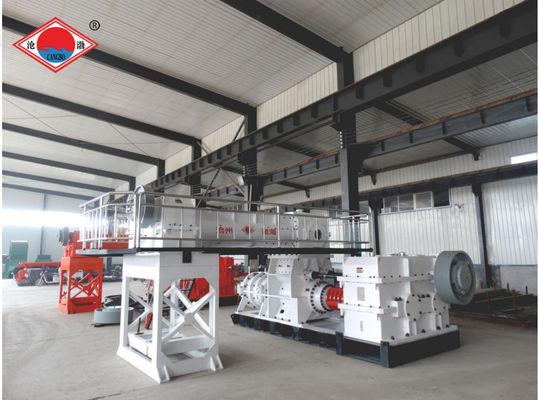

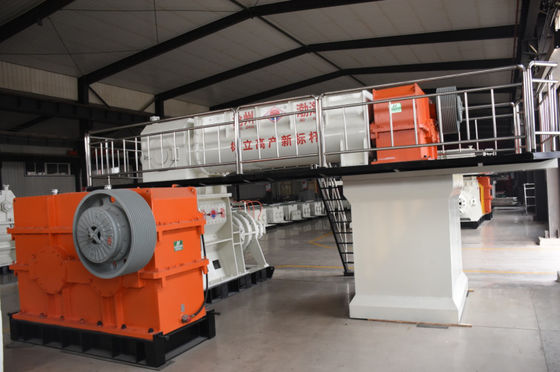

4.Machine picture



JKY70-4.0 Two Stage Vacuum Extruder Hydraulic Press Brick Making Machine 0
