JKY-50 16000pcs/h Semi Automatic Clay Brick Extruder Machine

I'm Online Chat Now

JKY-50 16000pcs/h Semi Automatic Clay Brick Extruder Machine

JKY-50 16000pcs/h Semi Automatic Clay Brick Extruder Machine
JKY-50 16000pcs/h Semi Automatic Clay Brick Extruder Machine JKY-50 16000pcs/h Semi Automatic Clay Brick Extruder Machine JKY-50 16000pcs/h Semi Automatic Clay Brick Extruder Machine

Large Image :  JKY-50 16000pcs/h Semi Automatic Clay Brick Extruder Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKY-55l
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 50 SETS
Detailed Product Description
Raw Material: Clay,Mud,Soil,Fly Ash Capacity: 12000~16000 Pcs/h
Certification: ISO9001:2008,CE,CQC,BIS Automatic Grade: Semi-automatic
Brick Type: Solid Brick, Hollow Block Weight: 2500KG
Pressure: 4.0 Mpa Moisture Content: 13~18 %
High Light:

Clay Brick Extruder Machine


2500KG Brick Extruder Machine


JKY-50 Brick Extruder Machine

JKY-50 Brick Extrusion Automatic Brick Making Machine


1. Product features:


Two-stage vacuum brick making machine is a new type of brick making equipment designed and manufactured by our company, which benefits from advanced technology at home and abroad. Integral steel structure, the main parts of high wear-resistant alloy cast from the high-frequency heat treatment process. Reasonable structure, heavy load, energy saving, high efficiency, easy maintenance, more suitable for shale, coal gangue, fly ash to make porous brick and solid brick.


2 . Techical parameter


Date Units of meas JKY55-4.0
Production capacity Pieces/h 16000-32000
Reamer diameter mm 550
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 185+75
Size mm 6300×1600×2450
Weight kg 20000


3. Product advanced


1. The machine structure design is very unique, operate steadily,machine small occupation area.
2. High vacuum extrusion ,green bricks has a small moisture content ,easy to dry .
3. Produce different size and different type bricks /blocks .
4. The bricks drying process can adopt small drying chamber, tunnel dryer chamber.
5. The bricks fired can adopt local kiln,hoffman kiln, tunnel kiln .
6. Low cost, big capacity ,high profit .
7. The machine of key spare parts to adopt special quenching, spray processing, machine has a long using life .
8. The machine has simple structure, easy operation and maintenance.
9. Long-term stability of parts supply and after-sales service.


4. Product Description


Due to the different raw materials, The Brick Machine can be divided into 2 different type:
Hard-extruder and Soft Extruder. Our extruder is special designed for the soft clay, it will be more suitable

For the country like Bangladesh, India, etc. Clay brick making machine is high-performance vacuum extrusion equipment for forming of various type hollow bricks made from coal gangue, shale, coal dust and other solid wastes. It is designed to be produced with German KWS technology according to German standards and is authorized to use German trademark of GFK. Its mixing reducer is equipped with hardened gears which are all grinded, and the extrusion reducer makes use of planet gears with high drive efficiency, therefore, it is the advanced vacuum extrusion equipment in the world.

1. Auger:
1) Welded by wear resistant electrode, this auger could be reusable; Spraying wear-resistant metal materials (the hardness is 7 times of normal one), which ensure a long service life of auger.
2) High chromium casting material with High wear resistance feature, It has a long service life for producing 24 million bricks.


5. Product Advantage


Automatic red clay brick machine is used to produce solid bricks and hollow bricks with great quantities of holes and large section in all size of hole style.It is applicable to many sorts of materials.


Its features are novel structure,advanced technology,high extrusive pressure,high production and high vacuum degree.It adopts pneumatic clutch to control.It is sensitive,convenient and reliable.

Raw materials such as soil purification through vacuum after entering the fuel tank from the lower auger extrusion molding, when the machine with different models, can produce various specifications of the porous brick.

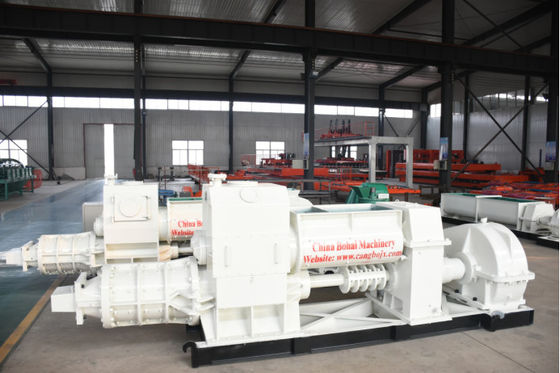

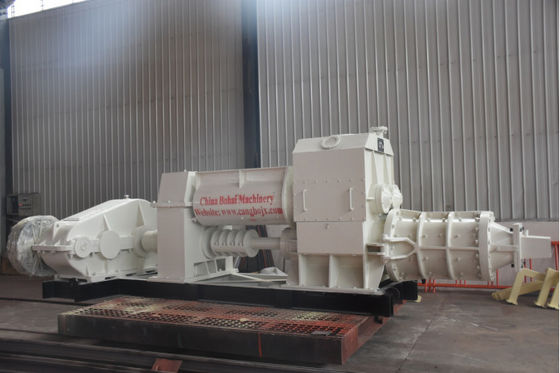

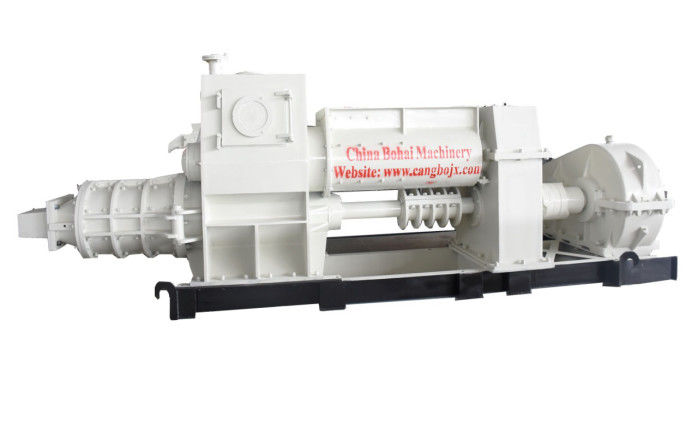

6 . Machine pics


JKY-50 16000pcs/h Semi Automatic Clay Brick Extruder Machine 0
