Product Details:
Payment & Shipping Terms:
|
| Model: | JKY-150 | Production Capacity: | 40000-50000pcs/min |
|---|---|---|---|
| Reamer Diameter: | 750MM | Pressure: | 4.0Mpa |
| Moisture Content: | 13～18 ％ | Vacuum Degree: | ≤-0.092 Mpa |
| Power: | 450+200 Kw | Size: | 11000×3300×3700 |
| High Light: | 45000pcs/h Auto Brick Making Machine,4.0Mpa Auto Brick Making Machine,750mm Auto Brick Making Machine |
||

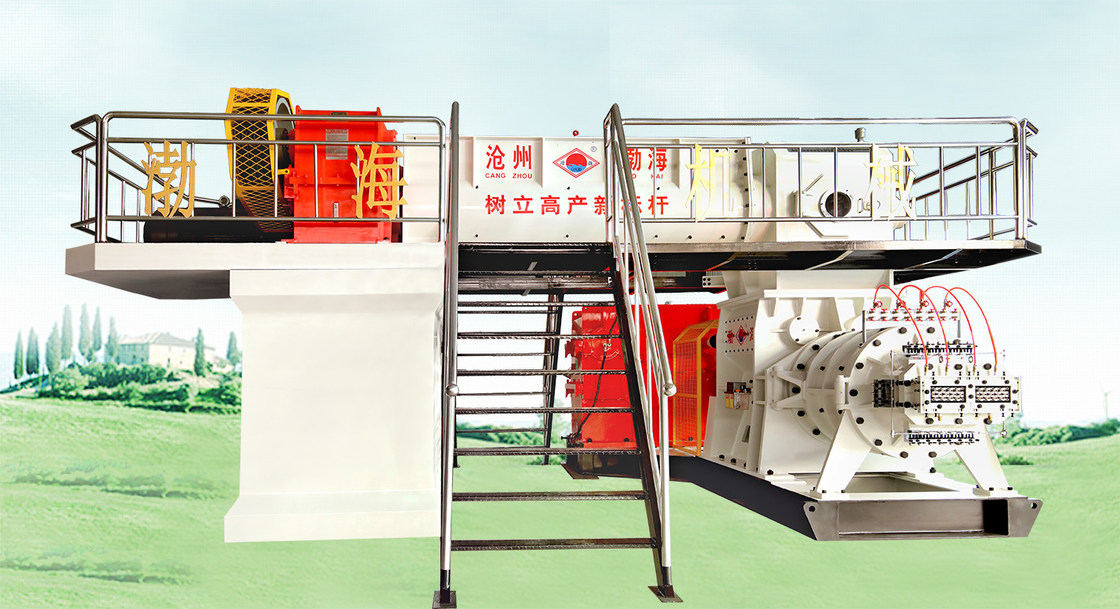

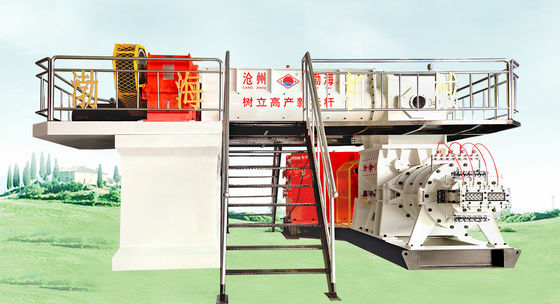

High Productivity solid auto brick machine series details intrduction
1 . Machine feature
Vacuum brick machine extrusion pressure, high vacuum, dense mud, clean appearance. Fully suitable for one yard of combustion process requirements, high productivity, low water content of molding, reduce energy consumption and loss in production. It is an ideal equipment for producing all coal gangue, high volume fly ash, shale and low quality sand brick.
2 . Techical parameter
| Date | Units of meas | JKY150 - 4.0 |
| Production capacity | Pieces/h | 45000-66000 |
| Reamer diameter | mm | 750 |
| Pressure | Mpa | 4.0 |
| Moisture content | % | 13～18 |
| Vacuum degree | Mpa | ≤-0.092 |
| Power | kw | 450+200 |
| Size | mm | 11000×3300×3700 |
| Weight | kg | 48000 |
