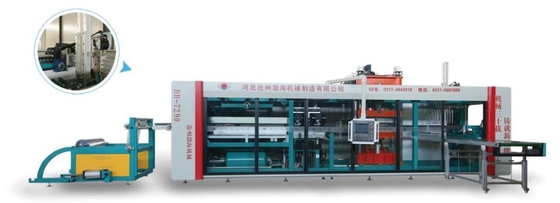

Pe Multi Station Blister Tray Making Machine Fully Automatic For Fruit Box

I'm Online Chat Now

Pe Multi Station Blister Tray Making Machine Fully Automatic For Fruit Box

Pe Multi Station Blister Tray Making Machine Fully Automatic For Fruit Box
Pe Multi Station Blister Tray Making Machine Fully Automatic For Fruit Box

Large Image :  Pe Multi Station Blister Tray Making Machine Fully Automatic For Fruit Box

Product Details:
Place of Origin: China
Brand Name: BoHai
Certification: CE
Model Number: BH-7177
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Container
Delivery Time: 20day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Two in a month
Detailed Product Description
Max.Forming Height(mm): 2 Mm Forming Length (mm): 710 Mm
(mm): 710 Mm Video Outgoing-inspection: Provided Machinery Test Report: Provided Product Type: Plastic Cup
Air Comsumption(L/min: 2.5 L/min Weight (T): 14 T
Plastic Type: Hips, PVC, PS, PP, PET Certification: Ce
High Light:

pe blister tray making machine

,

fruit box blister tray making machine

,

pe fruit box blister forming machine

Multi-Station Fully Automatic Blister Forming Machine Fruit Box



1. Fully servo driven machine.no noise.no vibration,thermoforming good and fast.
2. Fully machine in compact structure,taking small floor space;
3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
4. Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet.reaching without wasting materials;

5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the oven roast slices.



Product Paramenters



pecifications:
Forming area: 710*850*120mm(W*L*H)
Forming speed: 12-20 stroke/minute
Machine size: 9800 × 2300 × 2400mm(L*W*H)
Heat Furnace size: 7800 × 2600mm(top+bottom)
Configuration:
Pulling: Delta servo driver
Temp: Delta temperature controlling moduls
Oil pump: Germany Rexroth
Oil valve: Germany Rexroth
Circuit: Japan Fuji

6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
7. Auto cutting,auto counting,auto transmission by PLC.
8. Labor saving,only 1-2 workers packing.



Pe Multi Station Blister Tray Making Machine Fully Automatic For Fruit Box 0
