Polystyrene Lid Blister Forming Machine Positive Air Pressure Four Stations

I'm Online Chat Now

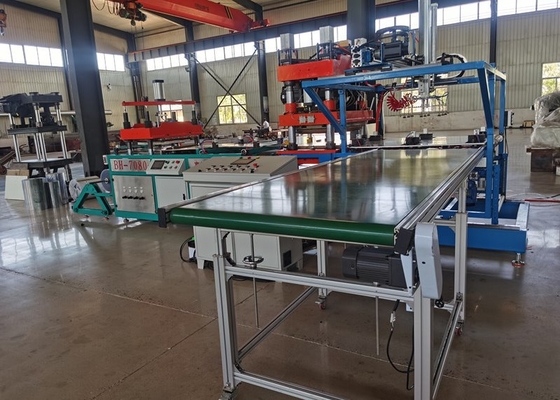

Polystyrene Lid Blister Forming Machine Positive Air Pressure Four Stations

Polystyrene Lid Blister Forming Machine Positive Air Pressure Four Stations
Polystyrene Lid Blister Forming Machine Positive Air Pressure Four Stations

Large Image :  Polystyrene Lid Blister Forming Machine Positive Air Pressure Four Stations

Product Details:
Place of Origin: China
Brand Name: BoHai
Certification: CE
Model Number: BH-7177
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Container
Delivery Time: 20day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Two in a month
Detailed Product Description
Processing Type: Plastic Thermoforming Machine Max.Forming Height(mm): 110 Mm
Forming Length (mm): 400 Mm Weight (T): 10T
Warranty Of Core Components: 1 Year Certificate: CE, ISO
Air Pressure(MPa): 30 MPa Plastic Type: PVC, PS, PP, PET
High Light:

polystyrene lid blister forming machine

,

positive air pressure blister forming machine

,

four stations blister thermoforming machine

Lid Machine Blister Forming Machine Positive Air Pressure



1. positive and negative pressure forming device.
2. vacuum forming device.
3. touch screen computer temperature module point to point control function.
4. air control device.
5. cooling device.

6.die, mold temperature control function.
7.automatic punching and cutting function.
8.automatic stack counting function.
9.edge automatic rewinding function.
10.safety protection device.



Product Paramenters



Station
Four stations
Three station
Four stations
Three station
Model
TTF-700AF
TTF-700A
TTF-520AF
TTF-520A
Forming Area
700mm x 550 mm
520mm x 400 mm
Forming Depth (Max.)
120mm
110mm
Sheet thickness
0.2-2.0mm
Forming Speed (Max.)
35times/min
30times/min
Air pressure
0.6-0.8mpa
Air consumption
3.6 m³/min
3.0 m³/min
Water consumption
0.8 m³/h
0.7 m³/h
Sheet width (Max.)
730mm
550mm
Suitable Sheet
PP, PS, HIPS, PET, PVC, PLA etc.
Power supply
AC 380V, 50Hz, Three-phase, Four-wire
Used power
105Kw
95Kw
55Kw
50Kw
Rated power
210Kw
190kw
110Kw
100Kw
Heating power
118Kw
75Kw
Procedure
Forming-punching-
cutting-stacking
Forming-cutting-
stacking
Forming-punching-
cutting-stacking
Forming-cutting-
stacking
Dimension
L14000*W4700*
H2750mm
L13000*W4700*
H2750mm
L11000*W4600*
H2700mm
L9700*W4600*
H2700mm
Weight
About 25.0T
About 19.0T
About 11.0T
About 9.0T

Polystyrene Lid Blister Forming Machine Positive Air Pressure Four Stations 0
