Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene

I'm Online Chat Now

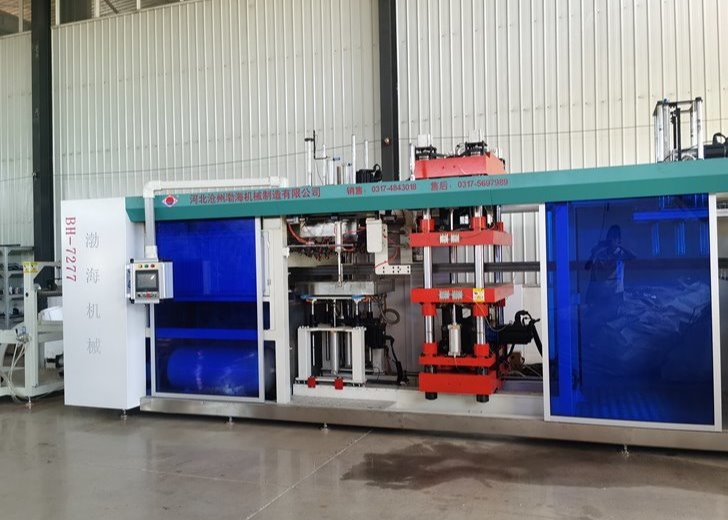

Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene

Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene
Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene

Large Image :  Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene

Product Details:
Place of Origin: China
Brand Name: BoHai
Certification: CE
Model Number: BH-7177
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Container
Delivery Time: 20day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Two in a month
Detailed Product Description
Processing Type: Plastic Thermoforming Machine Max.Forming Height(mm): 80 Mm
Forming Length (mm): 300 Mm Sheet Thickness(mm): 0.2 - 2.5 Mm
Forming Width (mm): 1000 Mm Installed Power: 200kw
Warranty: 1 Year Plastic Type: PP
High Light:

three station plastic thermoforming machine

,

0.2mm plastic thermoforming machine

,

three station plastic vacuum forming machine

Three Station Blister Forming Machine Servo One Machine

1. Mechanical, pneumatic and electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.
2. The upper and lower mold forming methods.
3. Servo feeding, stepless length adjustment, high speed, accuracy and stability.


Product Paramenters

Screw material
38CrMoAIA
Nitriding depth of screw (mm)
0.6-0.7
Screw hardness
>HV840
Screw barrel hardness
>HV940
Screw speed (r/min)
10~80
Blister limit (Pa)
2×102
Heating system
Cast aluminum ring
Cooling system
Air-cooled
Gear box
Helical gear
Screw heat treatment
Carburizing and grinding teeth
Die heating system
Stainless steel heating rod
Die structure



Straight cone hanger T-shaped head
Drive
Hydraulic transmission
Die design
Six-sided hard chrome plating and polishing
Forming machine
Motor (kw)
1.5
Forming depth (mm)
80
Vacuum pump speed (m3/h)
80

Sheet thickness (mm)
0.2-2.5

Blister limit (Pa)
2×102
Air compressor (L)
100

4. The second stage heating of the electric heating furnace.
5. The temperature control system of the electric heating furnace adopts full computer intelligent automatic compensation control. The division one control and the other adopts the human-machine interface digital input, which has high fine-tuning accuracy, uniform temperature and stability (not affected by external voltage, temperature fluctuation does not exceed 1 degree), Low energy consumption (about 15% energy saving), long service life of the furnace plate and other advantages.

Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene 0
