Product Details:
Payment & Shipping Terms:
|
| Processing Type: | Plastic Thermoforming Machine | Warranty: | One Year |
|---|---|---|---|
| Suitable Material: | PP,PET,PVC | Drive System: | Positive And Negative Hydraulic Pressure |
| Forming Width (mm): | 750 Mm | Production Speed(Cycles/min): | 25 |
| Sheet Thicknes: | 0.2-2mm | Max. Forming Area: | 740*480mm |
| High Light: | 0.2mm blister forming machine,pvc fully automatic blister forming machine,0.2mm pvc blister forming machine |
||

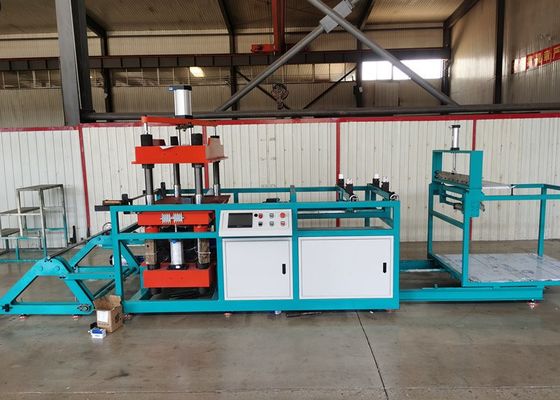

High Speed Plastic Blister Forming Machine Fully Automatic Pvc
Mechanical, pneumatic and electrical integration. Each action program is controlled by PLC. Touch screen operation, simple and convenient. In-die punching and shearing for negative pressure forming. Upper and lower mold forming method. Servo feeding,
|
Touch Screen/PLC
|
SIEMENS (Germany)
|
|
Servo Motor
|
YASKAWA (Japan)
|
|
AC Contactor/Circuit Breaker
|
SCHNEIDER (France)
|
|
Proximity Switch
|
ROCKWELL (USA)
|
|
Solenoid Directional Valve/solenoid overflowing valve/counterbalance valve
|
YUKEN (Taiwan)
|
|
Intermediate relay
|
IDEC (Japan)
|
|
Intermediate relay base
|
OMRON (Japan)
|
|
Forming Valve
|
CKD (Japan)
|
|
Solenoid Valve
|
SMC (Japan) / Mindman (Taiwan)
|
stepless length adjustment, high speed, accurate and stable. On the second-stage heating of the electric furnace. The temperature control system of the electric heating furnace adopts the full computer intelligent automatic compensation control.
