Fast Speed Plastic 2mm Blister Forming Machine Three Station Pp Pvc Pet

I'm Online Chat Now

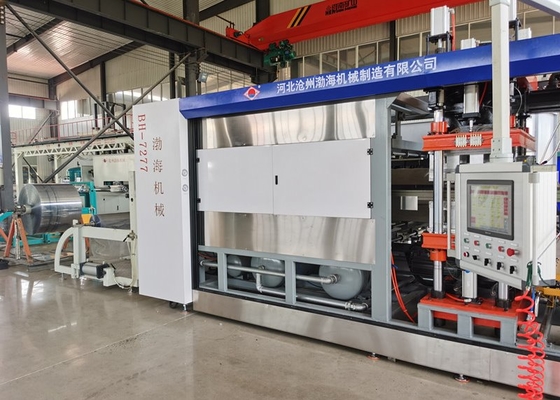

Fast Speed Plastic 2mm Blister Forming Machine Three Station Pp Pvc Pet

Fast Speed Plastic 2mm Blister Forming Machine Three Station Pp Pvc Pet
Fast Speed Plastic 2mm Blister Forming Machine Three Station Pp Pvc Pet

Large Image :  Fast Speed Plastic 2mm Blister Forming Machine Three Station Pp Pvc Pet

Product Details:
Place of Origin: China
Brand Name: BoHai
Certification: CE
Model Number: BH-7177
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Container
Delivery Time: 20day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Two in a month
Detailed Product Description
Processing Type: Plastic Thermoforming Machine Core Components: Motor, PLC
Suitable Material: PP,PET,PVC Power(W): 110 KW
Forming Width (mm): 750 Mm Water Comsumption(L/min: 3 L/min
Sheet Thicknes: 0.2-2mm Warranty:: 1 Year
High Light:

2mm blister forming machine

,

three station blister forming machine

,

fast speed pp blister forming machine

High Speed Plastic Blister Forming Machine Three Station Pp Pvc Pet



The whole machine adopts full servo control, the positioning is more accurate, and the molding is more stable. The equipment has the advantages of stable operation, low noise, energy saving and environmental protection, and high grade of finished products.




Product Paramenters
Max. Forming Area
750*480mm
650*320mm
Max. Forming Depth
125mm(custom height)
Sheet Thickness
0.3-1.8mm
Sheet Width
760mm
650mm
Max. Forming Speed
35 times/min
Air Pressure
0.6-0.8mpa
Air Consumption
3.0m³/min
2.0m³/min
Water Consumption
0.7m³/h
0.5m³/h
Rated Power
140Kw
98Kw
Used Power
98Kw
69Kw
Power Supply
AC 380V,50Hz, Three-phase, Four-wire
Dimension
L8500*W2200*H3100mm
L6000*W2000*H2700mm
Weight
About 6.5T
About 5T



The temperature control system of the electric heating furnace adopts full computer intelligent automatic compensation control. Long life and other advantages. With product data and parameter file memory function. The width of the film feeding chain can be adjusted automatically or separately.
