40kw Vacuum Forming Servo Blister Sheet Making Machine 700mm

I'm Online Chat Now

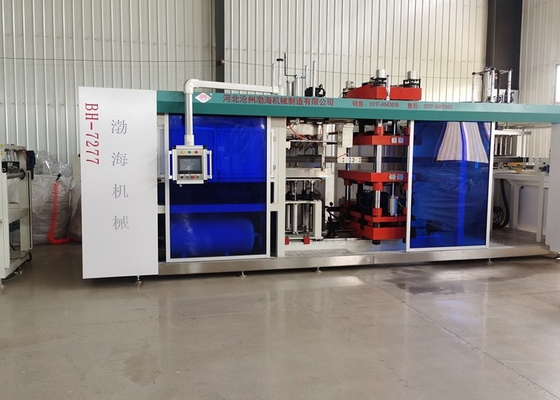

40kw Vacuum Forming Servo Blister Sheet Making Machine 700mm

40kw Vacuum Forming Servo Blister Sheet Making Machine 700mm
40kw Vacuum Forming Servo Blister Sheet Making Machine 700mm

Large Image :  40kw Vacuum Forming Servo Blister Sheet Making Machine 700mm

Product Details:
Place of Origin: China
Brand Name: BoHai
Certification: CE
Model Number: BH-7177
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Container
Delivery Time: 20day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Two in a month
Detailed Product Description
Condition: New Machinery Test Report: Provided
Forming Width: 480~700mm Suitable Material: PP,PET,PVC,PS
Core Components: Motor, PLC Heating Power (kW): Core Components: 40 KW
Certification:: Ce Showroom Location: None
High Light:

servo blister sheet making machine

,

700mm blister sheet making machine

,

servo blister vacuum forming machine



Economic Type High Speed Plastic Blister Vacuum Forming Machine Servo



1 The temperature control system of the electric heating furnace adopts full computer intelligent automatic compensation control. The division one control and the other adopts the human-machine interface digital input. It has high fine-tuning accuracy, uniform temperature and stability (not affected by external voltage, temperature fluctuations do not exceed 1 degree), Low energy consumption (about 15% energy saving), long service life of the furnace plate and other advantages.

2. The forming and cutting unit is controlled by servo motors for mold opening and closing, and the products are automatically counted and output.


Product Paramenters

Model FJL-700/1200ZK-A FJL-700/1200ZK-B
Sheet Width 510~740mm
Sheet Thickness 0.1~1.2mm
Forming Length 700~1200mm
Forming Width 480~700mm
Max. Forming Depth Negative Mould ≤ 180 mm
Positive Mould ≤ 200mm
Used Sheet PP, PS, HIPS, PVC,P ET Sheet Roll
Running Speed 3-12 Moulds/Min
Mode of cutting arrangement. Off Mould


3. The products are stacked in a variety of ways, because the products can be customized.

4. With product data and parameter file memory function.

40kw Vacuum Forming Servo Blister Sheet Making Machine 700mm 0
