Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | HeBei, China | Max.Forming Height(mm): | 10 Mm |
|---|---|---|---|
| Forming Width (mm): | 200 Mm | Marketing Type: | New Product 2022 |
| Name: | Disposable Plastic Molding Machine | Core Components: | Motor, PLC |
| Heating Power (kW): Core Components: | 40 KW | Plastic Type: | PVC, PS, PP, PET |
| High Light: | plc thermoforming blister packaging machine,container making thermoforming blister packaging machine,plc automatic blister forming machine |
||

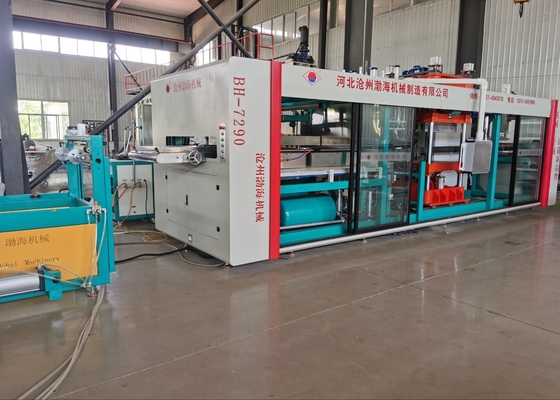

Container Blister Making Machine Plc Vacuum Forming Auto
This machine finished products are widely used in sealing and packing toys, hardware, cosmetics, electronic products (batteries, electronic components and so on), foodstuff (fruit pallets, snack boxes, biscuit boxes, food dishes, trays, etc), medicines, etc. It is suitable for plastic sheet: PVC, PE, PET, PP, PS, HIPS.
|
Machine Frame
|
Square Steel Size 120×120: machine base is complete steel plate with thickness=40mm
|
|
Machine Door
|
The top part of the door with observation window from the operation side, Heating oven could move outside
|
|
Mold Plate
|
QT500 nodular cast iron, pore-free, sand free
|
|
Pillar
|
4-pillar dia.=95mm, 40Cr steel thermal refining, hard chrome plating, mirror finish: Gide bushing Dia.≤200mm, Material: metal
ceramic Zns
|
|
IR Ceramic Heater
|
IR Ceramic Heater, Size: 240×80mm: Top oven: machine direction 10pcs*9zones: Bottom oven: machine direction 9pcs*9zones:
Total: 171pcs, Power: 800W/pcs, made in Germany
|
|
Max. Formng Area
|
760×420mm
|
|
Max. Forming Depth
|
200mm
|
|
Mold Plate Size
|
1350×520mm
|
|
Main Servo Motor
|
P-15KW (4P)
|
|
Stretching Servo Motor
|
7.5KW
|
medicines, etc. It is suitable for plastic sheet: PVC, PE, PET, PP, PS, HIPS.
