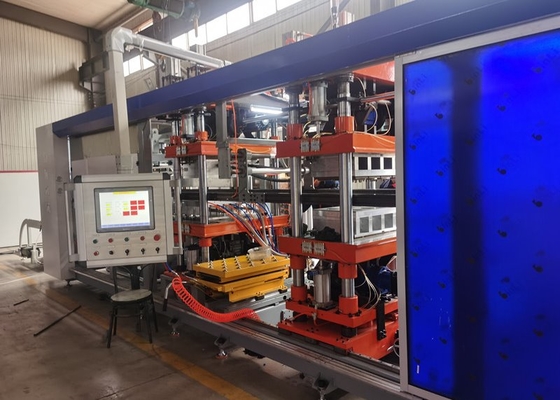

High Speed 0.6mpa Ps Blister Forming Machine Servo

I'm Online Chat Now

High Speed 0.6mpa Ps Blister Forming Machine Servo

High Speed 0.6mpa Ps Blister Forming Machine Servo
High Speed 0.6mpa Ps Blister Forming Machine Servo

Large Image :  High Speed 0.6mpa Ps Blister Forming Machine Servo

Product Details:
Place of Origin: China
Brand Name: BoHai
Certification: CE
Model Number: BH-7177
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Container
Delivery Time: 20day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Two in a month
Detailed Product Description
Condition: New Weight: About 3.7T
Air Pressure: 0.6-0.8mpa Showroom Location: None
Suitable Sheet: PET, PP, PS, HIPS, PVC Max. Forming Area: 450mm*330mm、
Sheet Width: 480mm Voltage: 380V/50HZ
High Light:

0.6mpa blister forming machine

,

ps blister forming machine

,

servo blister forming machine

Factory Supply Superior Quality Speed Blister Forming Machine Servo



1. Mechanical, pneumatic and electrical integration. Each action program is controlled by PLC. Touch screen operation, simple and convenient.
2. Positive and negative pressure cooperate with each other to form.

ax. Forming Area 450mm ×330mm
Max. Forming Depth 35mm
Sheet Thickness 0.3-1.8mm
Forming Speed 40 times/min
Air Pressure 0.6-0.8mpa
Air Consumption 2.0 m³/min
Water Consumption 0.7 m³/h
Sheet Width 480mm
Suitable material PET, PP, PS, HIPS, PVC
Rated Power 60kw
Power Supply AC 380V,50Hz, Three-phase, Four-wire
Procedure Forming-punching-cutting-stacking
Dimension L5700×W1600×H2300mm
Weight About 3.7T



3. With product information and parameter file memory function.
4. The width of the film feeding chain rail can be adjusted automatically or separately.
5. The electric furnace is automatically removed from the device.
6. Mechanical feeding roll device to reduce labor intensity of workers.
7. Need to cut 1mm PET material, 20 meters knife line products, fast speed, strong stability, with gas-liquid booster system.
