| Oil Pump Motor: | Power: 11KW, 6P | Color: | Customized |
|---|---|---|---|
| Forming Length (mm):: | 400 Mm | Marketing Type: | New Product 2020 |
| Name: | Disposable Plastic Molding Machine | Max.Forming Height(mm): | 60 Mm |
| Warranty Of Core Components: | 1 Year | Plastic Type: | Hips, PVC, PS, PP, PET |
| High Light: | 200mm food container thermoforming machine,three station food container thermoforming machine,thermoforming fully automatic plastic molding equipment |
||

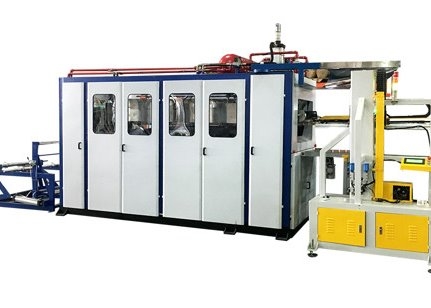

Fully Automatic200mm Plastic Molding Equipment Three Station
TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.
|
Model
|
TTF-400A
|
|
Forming Area
|
400mm x 300 mm
|
|
Forming Depth (Max.)
|
60mm
|
|
Sheet thickness
|
0.2-2.0mm
|
|
Forming Speed (Max.)
|
35times/min
|
|
Air pressure
|
0.6-0.8mpa
|
|
Air consumption
|
2.0 m³/min
|
|
Water consumption
|
0.7 m³/h
|
|
Sheet width (Max.)
|
430mm
|
|
Suitable Sheet
|
PP, PS, HIPS, PET, PVC, PLA etc.
|
|
Power supply
|
AC 380V, 50Hz, Three-phase, Four-wire
|
|
Used power
|
29Kw
|
|
Rated power
|
58Kw
|
|
Heating power
|
50.4Kw
|
|
Procedure
|
Forming-cutting-stacking
|
|
Dimension
|
L6000*W4000*H2500mm
|
|
Weight
|
About 5.2T
|
1. Integrated type, punching and cutting, stacking and counting as one;
2. The most advanced cam structure (equipped with SKF bearings);
3. Flexible electric furnace movement (movable from front to back, left and right) can be applied to products with smaller layout;
4. The leftover material is automatically wound up;
