Product Details:
Payment & Shipping Terms:
|
| Oil Pump Motor: | Power: 11KW, 8P | Voltage: | 220V |
|---|---|---|---|
| Production Capacity:: | 7-12m/min | Cycle Time:: | 0.15seconds |
| Name: | Disposable Plastic Molding Machine | Core Components: | Motor, PLC |
| Warranty Of Core Components: | 1 Year | Plastic Type: | Hips, PVC, PS, PET |
| High Light: | 220v vacuum blister forming machine,pet tray vacuum blister forming machine,220v food container vacuum forming machine |
||

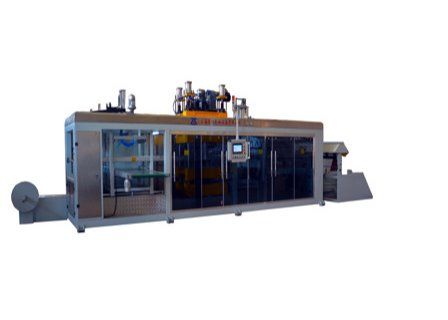

Vacuum Blister Forming Machine For PET Fast Food Tray
Features: ZS-7285 negative pressure program-controlled plastic blister molding machine, using the integrated design of machine, electricity and gas, using microcomputer and industrial control PLC to control the operation process of the whole equipment. The entire system HMI (Human
leather phone case forming machine for mobile phone case forming.
| Name | BM-4060RY | BM-4570RY | BM-5080RY | BM-6080RY |
| Power | 3-4kw | 4-5kw | 6-7kw | 10-11kw |
| Power input | 220V 1P | 220V 1P | 380V 3P | 380V 3P |
| Air pressure | 6-8kg | 6-8kg | 6-8kg | 6-8kg |
| Timpurature | 400℃ | 400℃ | 400℃ | 400℃ |
| Cylinder pressure | 5T | 7T | 10T | 15T |
| Cylinder strok | 250mm | 250mm | 250mm | 250mm |
| Heat area | 230*280mm | 360*270mm | 460*390mm | 900*390mm |
| Working plate size | 400*446mm | 450*536mm | 550*625mm | 550*1090mm |
| Max.mould size | 400*446mm | 450*536mm | 550*625mm | 550*1090mm |
| Max gap of mould | 360mm | 360mm | 450mm | 450mm |
| Min.gap of mould | 110mm | 110mm | 200mm | 200mm |
| Weight | 800kg | 1000kg | 1200kg | 1500kg |
| Machine size | 140*80*230cm | 150*90*230cm | 180*100*230cm | 180*140*230cm |
Machine Interface). That is, a plastic sheet forming equipment that completes feeding, heating, forming, punching, and stacking at one time. Reduce labor, convenient operation, improve production efficiency, strong reliability, high degree of automation
