Product Details:
Payment & Shipping Terms:
|
| Oil Pump Motor: | Power: 11KW, 6P | Color: | Customized |
|---|---|---|---|
| Production Capacity:: | 8-12m/min | Cycle Time:: | 0.15seconds |
| Name: | Disposable Plastic Molding Machine | Core Components: | Motor, PLC |
| Warranty Of Core Components: | 1 Year | Plastic Type: | Hips, PVC, PS, PP, PET |
| High Light: | plc vacuum blister forming machine,vacuum blister forming machine 12m/min,plc food container vacuum forming machine |
||

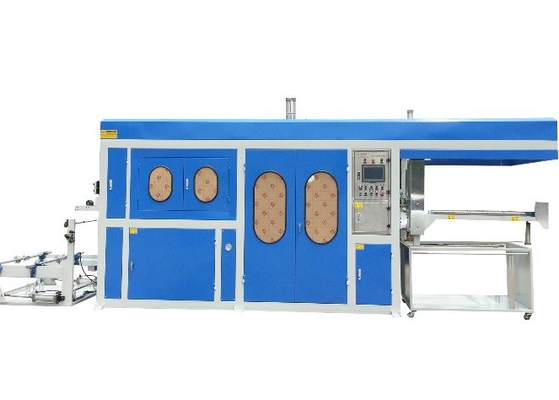

Automatic Vacuum Blister Forming Machine For PET Fast Food Tray
The temperature control system of the electric heating furnace adopts full computer intelligent automatic compensation control, one zone control and one digital input, with high precision of fine-tuning, uniform temperature, fast heating (only 3 minutes from 0-400 degrees), stable (not affected by external voltage) , The temperature fluctuation does not exceed 1 degree).
|
Model No.
|
SPC-660C
|
|
Mould Driving Method
|
Cam
|
|
Approximate Max. Forming Area
|
660 x 300 mm
|
|
Approx. Running Speed
|
15-30 Stroke / min approx. during production
|
|
Approx. Sheet width required for feeding
|
500 – 660 mm in rolls.
|
|
Mode of cutting arrangement
|
In mould automatic
|
|
Sheet thickness Range
|
0.20 – 2.0 mm
|
|
Material
|
PP, PS, PET, PVC,PLA
|
|
Max. Draw depth, i.e. cup length
|
140 mm (Could be special design)
|
|
Oil Pump Motor Power
|
11KW, 6P
|
|
Sheet Feeding Motor
|
2.2KW
|
|
Max. Sheet roll diameter
|
800 mm
|
|
Heating arrangement
|
Top + bottom
heating with IR Ceramic Heater(120pieces, 650W)
|
|
Temperature Controller & Thermocouple
|
PID K-Type
|
|
|
1. Integrated type, punching and cutting, stacking and counting as one;
2. The most advanced cam structure (equipped with SKF bearings);
3. Flexible electric furnace movement (movable from front to back, left and right) can be applied to products with smaller layout;
4. The leftover material is automatically wound up;
5. The width of the film feeding chain track can be adjusted synchronously or separately;
