| Color: | Customized | Name: | Disposable Plastic Molding Machine |
|---|---|---|---|
| Plastic Type: | PVC, PS, PP, PET | Forming Width (mm): | 260mm |
| Key Selling Points: | Easy To Operate | Place Of Origin: | Hebebi, China |
| Weight (T): | 5 T | Water Comsumption(L/min: | 0.5 L/min |
| High Light: | 260mm plastic cup thermoforming machine,servo motor plastic cup thermoforming machine,260mm cup thermoforming machine |
||

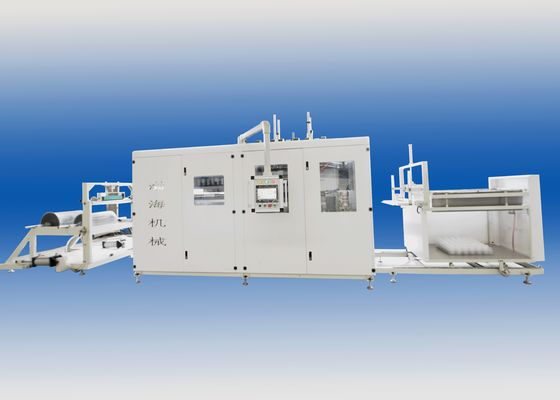

260mm Motor Plastic Cup ThermoformingBlister Forming MachineEnergy Saving
Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor.Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency.
|
Max. Forming Area
|
650*300mm
|
|
Max. Forming Depth
|
125mm
|
|
Sheet Thickness
|
0.3-1.8mm
|
|
Sheet Width
|
650mm
|
|
Max. Forming Speed
|
35 times/min
|
|
Air Pressure
|
0.6-0.8mpa
|
|
Air Consumption
|
2.0m³/min
|
|
Water Consumption
|
0.5m³/h
|
|
Rated Power
|
98Kw
|
|
Used Power
|
69Kw
|
|
Power Supply
|
AC 380V,50Hz, Three-phase, Four-wire
|
|
Dimension
|
L8500*W2200*H2700mm
|
|
Weight
|
About 5T
|
1. Automaticsheet feeder with square steel structure, high wear resistance, more stable, efficiently, the accuracy of feeding size could be improved by automatic feeding.
