Servo Control Blister Forming Machine Plastic Cup Production Line For Hips

I'm Online Chat Now

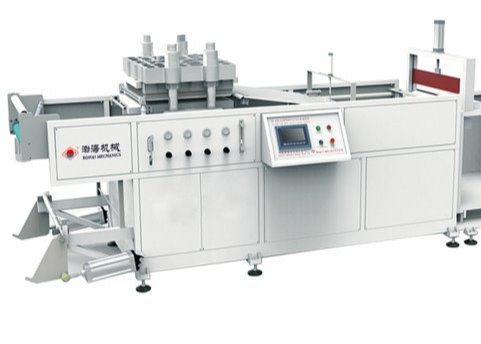

Servo Control Blister Forming Machine Plastic Cup Production Line For Hips

Servo Control Blister Forming Machine Plastic Cup Production Line For Hips
Servo Control Blister Forming Machine Plastic Cup Production Line For Hips

Large Image :  Servo Control Blister Forming Machine Plastic Cup Production Line For Hips

Product Details:
Place of Origin: China
Brand Name: BoHai
Certification: CE
Model Number: BH-7177
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Container
Delivery Time: 20day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Two in a month
Detailed Product Description
Oil Pump Motor: Power: 11KW, 6P Color: Customized
Voltage: 380V/50HZ Weight: 3500kg
Name: Disposable Plastic Molding Machine Distance Between Tie Bars: 570x570 Mm
Suitable Material: PP, PS, PET, PVC,PLA Warranty Of Core Components: 1 Year
High Light:

servo control blister forming machine

,

hips blister forming machine

,

hips plastic cup molding machine

Servo Disposable Plastic Molding Machine One machine


The whole machine adopts full servo control, the positioning is more accurate, and the forming is more stable. The equipment has the advantages of stable operation, low noise, energy saving and environmental protection, and high-grade finished products. The temperature control system of the electric heating furnace adopts the intelligent automatic compensation control of the whole computer,


Product Paramenters
Model SP-410S
Suitable Material PS/HIPS/PVC/PET
Journey Range 30-160mm
Max Forming Area 410x300mm
Max Forming Depth 52mm
Total Power 10KW
Power Consumption 4-5KW
Required Sheet Width 430mm
Required Sheet Thickness 0.15-0.55mm
Air Pressure 0.4-0.7MPa
Air Consumption 0.6-0.8m³/min
Water Consumption (recycle) 60 liters/hr
Punching Frequency 8-32 times/min
Power Voltage 415V/50HZ
Approx. Machine Weight 1000kg
Approx. Machine Dimension 2700×830×1450mm


1. Integrated type, punching and cutting, stacking and counting as one;

2. The most advanced cam structure (equipped with SKF bearings);
3. Flexible electric furnace movement (movable from front to back, left and right) can be applied to products with smaller layout;
4. The leftover material is automatically wound up;
5. The width of the film feeding chain track can be adjusted synchronously or separately;
6. Automatic removal device of electric furnace;
