Disposable Plastic Molding Blister Forming MachineThree Station Automatic

I'm Online Chat Now

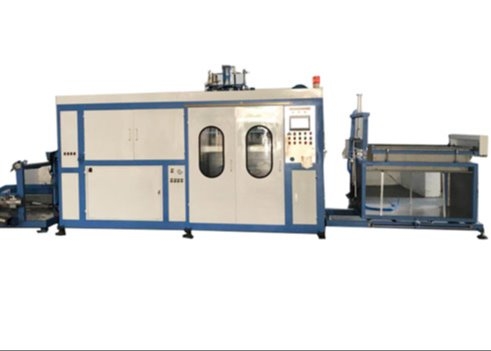

Disposable Plastic Molding Blister Forming MachineThree Station Automatic

Disposable Plastic Molding Blister Forming MachineThree Station Automatic
Disposable Plastic Molding Blister Forming MachineThree Station Automatic

Large Image :  Disposable Plastic Molding Blister Forming MachineThree Station Automatic

Product Details:
Place of Origin: China
Brand Name: BoHai
Certification: CE
Model Number: BH-7177
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Container
Delivery Time: 20day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Two in a month
Detailed Product Description
Oil Pump Motor: Power: 11KW, 6P Color: Customized
Voltage: 380V/50HZ Weight: 3500kg
Name: Disposable Plastic Molding Machine Distance Between Tie Bars: 570x570 Mm
Ejector Stroke(mm): 160 Mm Marketing Type: New Product 2021
High Light:

three station blister tray making machine

,

11kw blister tray making machine

,

blister tray making machine automatic


Disposable Plastic Molding Blister Forming MachineThree Station Automatic

The temperature control system of the electric heating furnace adopts full computer intelligent automatic compensation control, one zone control and one digital input, with high precision of fine-tuning, uniform temperature, fast heating (only 3 minutes from 0-400 degrees), stable (not affected by external voltage).


PRODUCT SPECIFICATIONS

Item / Type
Unit
S2800H
Screw Type

B
Screw Diameter
mm
50
Screw Ratio
L/D
1:25
Theoretical Injection Volume
cm³
420
Injection Volume (pp)
g
378
Max Injection Rate
cm³/s
689.5
Injection Pressure
Mpa
164
Dwell Pressure
kg/cm3
1675
Max Injection Speed
mm/s
400 !!!
Max Rotational Speed Of Screw
r/min
0-400
Clamping Part


Clamp Tonnage
KN
2800
Toggle Stroke
mm
560
Tie Bar Distane
mmxmm
570x570
Max mold
mm
600
Min Mold
mm
240
Ejection Stroke
mm
160
Ejector Force Forward
KN
61.5
Die Timble Amount
Pcs
5
Others


System Pressure
Mpa
23 !!!
Motor Power
KW
79.6
Heating Powr
KW
18.65
Oil Tank Capacity
L
350
Machine Size
M
6.02x1.5x1.86
Machine Weight
Ton
9.7



1. Integrated type, punching and cutting, stacking and counting as one;

2. The most advanced cam structure (equipped with SKF bearings);

3. Flexible electric furnace movement (movable from front to back, left and right) can be applied to products with smaller layout;

4. The leftover material is automatically wound up;

5. The width of the film feeding chain track can be adjusted synchronously or separately;
