160kw Double Shaft Mixer For Mining Industry Stirring Machine

I'm Online Chat Now

160kw Double Shaft Mixer For Mining Industry Stirring Machine

160kw Double Shaft Mixer For Mining Industry Stirring Machine
160kw Double Shaft Mixer For Mining Industry Stirring Machine 160kw Double Shaft Mixer For Mining Industry Stirring Machine 160kw Double Shaft Mixer For Mining Industry Stirring Machine 160kw Double Shaft Mixer For Mining Industry Stirring Machine 160kw Double Shaft Mixer For Mining Industry Stirring Machine 160kw Double Shaft Mixer For Mining Industry Stirring Machine 160kw Double Shaft Mixer For Mining Industry Stirring Machine

Large Image :  160kw Double Shaft Mixer For Mining Industry Stirring Machine

Product Details:
Place of Origin: CHINA
Brand Name: BOHAI
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD
Packaging Details: CONTAINER
Delivery Time: 620DAYS
Payment Terms: T/T
Supply Ability: 50SETS
Detailed Product Description
Model: SJJ43×300 Agitator Shaft Speed: 40r/min
Production Capacity: 50-80 (M3/h) Overall Dimension: 7500×1500×1000 (mm)
Mixing Diameter: 680(mm) Machine Type: Automatic
Color: White Warranty: 1 Year
Raw Material: Clay , Coal Gangue, Shale And Fly Ash
High Light:

160kw double shaft mixer

,

40r/min double shaft mixer

,

stirring machine double shaft mixer

160KW Double Shaft Mixer For Mining Industry Stirring Machine



1.product description


Double shaft mixer uses two symmetrical spiral axis of the synchronous rotation, while conveying dry powder and other powdery material while adding water and stirring, uniform humidification of dry powdery material, so that the humidification material does not take dry ash will not seepage The purpose of water droplets, so as to facilitate wet loading and transportation of ash loading or transfer to other conveying equipment. Mainly used in thermal power plants, brick, mining and other industries fly ash or similar materials wet loading occasions.



2,Technical parameters:



Date Units of meas SJ400*50
Production capacity M3/h 60-100
Agitator shaft speed r/min 38
Power kw 110
Overall dimension mm 7800×1650×1100
Mixing diameter mm 550



Date Units of meas SJ400*43
Production capacity M3/h 50-80
Agitator shaft speed r/min 40
Power kw 75
Overall dimension mm 7400×1550×1000
Mixing diameter mm 500



Date Units of meas SJ350*36
Production capacity M3/h 40-70
Agitator shaft speed r/min 45
Power kw 55
Overall dimension mm 6700×1450×950
Mixing diameter mm 450



Date Units of meas SJ300*36
Production capacity M3/h 40-70
Agitator shaft speed r/min 45
Power kw 45
Overall dimension mm 6000×1450×950
Mixing diameter mm 450

3. Production environment



Our company now has 30,000 square meters and currently has more than 300 employees, including more than 100 senior technical engineers, which meets the needs of customers for brick-making equipment and technology to the greatest extent. In Bohai's workshop, we will continue to focus on industrial management, run the enterprise with due diligence, continue to strengthen technological innovation, and create better quality products.



4. Enterprise development trend



Over the years, Bohai Machinery has been advancing steadily under the care and guidance of leaders at all levels from Xi’an Wall Materials Research and Design Institute, Hebei Wall Materials Science and Technology Information Network, and Cangzhou Shi Wall Materials Innovation Office, and has gradually formed its own industrial characteristics. Product layout and brand advantages have a place in the field of brick-making machinery.

Bohai Machinery adheres to the development strategy of opening to the outside world, actively participates in the construction of the country's one belt and one road, and allows Chinese manufacturing to go global. Bohai Machinery welcomes brick buyers from all over the world, in Russia, Kazakhstan, Uzbekistan, Mongolia, Bangladesh, Zimbabwe, Pakistan In other countries, Bohai Machinery's equipment operates.

At present, Bohai Machinery has formed a corporate development idea that integrates product diversification, internal learning and training mechanisms, its own R&D team and its own experimental base, and has a corporate management system integrating independent design, casting, production, sales and service, forming its own right The raw material analysis database, the foundry material test database and the intelligent R&D team allow big data to lead the development of the industry and intelligently solve the market demand. Establish a sound industry information interconnection, intercommunication and sharing, aiming at the development direction of the wall material industry, and providing customized high-quality products and services for the market

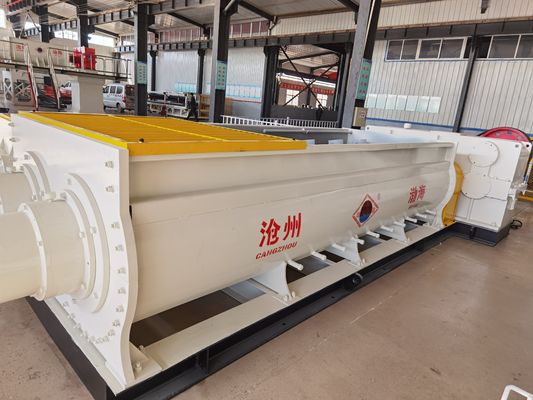

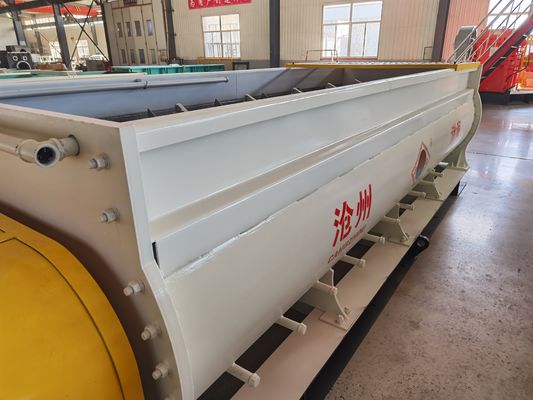

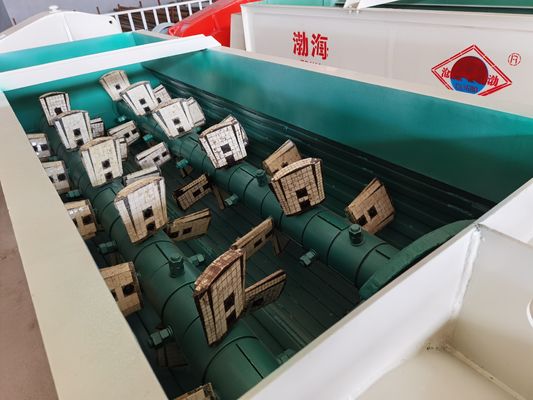

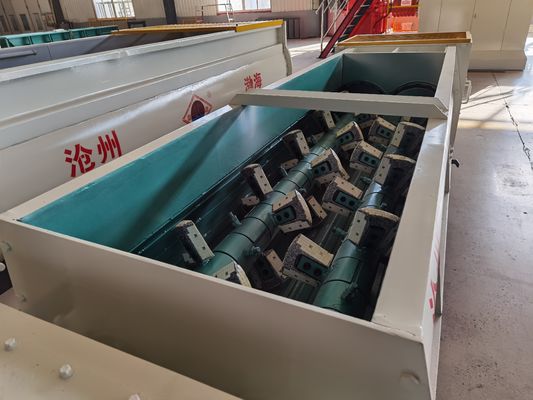

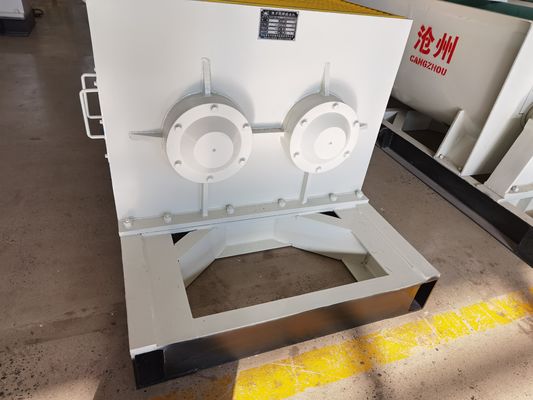

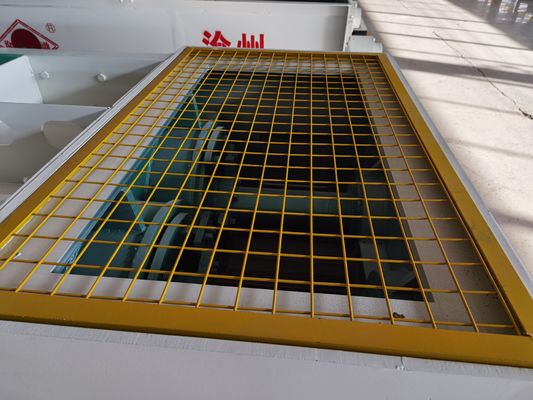

5. Picture

160kw Double Shaft Mixer For Mining Industry Stirring Machine 0160kw Double Shaft Mixer For Mining Industry Stirring Machine 1160kw Double Shaft Mixer For Mining Industry Stirring Machine 2160kw Double Shaft Mixer For Mining Industry Stirring Machine 3
