JKY-60 Energy Saving Big Capacity Clay Brick Extruder Machine

I'm Online Chat Now

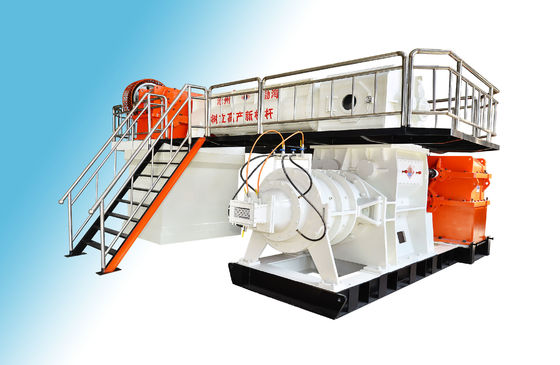

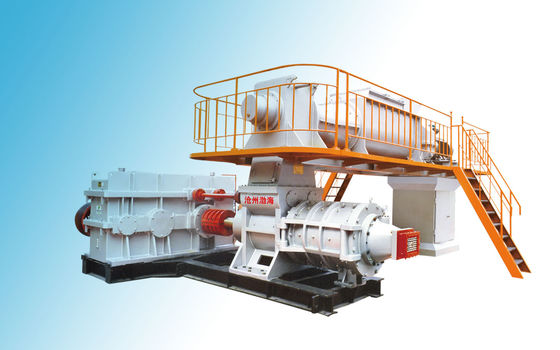

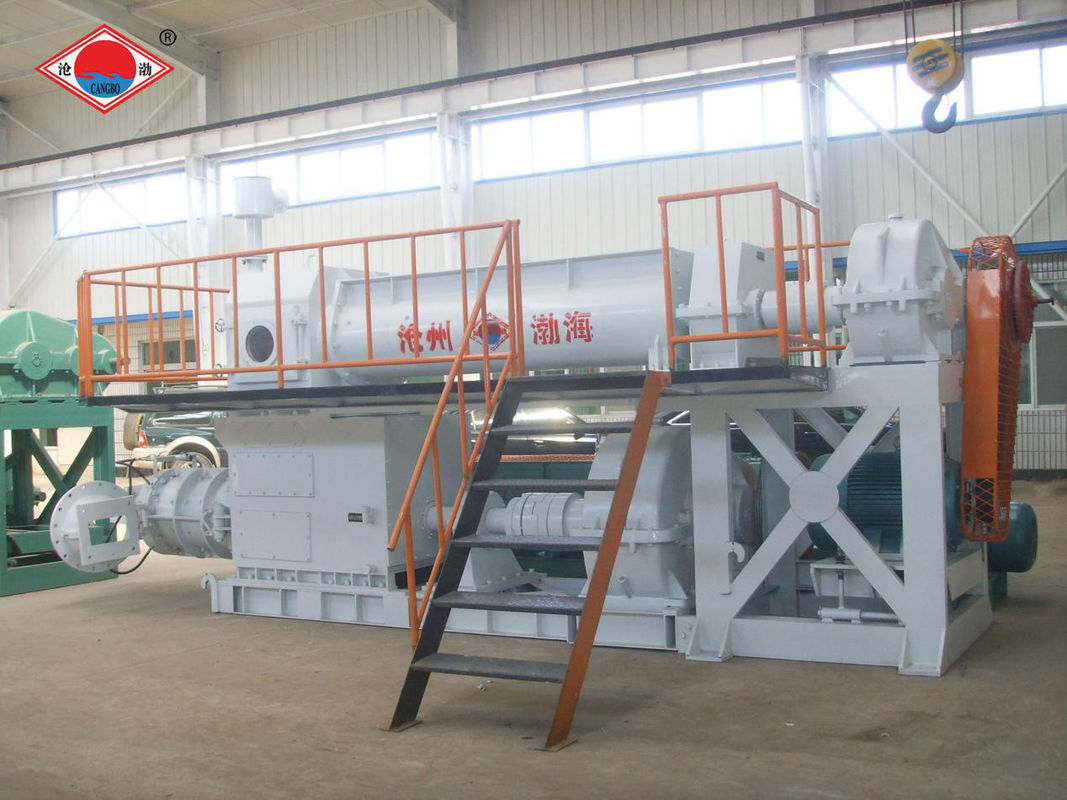

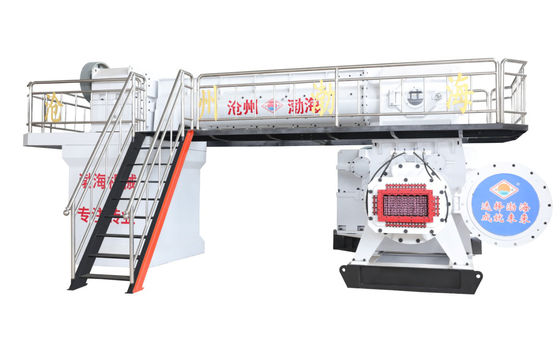

JKY-60 Energy Saving Big Capacity Clay Brick Extruder Machine

JKY-60 Energy Saving Big Capacity Clay Brick Extruder Machine
JKY-60 Energy Saving Big Capacity Clay Brick Extruder Machine JKY-60 Energy Saving Big Capacity Clay Brick Extruder Machine JKY-60 Energy Saving Big Capacity Clay Brick Extruder Machine JKY-60 Energy Saving Big Capacity Clay Brick Extruder Machine

Large Image :  JKY-60 Energy Saving Big Capacity Clay Brick Extruder Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001
Model Number: JKY-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 SETS
Detailed Product Description
Production Capacity: 18000-32000pcs/H Reamer Diameter: 600MM
 Pressure: 4.0 Mpa Moisture Content: 13~18 %
Vacuum Degree: ≤-0.092 Mpa Power: 250+90kw
Size: 7150×2200×3100   Weight: 28000KG
Origin: HEBEI
High Light:

JKY-60 Clay Brick Extruder Machine

,

32000pcs/H Clay Brick Extruder Machine

,

JKY-60 Vacuum Extruder Machine

JKY60-4.0 Two-stage Vacuum Extruder An Ideal Brick Burner with High Performance and Low Consumption



1, Product features


Two-stage vacuum extruder is a new type brick-making equipment, designed and manufactured by our company, benefiting from advanced technology both at home and abroad.


It is of whole steel structure with main parts cast of high-abrasion alloy by high frequency heat treatment technology. Fearturing reasonable structure, heavy-duty, energy saving, high efficiency and easy maintenance, it is more suitalbe for manufacturing cell bricks and solid bricks with shale, coal gangue and fly ash.



2, Technical parameters



Date Units of meas JKY60-4.0
Production capacity Pieces/h 18000-32000
Reamer diameter mm 600
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 250+90
Size mm 7150×2200×3100
Weight kg 28000




3 Product Description





The double-stage vacuum brick making machine is a new type of brick making equipment designed and manufactured by our company, which benefits from advanced technology at home and abroad. Integral steel structure, the main parts of high wear-resistant alloy cast from the high-frequency heat treatment process. Reasonable structure, heavy load, energy saving, high efficiency, easy maintenance, more suitable for shale, coal gangue, fly ash to make cell brick and solid brick.





The two-stage vacuum hard plastic extruding brick machine is a new type of brick-making equipment designed and manufactured by our company, which benefits from advanced technology at home and abroad. Integral steel structure, the main parts of high wear-resistant alloy cast from the high-frequency heat treatment process. Reasonable structure, heavy load, energy saving, high efficiency, easy maintenance, more suitable for shale, coal gangue, fly ash, clay to make porous brick and solid brick



They are mainly used for the raw material of coal gangue,coal ash,shale,clay and so on.It is the ideal equipment for the production of various standard brick,hollow brick,irregular brick,high hole rate brick,etc.



The main frames of the vacuum extruder machine are welded by using high-quality steel and have the features of low cost,reliable perfromance,rational structure,solid and durable properties,strong adaptability,easy to operate,low energy consumption,high capacity, long service life and easy to maintain and so on.

JKY-60 Energy Saving Big Capacity Clay Brick Extruder Machine 0JKY-60 Energy Saving Big Capacity Clay Brick Extruder Machine 1
