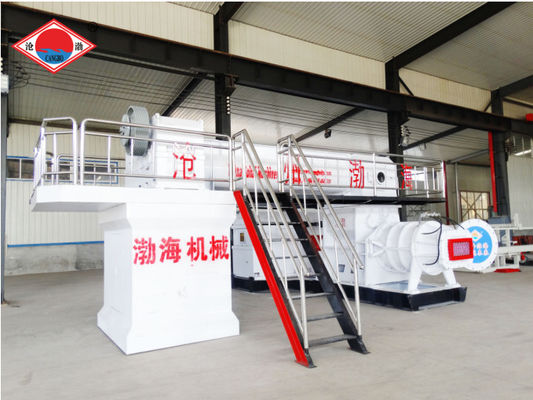

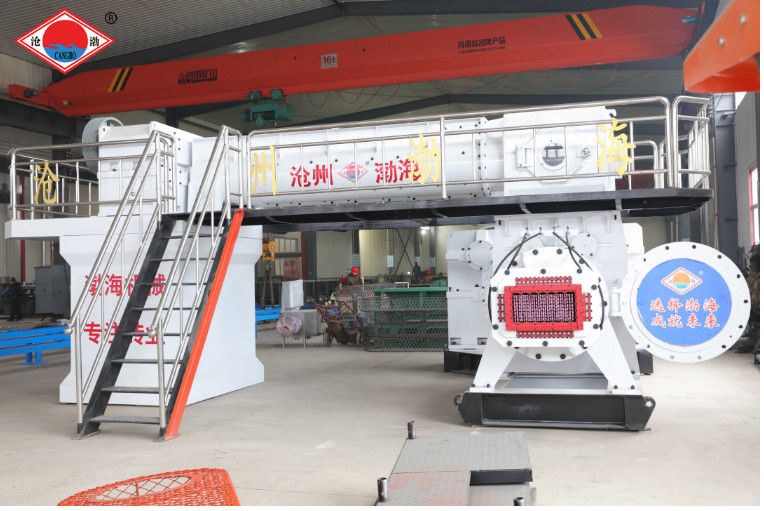

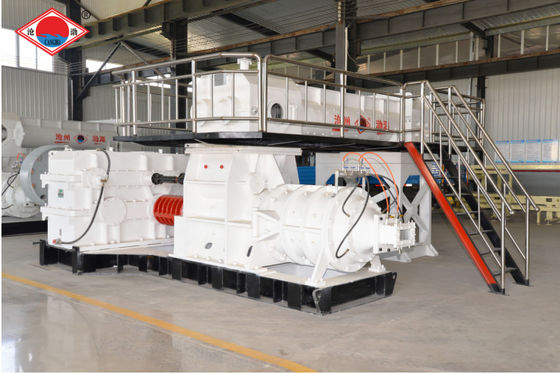

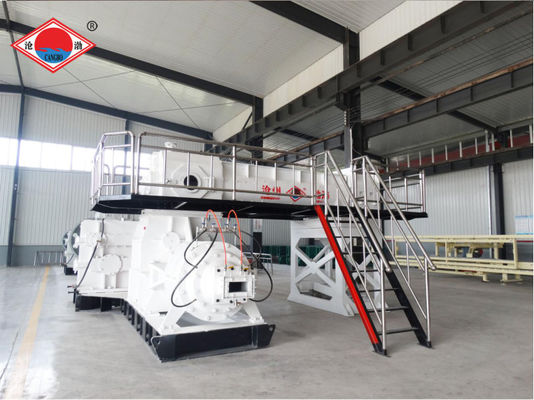

JKY-75S High Abrasion Resistance Fly Ash Brick Making Machine

I'm Online Chat Now

JKY-75S High Abrasion Resistance Fly Ash Brick Making Machine

JKY-75S High Abrasion Resistance Fly Ash Brick Making Machine
JKY-75S High Abrasion Resistance Fly Ash Brick Making Machine JKY-75S High Abrasion Resistance Fly Ash Brick Making Machine JKY-75S High Abrasion Resistance Fly Ash Brick Making Machine JKY-75S High Abrasion Resistance Fly Ash Brick Making Machine

Large Image :  JKY-75S High Abrasion Resistance Fly Ash Brick Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001
Model Number: JKY-75S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 SETS
Detailed Product Description
Production Capacity: 40000-60000pcs/h Reamer Diameter: 750MM
 Pressure: 4.0 Mpa Moisture Content: 13~18 %
Vacuum Degree: ≤-0.092 Mpa Power: 450+200kw
Size: 9500×3100×3600   Weight: 48000KG
Origin: HEBEI
High Light:

JKY-75S Fly Ash Brick Making Machine

,

60000 pcs/h Fly Ash Brick Making Machine

,

60000 pcs/h Automatic Fly Ash Bricks Machine

JKY75S-4.0 Two-Stage Vacuum ExtruderAn Ideal Type Brick Machine With High Abrasion Resistance And Stability



1, Product features:


This machine is made by full steel structure .


The main parts adopts high wear- resistance alloy casting and high frequency heat treatment technology. Its performance is stability, the material can be coal gangue, shale, fly ash, industrial residue. It is the ideal equipment for the fired bricks



2, Technical parameters:



Date Units of meas JKY75S-4.0
Production capacity Pieces/h 40000-55000
Reamer diameter mm 750
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 450+200
Size mm 9500×3100×3600
Weight kg 48000




3 Product Description





The JKY/JKB/JKR series clay brick making machine are advanced twin-stage vacuum extruder which draw lessons from the developed domestic, abroad experiences and design to make. They are mainly made of high quality steel with features of reasonable structure, sturdy and durability. And they have strong applicability, high efficiency, easy maintenance but lower energy consumption.



The machine’s axles, gear and other important spare parts extend the service life which are made by carbon steel and alloy steel through modulation or quench’s heat treatment procession. The dialing mud plate’s transfer and material level control are fixed with protecting device which improves the plant efficiency of breakdown maintenance.



And it also makes sure that it can’t easily damage the main spare parts during usage. The reamer adopt the floating shaft structure which can eliminate and reduce the machine’s shacking and rocking times because of curve in principal axle after long time



The blade of the reamer adopt the wear-resistant metallic material coating technology which make its life is four times to seven times longer than the common reamer. The lead has the function of light pressure delivery and high pressure extrusion which make the machine save energy from fifteen percent to thirty percent.



They are applicable for the production of high-rate hollow bricks with the materials of coal gangue, shale, high-volume fly-ash, urban construction waste, gangue waste,



4.Functions



It is appliable for the production of solid brick , load-bearing perforated brick , and hight-rate hollow brick with the material of coal gangue , shale , high-volume fly ash , urban construction waste , gangue waste , inferior soil





5.Product Advantage



The blade of the reamer adopt the wear-resistant metallic material coating technology which make its life is four times to seven times longer than the common reamer. The lead has the function of light pressure delivery and high pressure extrusion which make the machine save energy from fifteen percent to thirty percent.



They are applicable for the production of high-rate hollow bricks with the materials of coal gangue, shale, high-volume fly-ash, urban construction waste, gangue waste,



JKY-75S High Abrasion Resistance Fly Ash Brick Making Machine 0JKY-75S High Abrasion Resistance Fly Ash Brick Making Machine 1
