CANGZHOU BOHAI BRICK MACHINERY CO.,LTD
Home ProductsFly Ash Brick Making Machine

JKY-75 Steel Structure Two Stage Vacuum Extruder Machine

I'm Online Chat Now

JKY-75 Steel Structure Two Stage Vacuum Extruder Machine

JKY-75 Steel Structure Two Stage Vacuum Extruder Machine
JKY-75 Steel Structure Two Stage Vacuum Extruder Machine JKY-75 Steel Structure Two Stage Vacuum Extruder Machine JKY-75 Steel Structure Two Stage Vacuum Extruder Machine JKY-75 Steel Structure Two Stage Vacuum Extruder Machine

Large Image :  JKY-75 Steel Structure Two Stage Vacuum Extruder Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001
Model Number: JKY-75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 SETS
Detailed Product Description
Production Capacity: 35000-50000pcs/h Reamer Diameter: 750MM
 Pressure: 4.0 Mpa Moisture Content: 13~18 %
Vacuum Degree: ≤-0.092 Mpa Power: 350+132kw
Size: 8500×3000×3450   Weight: 36000KG
Origin: HEBEI
High Light:

JKY-75 Two stage Vacuum Extruder

,

50000 pcs/h Two stage Vacuum Extruder

,

JKY-75 Clay Brick Extruder Machine

JKY75-4.0 Two-stage Vacuum Extruder A new type brick making equipment with high wear resistance and stability



1, Product features


Two-stage vacuum extruder is a new type brick-making equipment, designed and manufactured by our company, benefiting from advanced technology both at home and abroad.


It is of whole steel structure with main parts cast of high-abrasion alloy by high frequency heat treatment technology. Fearturing reasonable structure, heavy-duty, energy saving, high efficiency and easy maintenance, it is more suitalbe for manufacturing cell bricks and solid bricks with shale, coal gangue and fly ash.



2,Technical parameters



Date Units of meas JKY75-4.0
Production capacity Pieces/h 35000-50000
Reamer diameter mm 750
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 350+132
Size mm 8500×3000×3450
Weight kg 36000


3 Product Description



This brick-making machine is all steel structure. The main parts are made of high wear resistant alloy casting and high frequency heat treatment. Stable performance, raw materials can be clay, coal gangue, shale, fly ash, industrial waste residue. It is an ideal equipment for producing sintered brick



This vacuum extruder is all-steel. The main parts are made of high wear resistant alloy casting and high frequency heat treatment. Stable performance, raw materials can be clay, coal gangue, shale, fly ash, industrial waste residue. It is an ideal equipment for producing sintered brick.



This rigid-plastic vacuum extruder is all-steel. The main parts are made of high wear resistant alloy casting and high frequency heat treatment. Stable performance, raw materials can be clay, coal gangue, shale, fly ash, industrial waste residue. It is an ideal equipment for producing sintered brick.



4. Functions



It is appliable for the production of solid brick , load-bearing perforated brick , and hight-rate hollow brick with the material of coal gangue , shale , high-volume fly ash , urban construction waste , gangue waste , inferior soil



The machine’s axles, gear and other important spare parts extend the service life which are made by carbon steel and alloy steel through modulation or quench’s heat treatment procession. The dialing mud plate’s transfer and material level control are fixed with protecting device which improves the plant efficiency of breakdown maintenance.



And it also makes sure that it can’t easily damage the main spare parts during usage. The reamer adopt the floating shaft structure which can eliminate and reduce the machine’s shacking and rocking times because of curve in principal axle after long time usage.JKY/JKB/JKR



5. Product Advantage



The blade of the reamer adopt the wear-resistant metallic material coating technology which make its life is four times to seven times longer than the common reamer. The lead has the function of light pressure delivery and high pressure extrusion which make the machine save energy from fifteen percent to thirty percent.



They are applicable for the production of high-rate hollow bricks with the materials of coal gangue, shale, high-volume fly-ash, urban construction waste, gangue waste,

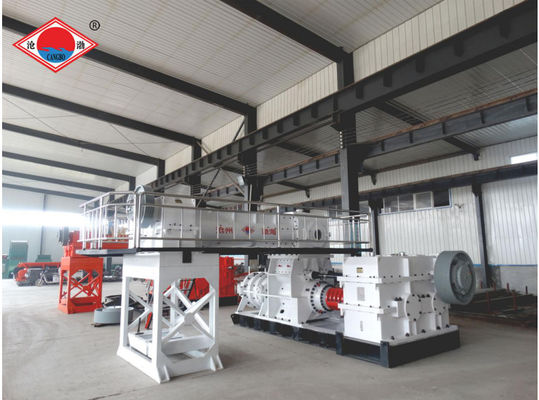

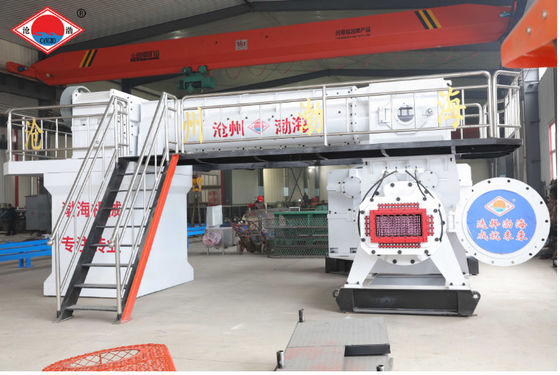

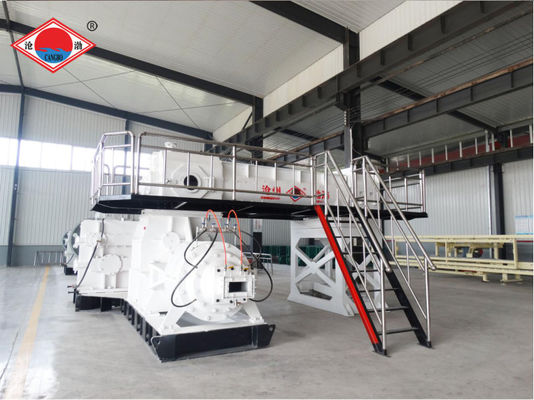

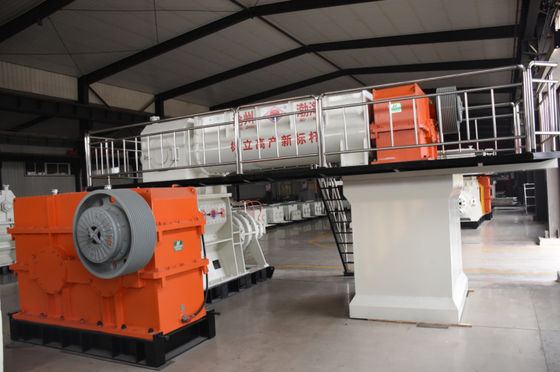

JKY-75 Steel Structure Two Stage Vacuum Extruder Machine 0JKY-75 Steel Structure Two Stage Vacuum Extruder Machine 1
