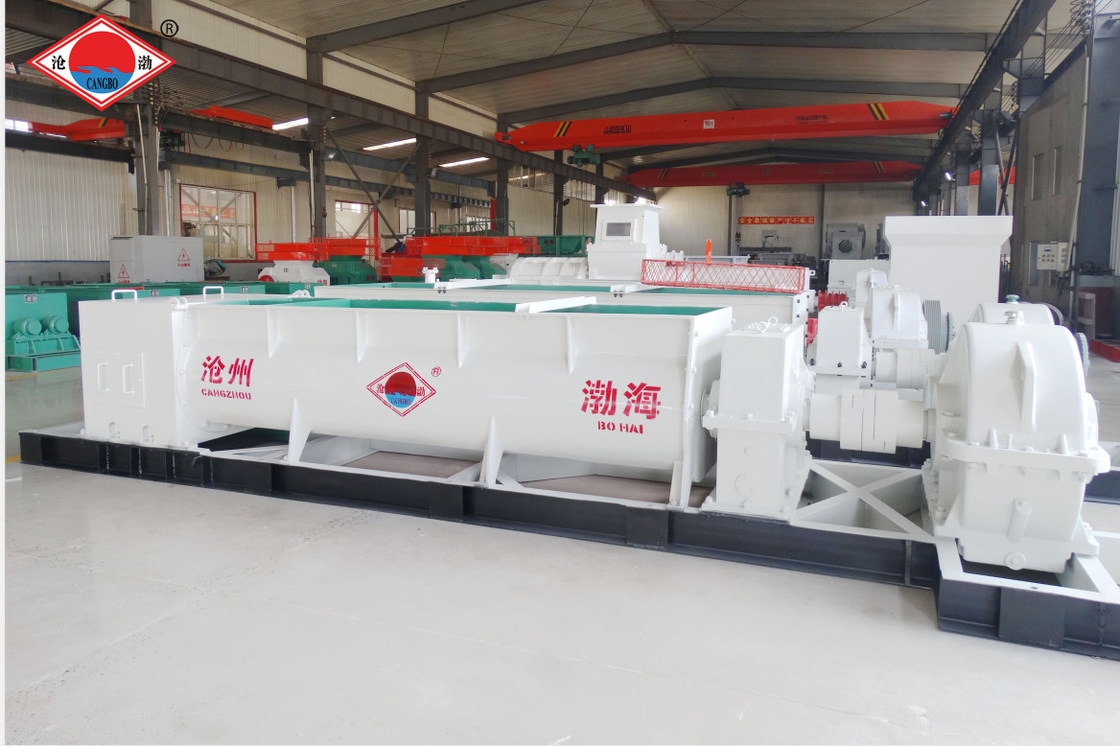

Welded Steel High Output Automatic Clay Mixer Machine

I'm Online Chat Now

Welded Steel High Output Automatic Clay Mixer Machine

Welded Steel High Output Automatic Clay Mixer Machine
Welded Steel High Output Automatic Clay Mixer Machine

Large Image :  Welded Steel High Output Automatic Clay Mixer Machine

Product Details:
Place of Origin: CHINA
Brand Name: BOHAI
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD
Packaging Details: CONTAINER
Delivery Time: 620DAYS
Payment Terms: T/T
Supply Ability: 50SETS
Detailed Product Description
Model: SJJ43×300 Production Capacity: 50-80 (M3/h)
Agitator Shaft Speed: 40 R/min Overall Dimension: 7500×1500×1000 (mm)
Mixing Diameter: 680(mm) Machine Type: Automatic
Warranty: 1 Year Raw Material: Clay , Coal Gangue, Shale And Fly Ash
High Light:

45r/min Clay Mixer Machine

,

55kw Clay Mixer Machine

,

Double Shaft Clay Mixing Machine

CB- Dual-Axle Strong Clay Stirring Machine



Working Principle



Double shaft mixer uses two symmetrical spiral axis of the synchronous rotation, while conveying dry powder and other powdery material while adding water and stirring, even humidification of dry powdery material, so that the humidification material does not take dry ash will not seepage Water droplets, so as to facilitate the loading and unloading of humidified ash and other conveying equipment, and is mainly applicable to the occasions where the wet loading of fly ash or the like in thermal power plants, mines and the like is carried out.





Date Units of meas SJ400*50
Production capacity M3/h 60-100
Agitator shaft speed r/min 38
Power kw 110
Overall dimension mm 7800×1650×1100
Mixing diameter mm 550



Date Units of meas SJ400*43
Production capacity M3/h 50-80
Agitator shaft speed r/min 40
Power kw 75
Overall dimension mm 7400×1550×1000
Mixing diameter mm 500



Date Units of meas SJ350*36
Production capacity M3/h 40-70
Agitator shaft speed r/min 45
Power kw 55
Overall dimension mm 6700×1450×950
Mixing diameter mm 450



Date Units of meas SJ300*36
Production capacity M3/h 40-70
Agitator shaft speed r/min 45
Power kw 45
Overall dimension mm 6000×1450×950
Mixing diameter mm 450
