| Model: | SJJ43×300 | Mixing Diameter: | 550(mm) |
|---|---|---|---|
| Overall Dimension: | 7800×1600×1100mm | Agitator Shaft Speed: | 38r/min |
| Machine Type: | Automatic | Warranty: | 1 Year |
| Production Capacity: | 60-100 (M3/h) | Raw Material: | Clay , Coal Gangue, Shale And Fly Ash |
| High Light: | 38r/min Double Shaft Mixer,132kw Double Shaft Mixer,100m³/h Double Shaft Mixer |
||

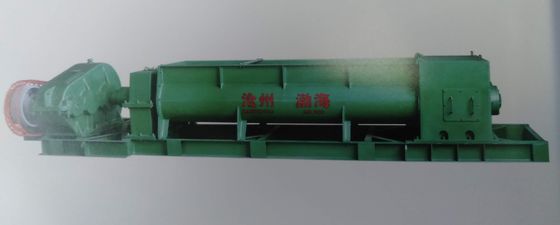

CB- Dual-Axle Strong Clay Stirring Machine
1.Product features:
It applies to raw material like clay, coal gangue, shale and fly ash, fully stirring and mixing the material with water to increase its plasticity.
2,Technical parameters:
| Date | Units of meas | SJJ43×300 |
| Production capacity | M3/h | 50-80 |
| Agitator shaft speed | r/min | 40 |
| Power | kw | 90 |
| Overall dimension | mm | 7500×1500×1000 |
| Mixing diameter | mm | 480 |
| Date | Units of meas | SJJ50*300 |
| Production capacity | M3/h | 60-100 |
| Agitator shaft speed | r/min | 38 |
| Power | kw | 132 |
| Overall dimension | mm | 7800×1600×1100 |
| Mixing diameter | mm | 550 |
