32000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer

I'm Online Chat Now

32000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer

32000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer
32000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer 32000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer 32000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer

Large Image :  32000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKY-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 10000SETS
Detailed Product Description
Production Name: Brick Making Machine Production Capacity(/h): 20000-32000
Moisture Content: 13-18 % Price: Negotiation
Delivery Time:: 20-45 Days Brand: Cangbo
Weight: 30000 Overall Dimension: 8600*2850*3300
Pressure: 4.0 Colour: Red
Vacuum Degree: -0.092 Power: 280+110
High Light:

32000pcs Red Clay Brick Making Machine

,

390kw Red Clay Brick Making Machine

,

390kw Red Clay Brick Machine

JKY90 /32000 Bricks Per Hour Red Clay Brick Making Machine With Dryer



1. Product features:



 The reducer adopts hard-toothed gears, and the clutch is a patented component. All treatments make the machine have a long service life and a reasonable design. The compact structure reduces energy consumption, and there is no shaking during the working process, even if the extruder It can also work without pressing the bolt.



2.



Date Units of meas JKY90-4.0
Production capacity Pieces/h 20000-32000
Reamer diameter mm 600
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 280+110
Size mm 8600×2850×3300
Weight kg 30000



3.Product Description



1.They are mainly used for the raw material of coal gangue,coal ash,shale,clay and so on



2.It is the ideal equipment for the production of various standard brick,hollow brick,irregular brick,high hole rate brick,etc.



4.Product Advantage



1). Full range of bricks:

This automatic brick making machine can produce solid, hollow and poriferous bricks of different shapes. You can produce different bricks by changing the mould attached to the mouth.



2). Durable.

Spare parts of this automatic brick making machine are made of wear-resistant steel which is dealt with quenching heat treatment and wear-resistant spray painting craft. The body of the machine is made of high quality carbon steel. The whole machine is durable and has a long working life.



3). High-quality bricks.

This automatic brick making machine has high extrusion pressure making the mud strip firm and low moisture content and the high vacuum degree decreasing the moisture content of the green bricks.



4). Large Capacity.

The capacity of this series of brick machine can reach 25000 pcs/h at most. It is used in mass production.



5). Less electric waste.

It uses end-flow coupling which can avoid useless vibration.

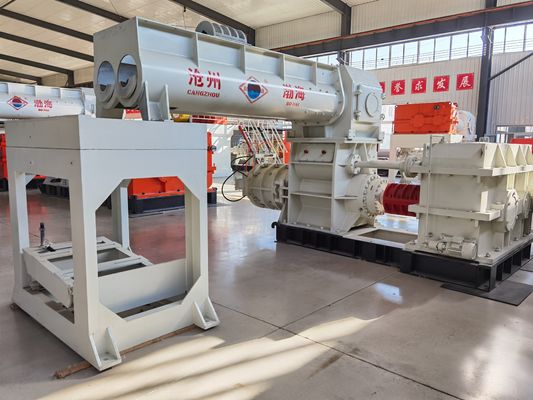

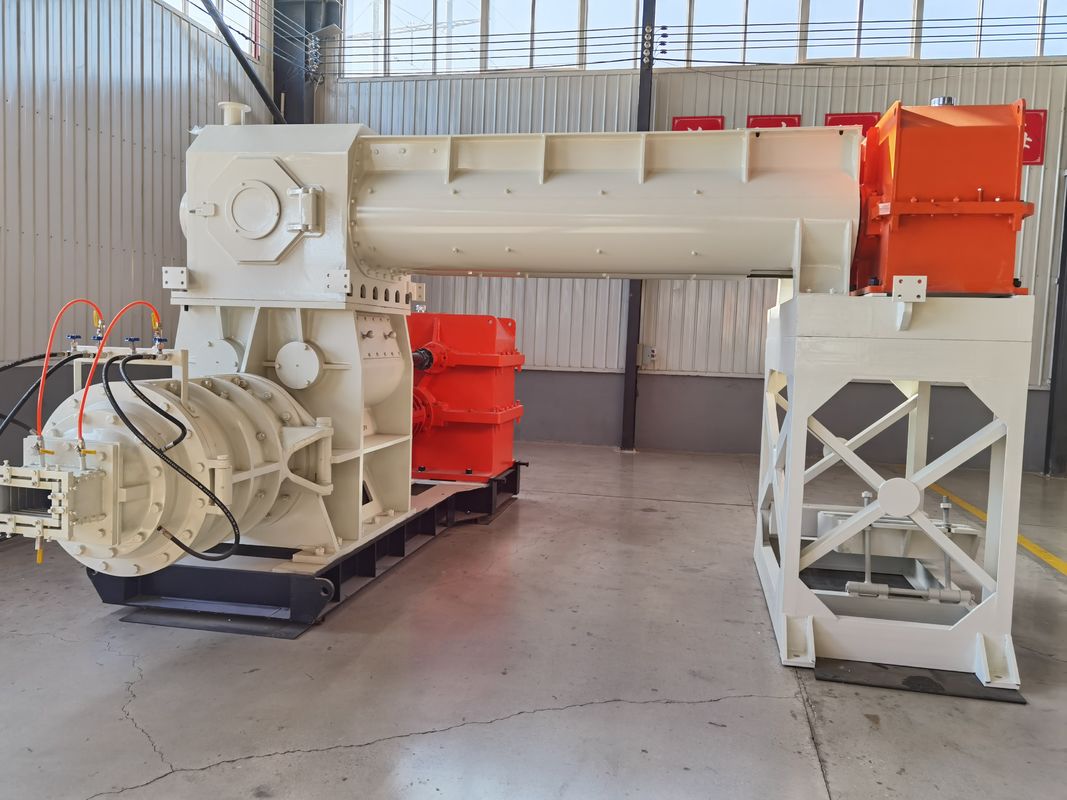

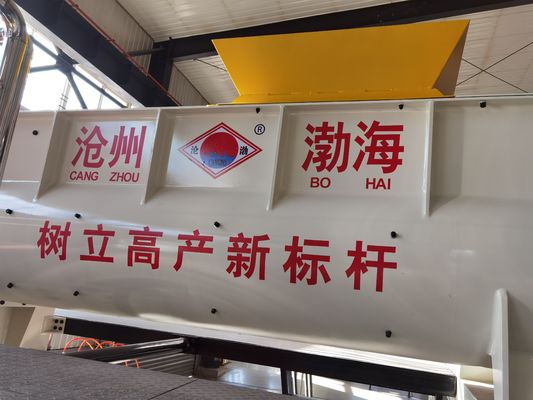

5.  Macine pictures



32000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer 032000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer 132000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer 232000pcs Per Hour 390kw Red Clay Brick Making Machine With Dryer 3
