JKY-100 Automatic Shale And Clay Brick Making Machine With Stirrer

I'm Online Chat Now

JKY-100 Automatic Shale And Clay Brick Making Machine With Stirrer

JKY-100 Automatic Shale And Clay Brick Making Machine With Stirrer
JKY-100 Automatic Shale And Clay Brick Making Machine With Stirrer JKY-100 Automatic Shale And Clay Brick Making Machine With Stirrer JKY-100 Automatic Shale And Clay Brick Making Machine With Stirrer JKY-100 Automatic Shale And Clay Brick Making Machine With Stirrer

Large Image :  JKY-100 Automatic Shale And Clay Brick Making Machine With Stirrer

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001
Model Number: JKY-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 50 SETS
Detailed Product Description
Type: Hollow Block And Brick Making Machine Processing:: Brick Production Line
Method: Vacuum Extruder Warranty: 2
 Production Capactyi: 16000-32000 Reamer Diameter: 750MM
 Moisture Content: 13~18 %  Vacuum Degree: ≤-0.092 Mpa
High Light:

JKY-100 Clay Brick Making Machine

,

Shale And Clay Brick Making Machine

,

Vacuum Extruder Clay Brick Making Machine

1.Product features:



The double-stage vacuum extruder is a new type of brick-making equipment designed and manufactured by our company. Integral steel structure, the main parts of high wear-resistant alloy cast from the high-frequency heat treatment process. Reasonable structure, heavy load, energy saving, high efficiency, easy maintenance, more suitable for shale, coal gangue, fly ash to make porous brick and solid brick.



2 . Techical parameter



Date Units of meas JKY55-4.0
Production capactyi Pieces/h 16000-32000
Reamer diameter mm 550
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 185+75
Size mm 6300×1600×2450
Weight kg 20000




3.Product Advantage



Automatic red clay brick machine is used to produce solid bricks and hollow bricks with great quantities of holes and large section in all size of hole style.It is applicable to many sorts of materials.

Its features are novel structure,advanced technology,high extrusive pressure,high production and high vacuum degree.It adopts pneumatic clutch to control.It is sensitive,convenient and reliable.
Raw materials such as soil purification through vacuum after entering the fuel tank from the lower auger extrusion molding, when the machine with different models, can produce various specifications of the porous brick.

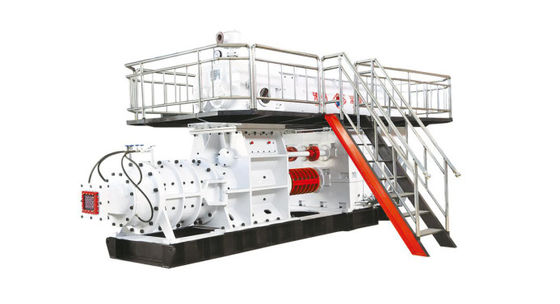

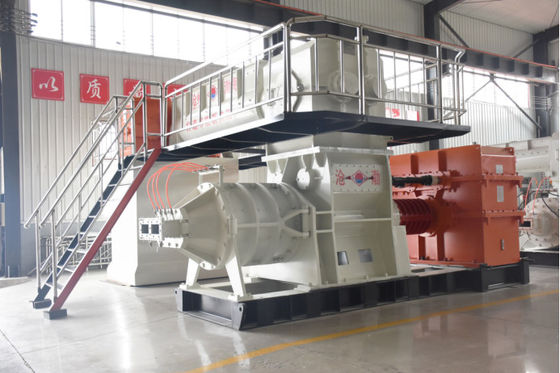

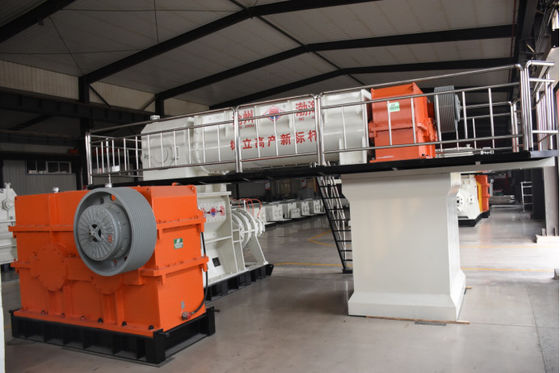

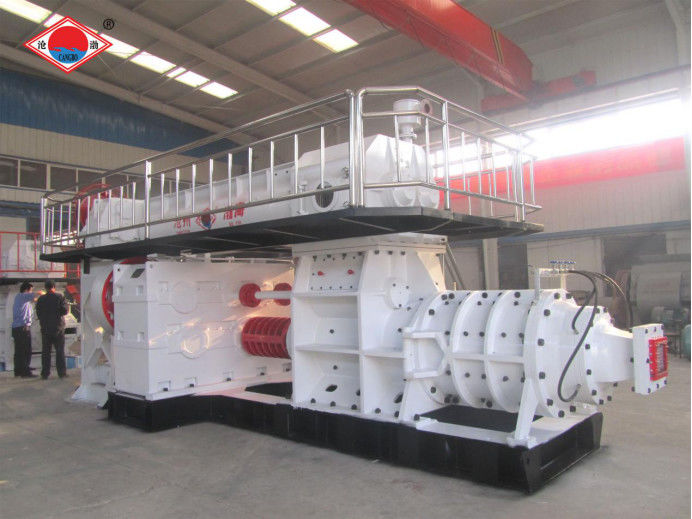

4.Machine picture





JKY-100 Automatic Shale And Clay Brick Making Machine With Stirrer 0
