72time/H 22kw Brick Stacking Machine

I'm Online Chat Now

72time/H 22kw Brick Stacking Machine

72time/H 22kw Brick Stacking Machine
72time/H 22kw Brick Stacking Machine 72time/H 22kw Brick Stacking Machine 72time/H 22kw Brick Stacking Machine

Large Image :  72time/H 22kw Brick Stacking Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: CBS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 SETS
Detailed Product Description
Model Number: QP350 Supply Ability:: 20-45 Days
Condition: New Certification: ISO9001:2008,CE,CQC,BIS
Overall Dimension: 11000×3500×6500 Yards Billet Capacity: 176-704
Stacking Machine Cycle: 25-50 Frequency: 72-144
High Light:

22kw brick stacking machine

,

72time/h brick stacking machine



High-precision and high-precision positioning can automatically pick up unburned bricks, transport and put down fully au



1,Product features:


Full-auto brick-stacking machine, adopting advanced servocontrol with high running accuracy and precise positioning, runs smoothly and steadily, which can automatically pick up the unburnt bricks, transport and put down them. The stacking style can be customised, suitalbe for all kinds of section tunnel kilns.



Automatic Stacker, using advanced servo control, high accuracy, accurate positioning, smooth operation, can automatically pick up, transport and put down the unburned bricks. Stacking method can be customized according to customer requirements, applicable to various types of tunnel kiln.



2.Product Describe



Auto brick stacking machine consist of special strip cutting machine, brick cutting machine, brick parting machine, brick carrying machine, moving system, up and down system, rotating system, hydraulic system and electrical system Hollow blocks, solid standard bricks, blind-hole bricks.



Automatic stacking machine adopts advanced PLC centralized control Security configuration logic control, production procedures and fault diagnosis display.



It can satisfy all the needs of the market, and it can low the investment risk for the user in the largest extent.



3 Techical parameter

2,Technical parameters:

Date Units of meas CBS码坯机
Driving method   Servo + frequency conversion
Frequency time/h 72-144
Stacking machine cycle S 25-50
Yards billet capacity Pieces/times 176-704
Production capacity pieces/h 12000-60000
Power kw 15+4+3
Overall dimension mm 11000×3500×6500





4. Machine advanced



The full-auto brick-cutting &setting production system, adopting advanced servo-control, PLC control system with high running accuracy, easy operation, stable transportation, flexible pile-setting, small floor space demanding, can dramatically lower the user’s operating cost in the long run. Also the differnet piling formats can be customized.



AUTOMATIC BRICK-CUTTING MOLDING PRODUCTION SYSTEM, bar-cutting robot, bar-cutting machine using advanced servo control, PLC control system, high accuracy, easy operation, stable transportation, flexible stacking, small footprint, in the long run can greatly reduce the user's operating costs. There are also different piling formats that can be customized.




5. Machine picture

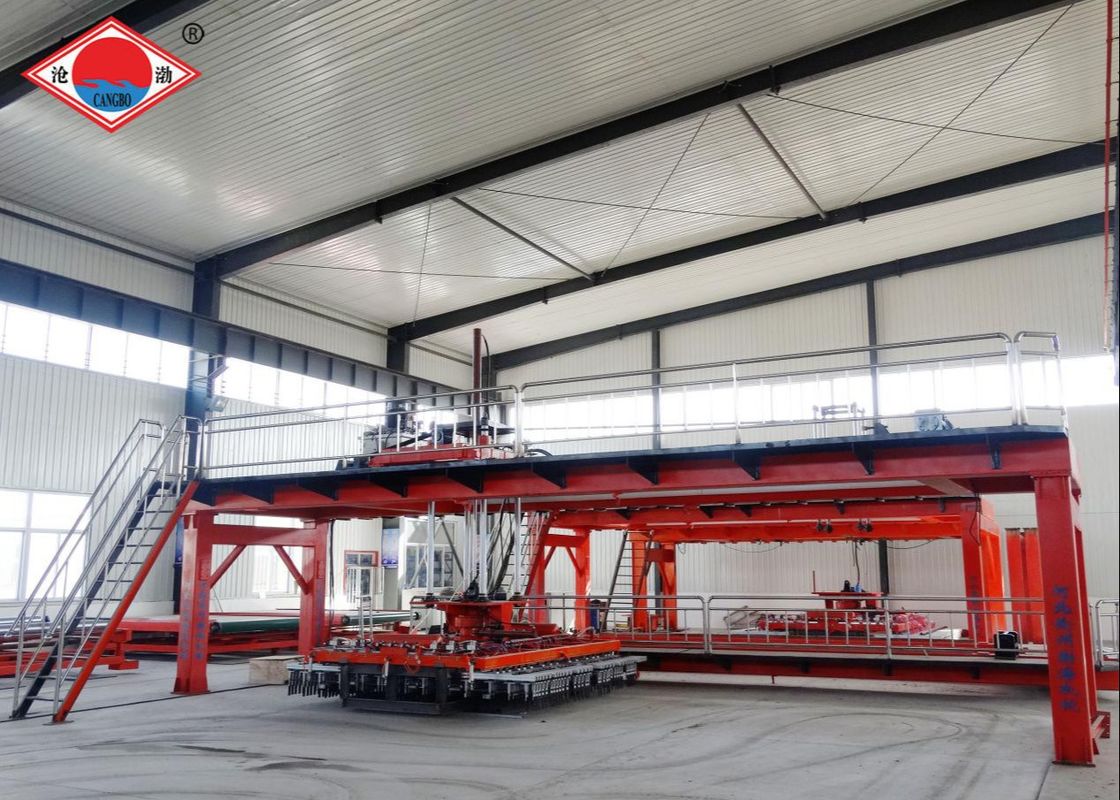

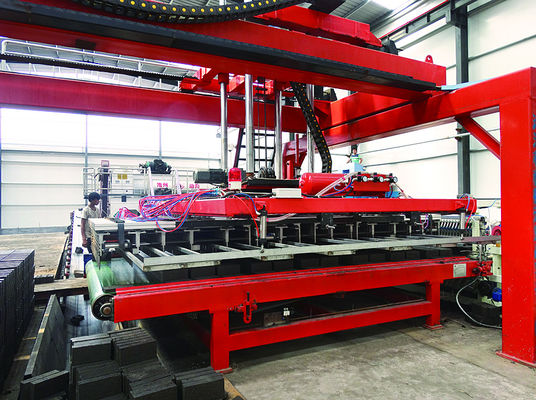

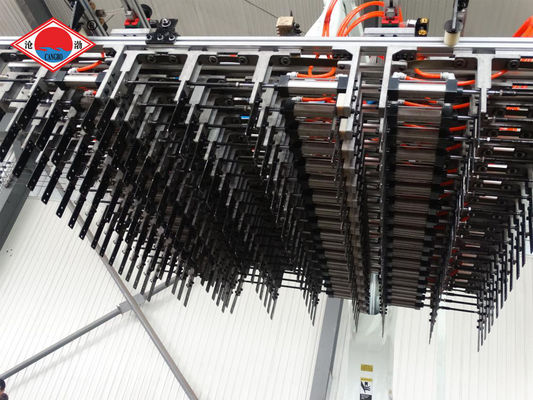

72time/H 22kw Brick Stacking Machine 072time/H 22kw Brick Stacking Machine 172time/H 22kw Brick Stacking Machine 2
