Large Double Cutting Strip Automatic Brick Cutting Machine

I'm Online Chat Now

Large Double Cutting Strip Automatic Brick Cutting Machine

Large Double Cutting Strip Automatic Brick Cutting Machine
Large Double Cutting Strip Automatic Brick Cutting Machine Large Double Cutting Strip Automatic Brick Cutting Machine Large Double Cutting Strip Automatic Brick Cutting Machine Large Double Cutting Strip Automatic Brick Cutting Machine

Large Image :  Large Double Cutting Strip Automatic Brick Cutting Machine

Product Details:
Place of Origin: HEBEI
Brand Name: CB
Certification: ISO9001
Model Number: 70S / 75S
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60days
Payment Terms: T/T, L/C
Supply Ability: 50SETS
Detailed Product Description
Power: 24kw Cutting Frequency: 10-18
Productive Capacity: 20000-70000 Dimensions: 11000X3500X1700
Brand: CB Colour: RED
High Light:

24kw Automatic Brick Cutting Machine

,

70000 pcs/h Automatic Brick Cutting Machine

,

75S Automatic Brick Cutting Machine

High Capacity Large Double Cutting Strip Automatic Brick Cutting Machine



1 Product features



 Double mud strip double direction cutting machine is specially designed for 60, 75 and above large size main machine, high production capacity, all hard plastic production line, with strong thrust and high structural strength. It is suitable for standard brick, porous brick and large block with shale and gangue as raw materials.



Cutting frequency ≤ 18 times / min, cutting height up to 260mm, cutting mud strip length: 1750-2500mm



2 Technical parameters



Parameter unit of measurement double mud strip bi-directional cutting machine
Total power 24 kw
Cutting frequency times / minute 10-18
Production capacity block (discount standard) / hour 20000-70000
Overall dimension mm 11000*3500*1700





3  Product description



Double Mud Bar two-way billet cutter is designed for 60,75 and above large-scale mainframe design, high production capacity, all-hard plastic production line, strong thrust, high structural strength. It is suitable for standard brick, porous brick and large block with shale and coal gangue as raw materials. Cutting Frequency ≤18 / Min, cutting height 260mm, cutting mud strip length 1750-2500mm



The automatic strip cutting and blank cutting system is matched with automatic production line could realize unmanned operation.

Our production equipments, highly efficient energy-saving, compact structure, automation, simple maintenance, stable and reliable, low-cost advantages, which can satisfy the different needs of the large, medium and small-scale brick-making manufacturers; are clay, shale, coal gangue, fly ash and other raw materials ideal brick-making equipment At the same time.

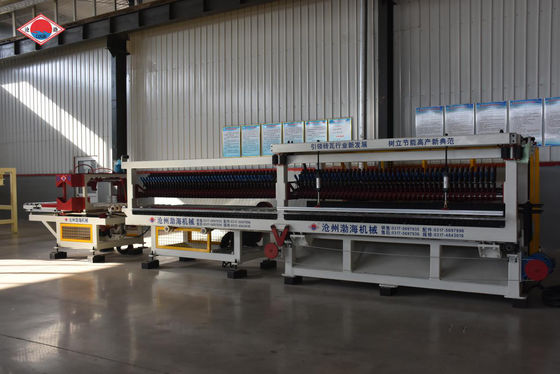

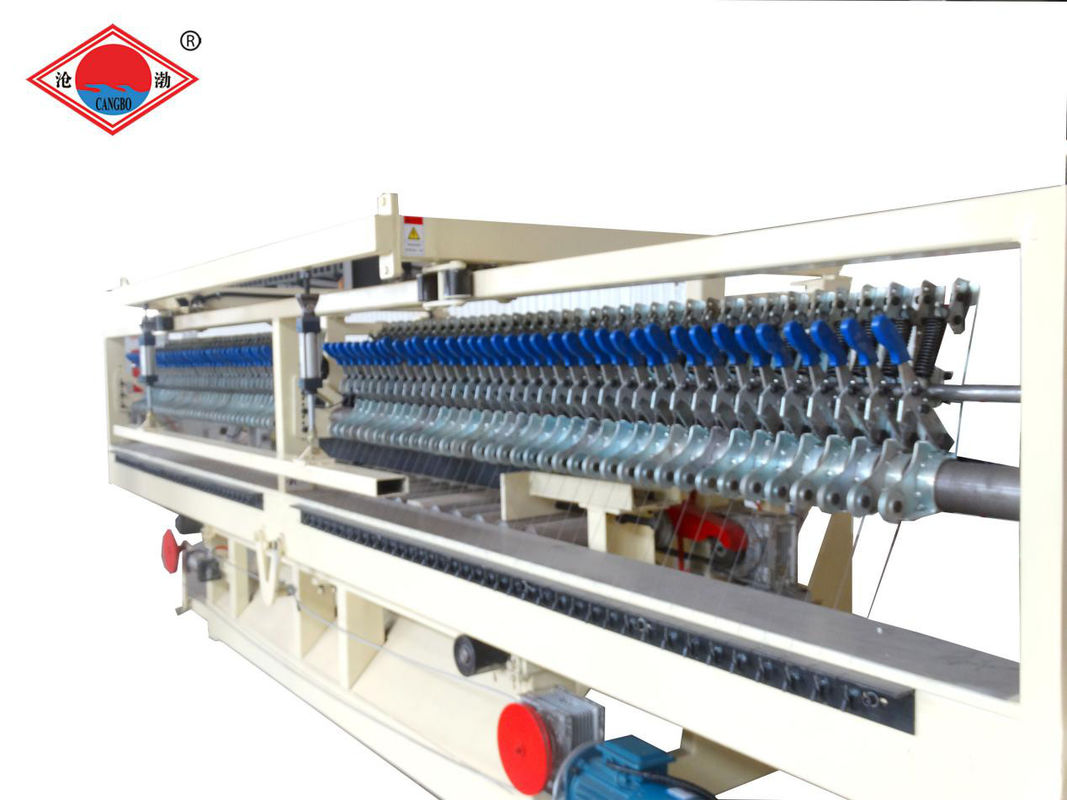

4 Product Picture



4Large Double Cutting Strip Automatic Brick Cutting Machine 0Large Double Cutting Strip Automatic Brick Cutting Machine 1
