JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine

I'm Online Chat Now

JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine

JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine
JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine

Large Image :  JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001
Model Number: JKY-90 K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 50 SETS
Detailed Product Description
Name: Fully Automatic Clay Brick Making Machine Method: Vacuum Extruder
Automatic: Yes Production Capacity: 40000-55000 PCS/MIN
Reamer Diameter: 750MM
High Light:

JKY-90K Auto Brick Making Machine

,

Vacuum Extruder Auto Brick Making Machine

,

Red Sintered Auto Brick Making Machine

JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine



1. Product features:


The machine extrusion pressure, high vacuum, dense out of the mud, the appearance of neat. Fully suitable for a code burning process requirements, high productivity, low molding water content, reducing energy consumption and loss in production. Is the production of all gangue, high volume fly ash, shale and inferior sand brick ideal equipment.



2 . Techical parameter

Date Units of meas JKY90-4.0
Production capacity Pieces/h 20000-32000
Reamer diameter mm 600
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 280+110
Size mm 8600×2850×3300
Weight kg 30000


3 . Functions



It is appliable for the production of solid brick , load-bearing perforated brick , and hight-rate hollow brick with the material of coal gangue , shale , high-volume fly ash , urban construction waste , gangue waste , inferior soil .



4. Specifications



1) Reasonable structure
2) High pressure extrude
3) Trowel with wear-resistance metal spray
4) Optional install
5) Stability

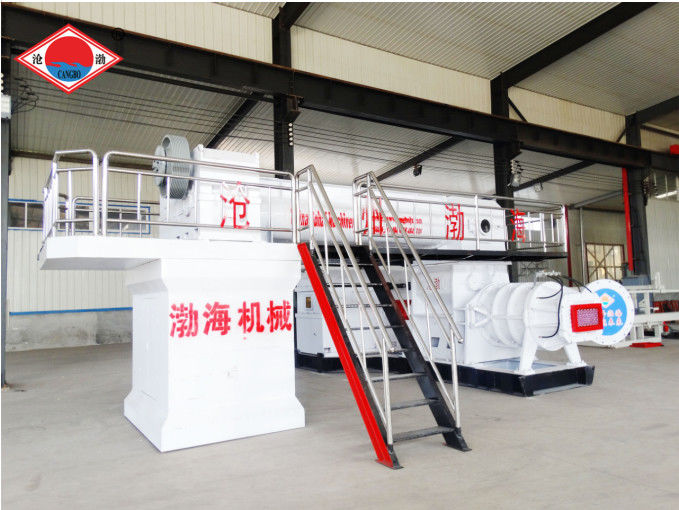

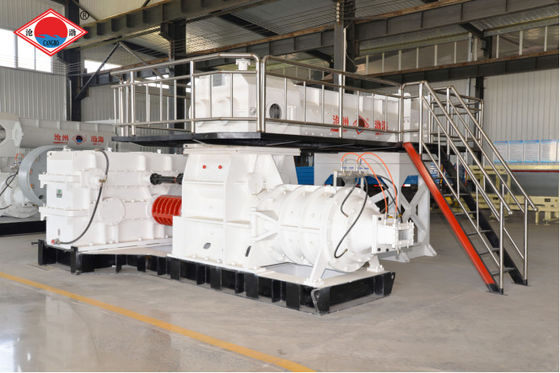

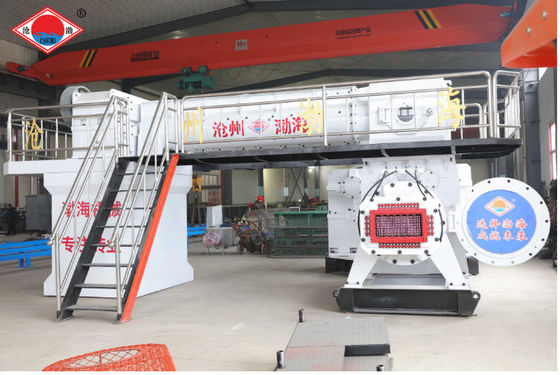

5. Machine pics



JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine 0JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine 1JKY-90K Vacuum Extruder Red Sintered Auto Brick Making Machine 2
