Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | HEBEI,CHINA | Automatic: | Yes |
|---|---|---|---|
| Production Capacity: | 20000-32000pcs/h | Reamer Diameter: | 600MM |
| Material:: | Steel | Delivery Time: | 20-45 Days |
| Price: | Negotiation | Moisture Content: | 13～18 % |
| High Light: | Vacuum Extruder Clay Brick Making Machine,JKY-90B Clay Brick Making Machine,32000pcs/h Clay Brick Making Machine |
||
JKY-90B Vacuum Extruder Automatic Red Soil Brick Making Machine
1. Product features:
Full-auto brick-stacking machine, adopting advanced servocontrol with high running accuracy and precise positioning, runs smoothly and steadily, which can automatically pick up the unburnt bricks, transport and put down them. The stacking style can be customised, suitalbe for all kinds of section tunnel
2 . Techical parameter
| Date | Units of meas | JKY90-4.0 |
| Production capacity | Pieces/h | 20000-32000 |
| Reamer diameter | mm | 600 |
| Pressure | Mpa | 4.0 |
| Moisture content | % | 13～18 |
| Vacuum degree | Mpa | ≤-0.092 |
| Power | kw | 280+110 |
| Size | mm | 8600×2850×3300 |
| Weight | kg | 30000 |
Product Describe
This machine is made of fixed beam, moveable frame, jacking system, grippers, gripper rotating device, air-operated system, servo system and PLC system, usually works together with raw brick grouping machine, used for gripping a group of green bricks from brick butting machine to tunnel kiln or rotary kiln drying car, to realize fully automatic production of starndard brick, hollow brick and perforated brick.
Feature
- Vertical truss beam structure, larger load and stability than horizontal beam
- Servo system, more steady, highly automatic
- Fast speed, high efficiency, big capacity
- Suitable for all kinds of bricks
- National Patent Product of brick making machine

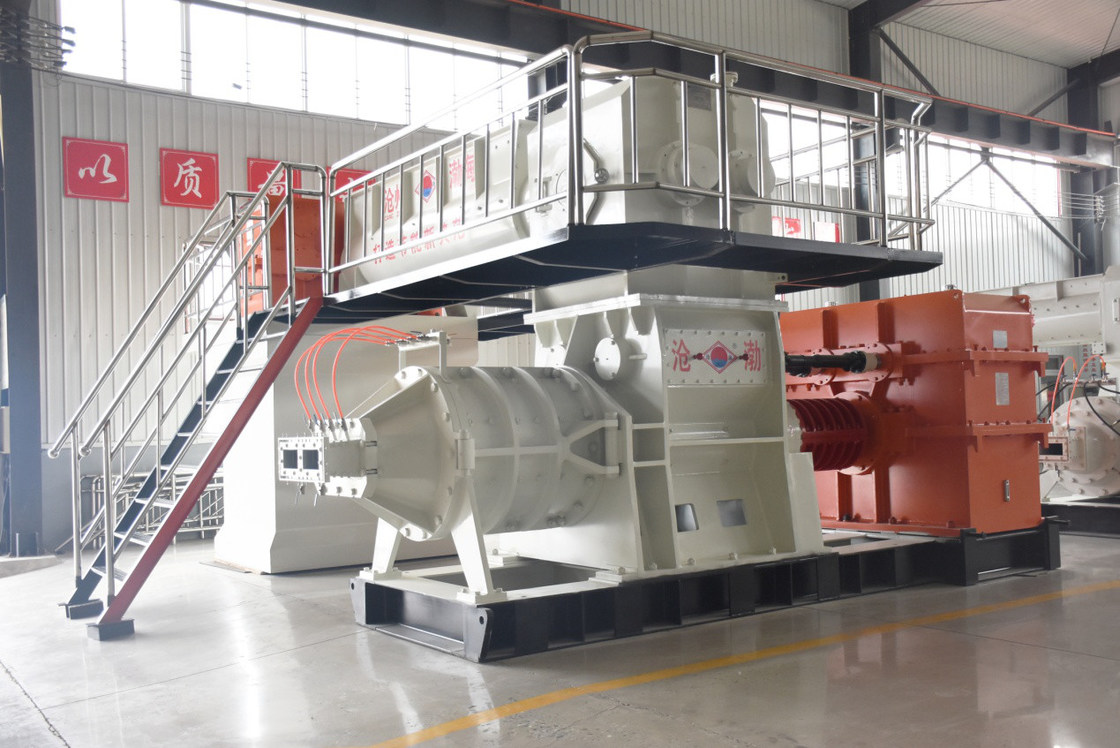

5. Machine picture
