Heavy Duty Double Mud Strip Automatic Brick Cutting Machine

I'm Online Chat Now

Heavy Duty Double Mud Strip Automatic Brick Cutting Machine

Heavy Duty Double Mud Strip Automatic Brick Cutting Machine
Heavy Duty Double Mud Strip Automatic Brick Cutting Machine Heavy Duty Double Mud Strip Automatic Brick Cutting Machine Heavy Duty Double Mud Strip Automatic Brick Cutting Machine

Large Image :  Heavy Duty Double Mud Strip Automatic Brick Cutting Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 SETS
Detailed Product Description
Material: Steel Motor Power: 4-1.5kw
Feature: High Productivity Capacity: 27pcs/min
Brand Name: CB Automatic: YES
Color: Off-white, Blue Reamer Diameter: Adjustable
High Light:

27pcs/min Automatic Brick Cutting Machine

,

JKL Automatic Brick Cutting Machine

,

27pcs/min clay brick cutter

Heavy Duty Double Mud Strip Automatic Brick Cutting Machine



1 . Product details



This set of blank cutting machine and strip cutting machine is especially suitable for 50,55,60,70 and above large-scale brick-making machine, large capacity full hard die production line. Large thrust, high structural strength, suitable for shale, coal gangue, clay and other production standards, porous, large brick. Cutting Frequency ≤20 times per minute, cutting height 260 mm, cutting mud length 1750-2500 mm, especially suitable for 60,70 and above large-scale brick-making machine, high output full hard die production line. Large thrust, high structural strength, suitable for shale, coal gangue, clay and other production standards, porous, large brick. Cutting Frequency ≤18 / Min, cutting height 260mm, cutting mud length 1750-2500mm.





2. Techical parameter



Date Units of meas Double brick cutter
Power kw 14
Cutting frequency times/min 10-20
Production capacity pieces/h 20000-55000
Overall dimension mm 10000×3100×1600



3 . Machine advanced



large grade and firm structure, with full thrust, with the features of forming two large blocks for one time, with materials of shale, coal gangue, fly ash, hard and soft stripes of the clay.
Our production equipments, highly efficient energy-saving, compact structure, automation, simple maintenance, stable and reliable, low-cost advantages, which can satisfy the different needs of the large, medium and small-scale brick-making manufacturers; are clay, shale, coal gangue, fly ash and other raw materials ideal brick-making equipment At the same time, our factory can also provide users.

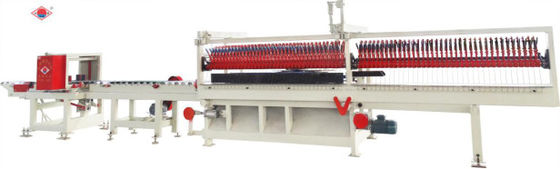

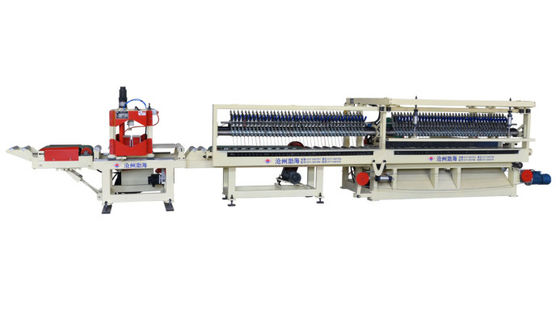

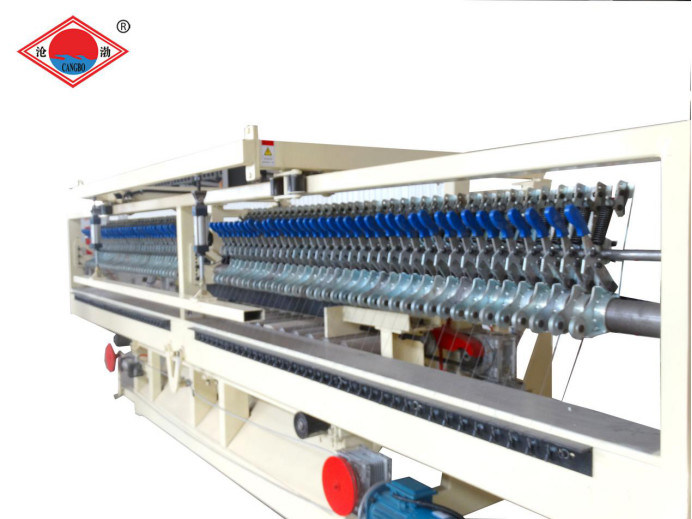

4. Machine picture



Heavy Duty Double Mud Strip Automatic Brick Cutting Machine 0Heavy Duty Double Mud Strip Automatic Brick Cutting Machine 1Heavy Duty Double Mud Strip Automatic Brick Cutting Machine 2
