Full Automatic Red Clay Brick Robot Stacking System

I'm Online Chat Now

Full Automatic Red Clay Brick Robot Stacking System

Full Automatic Red Clay Brick Robot Stacking System
Full Automatic Red Clay Brick Robot Stacking System Full Automatic Red Clay Brick Robot Stacking System Full Automatic Red Clay Brick Robot Stacking System Full Automatic Red Clay Brick Robot Stacking System

Large Image :  Full Automatic Red Clay Brick Robot Stacking System

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 50 SETS
Detailed Product Description
Machine Brand: CB Model: JKR
Driving Method: Servo Motor Frequency: 72-144 T/P
Stacking Machine Cycle: 25-50 S Yards Billet Capacity: 176-704 P /T
Power: 15+4+3 Kw Size: 1100*3500*6500
High Light:

Clay Brick Robot Stacking System

,

Servo Motor Robot Stacking System

,

JKR Robot Stacking System

Jkr-Full Automatic Red Clay Brick Robot Stacking Equirement System



1. Product features:



Full-auto brick-stacking machine, adopting advanced servocontrol with high running accuracy and precise positioning, runs smoothly and steadily, which can automatically pick up the unburnt bricks, transport and put down them. The stacking style can be customised, suitalbe for all kinds of section tunnel kilns.



2. Techcial parameter



Date Units of meas CBS stacker
Driving method   servo +frquency
Frequency time/h 72-144
Stacking machine cycle S 25-50
Yards billet capacity Pieces/times 176-704
Production capacity pieces/h 12000-60000
Power kw 15+4+3
Overall dimension mm 11000×3500×6500




3. Working Principle



Auto brick stacking machine consist of special strip cutting machine, brick cutting machine, brick parting machine, brick carrying machine, moving system, up and down system, rotating system, hydraulic system and electrical system Hollow blocks, solid standard bricks, blind-hole bricks.

Automatic stacking machine adopts advanced PLC centralized control Security configuration logic control, production procedures and fault diagnosis display.

It can satisfy all the needs of the market, and it can low the investment risk for the user in the largest extent.

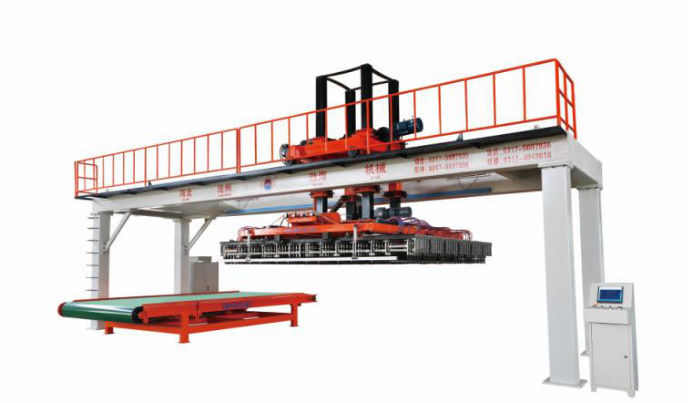

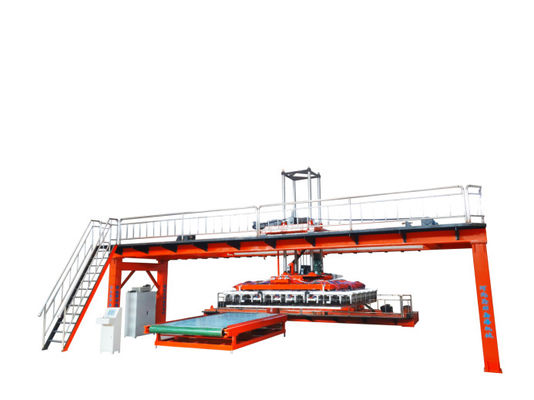

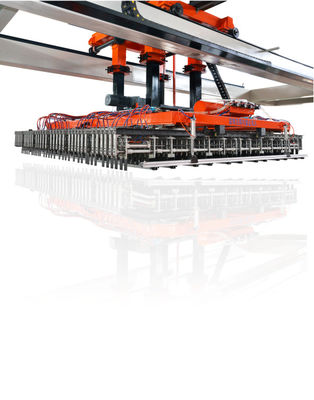

4. Machine pics



Full Automatic Red Clay Brick Robot Stacking System 0Full Automatic Red Clay Brick Robot Stacking System 1
