Hydraulic Pressure Automatic Robotic Palletizing System

I'm Online Chat Now

Hydraulic Pressure Automatic Robotic Palletizing System

Hydraulic Pressure Automatic Robotic Palletizing System
Hydraulic Pressure Automatic Robotic Palletizing System

Large Image :  Hydraulic Pressure Automatic Robotic Palletizing System

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 50 SETS
Detailed Product Description
Name: Robotic Palletizing System Model Number: JKR
Contol System: PLC High Ligh: Stacking Equipment, Auto Stacking Machine
Raw Material: Clay,shale,soil,coal,and So On
High Light:

Hydraulic Pressure Robotic Palletizing System

,

Automatic Robotic Palletizing System

,

Big Capacity Robotic Palletizing System

JKR-Mechanical Robot Arm Hydrulic Pressure Automatic Brick Stacking Machine System



1.  Product Describe



This machine is made of fixed beam, moveable frame, jacking system, grippers, gripper rotating device, air-operated system, servo system and PLC system, usually works together with raw brick grouping machine, used for gripping a group of green bricks from brick butting machine to tunnel kiln or rotary kiln drying car, to realize fully automatic production of starndard brick, hollow brick and perforated brick.



Feature


- Vertical truss beam structure, larger load and stability than horizontal beam
- Servo system, more steady, highly automatic
- Fast speed, high efficiency, big capacity
- Suitable for all kinds of bricks
- National Patent Product of brick making machine



2. Techcial parameter



Date Units of meas CBSstacker
Driving method   servo +frquency
Frequency time/h 72-144
Stacking machine cycle S 25-50
Yards billet capacity Pieces/times 176-704
Production capacity pieces/h 12000-60000
Power kw 15+4+3
Overall dimension mm 11000×3500×6500






Before-sale services


(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.


In-Sale services


(1) Quality control must be inspected strictly
(2) In accordance with the agreements stipulated in the contract


After-sale services


(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear

2. mishandling or improper operation

3. Incoming power supply fluctuation
4. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.

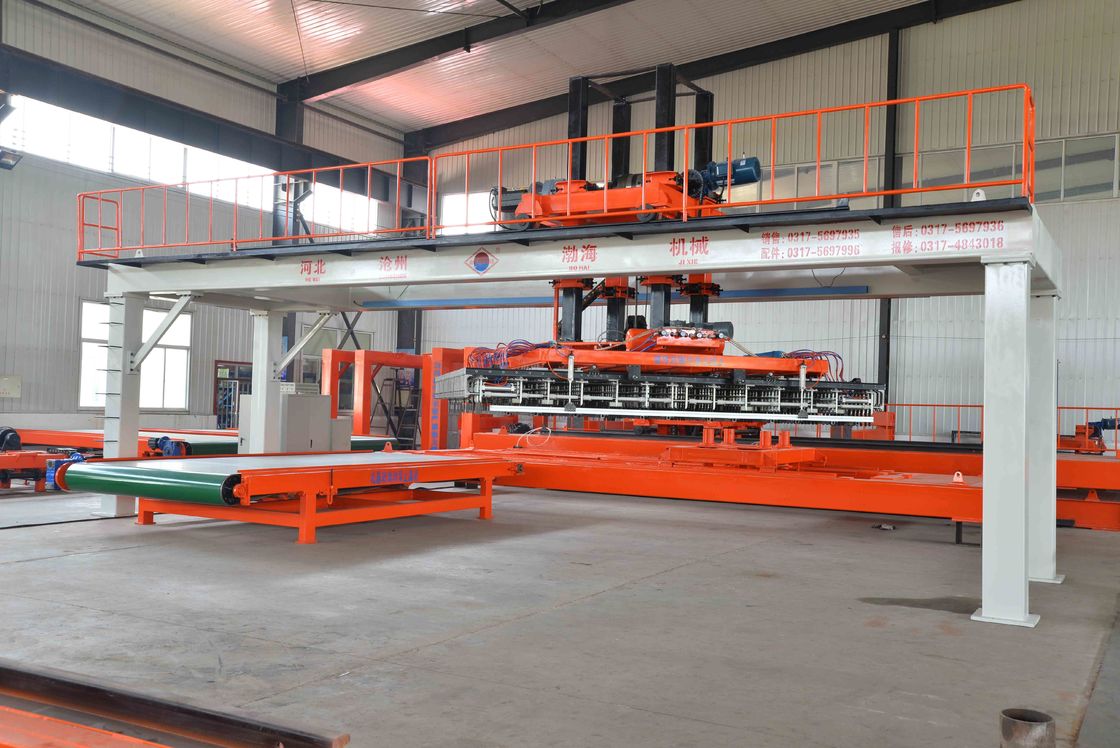

5.Machine pic



Hydraulic Pressure Automatic Robotic Palletizing System 0
