JKY-50B Red Clay And Soil Brick Making Machine

I'm Online Chat Now

JKY-50B Red Clay And Soil Brick Making Machine

JKY-50B   Red Clay And Soil Brick Making Machine
JKY-50B   Red Clay And Soil Brick Making Machine JKY-50B   Red Clay And Soil Brick Making Machine JKY-50B   Red Clay And Soil Brick Making Machine JKY-50B   Red Clay And Soil Brick Making Machine

Large Image :  JKY-50B Red Clay And Soil Brick Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKY-50 B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 50 SETS
Detailed Product Description
Production Name: Brick Making Machine Reamer Diamete: 500 Mm
Production Capacity(/h): 16000-32000 Moisture Content: 18-22 %
Price: Negotiation Packaging Details: Standard Packing For Export
Delivery Time:: 20-45 Days Brand: Cangbo
High Light:

JKY-50B Red Clay Brick Making Machine

,

32000pcs/h Soil Brick Making Machine

,

20000KG Soil Brick Making Machine

JKY-50B Red Clay And Soil Brick Making Machine



1. Product features:



The series host hig hquality steel plate welding structure, the main components of both quenching and tempering treatment, compact and practical, working stability, low power consumption for small factory or a power vacuum into restricted areas of major product machine.



2 . Techical parameter



Date Units of meas JKY50 B -4.0
Production capactyi Pieces/h 16000-32000
Reamer diameter mm 550
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 185+75
Size mm 6300×1600×2450
Weight kg 20000




3 .They are mainly used for the raw material of coal gangue,coal ash,shale,clay and so on.It is the ideal equipment for the production of various standard brick,hollow brick,irregular brick,high hole rate brick,etc.



4 .The main frames of the vacuum extruder machine are welded by using high-quality steel and have the features of low cost,reliable perfromance,rational structure,solid and durable properties,strong adaptability,easy to operate,low energy consumption,high capacity, long service life and easy to maintain and so on.



5. . Machine pictures

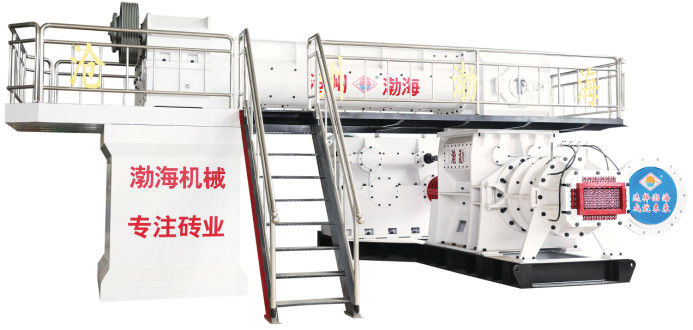

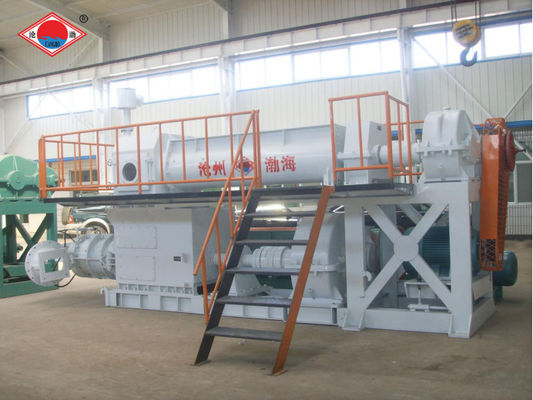

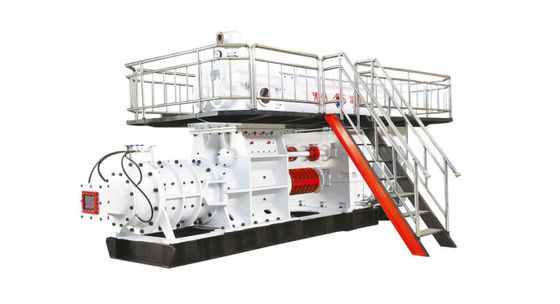

JKY-50B   Red Clay And Soil Brick Making Machine 0

JKY-50B   Red Clay And Soil Brick Making Machine 1

7. is the raw material for making bricks?
For example, clay, coal gangue, shale, fly ash
2. Do you have testing report of raw material?
a. YES—it should include of physical and chemical performance. Please send us for reference
b. NO—please send us at least 15KG raw material to our lab for testing.
3. What is the brick size?
For example, 9”x4”x3”inch (Indian standard brick size)
4. What is the capacity of bricks per day (tons or pieces)
100,000 pieces
150,000 pieces
200,000 pieces
5. What is the fuel for burning bricks and its calorific value?
For example, coal, natural gas, diesel, heavy oil
6. What kind of kiln type you prefer to?
a. Tunnel kiln
(automatic control, low energy consumption, but high investment)
b. Hoffman kiln
(bad working conditions, high energy consumption, environment pollution, but low investment)
7. What is the automatic level?
a. bricks setting by manual
b. bricks setting by machine
8. How about the Land condition? Including of :
a. Square area
b. Satellite map with boundary
c. location and surrounding conditions.
