Product Details:
Payment & Shipping Terms:
|
| Name: | Double Shaft Mixer | Minimum Order Quantity: | 1 Pc |
|---|---|---|---|
| Price: | Negotiation | Raw Material: | Shale,Clay,And Others |
| Warranty: | 1 Year | Brand Name: | CB |
| Processing:: | Brick Molding Machine | Weight:: | Different According T The Model |
| Frequency: | 72-144 | Stacking Machine Cycle: | 25-50 |
| Production Capacity: | 120000-60000 | Overall Dimension: | 11000×3500×6500 |
| Driving Method: | Opportunity + Frequency Conversion | ||
| High Light: | 110kw Box Feeder Machine,ce box feeder machine |
||
110kw100 cubic meters per hour blue Box Feeder Machine
1. Product features:
The machine has the function of cured clay,we can add the water into the material,stirr and mixi to impreve plasticitg.
2. Techical parameter:
| Date | Units of meas | SJ400*50 |
| Production capacity | M3/h | 60-100 |
| Agitator shaft speed | r/min | 38 |
| Power | kw | 110 |
| Overall dimension | mm | 7800×1650×1100 |
| Mixing diameter | mm | 550 |
| Date | Units of meas | SJ400*43 |
| Production capacity | M3/h | 50-80 |
| Agitator shaft speed | r/min | 40 |
| Power | kw | 75 |
| Overall dimension | mm | 7400×1550×1000 |
| Mixing diameter | mm | 500 |
| Date | Units of meas | SJ350*36 |
| Production capacity | M3/h | 40-70 |
| Agitator shaft speed | r/min | 45 |
| Power | kw | 55 |
| Overall dimension | mm | 6700×1450×950 |
| Mixing diameter | mm | 450 |
| Date | Units of meas | SJ300*36 |
| Production capacity | M3/h | 40-70 |
| Agitator shaft speed | r/min | 45 |
| Power | kw | 45 |
| Overall dimension | mm | 6000×1450×950 |
| Mixing diameter | mm | 450 |
4.Pruduct Description
Double shaft mixer uses two symmetrical spiral axis of the synchronous rotation, while conveying dry powder and other powdery material while adding water and stirring, uniform humidification of dry powdery material, so that the humidification material does not take dry ash will not seepage The purpose of water droplets, so as to facilitate wet loading and transportation of ash loading or transfer to other conveying equipment. Mainly used in thermal power plants, brick, mining and other industries fly ash or similar materials wet loading occasions.

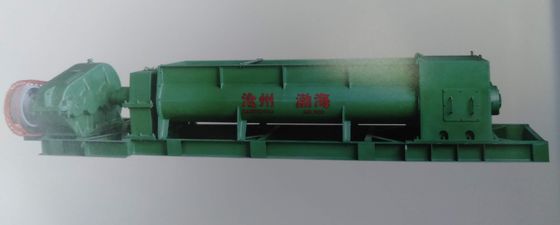

5. Machine pictures
