23kw 60000pec/H PLC Brick Stacking Machine

I'm Online Chat Now

23kw 60000pec/H PLC Brick Stacking Machine

23kw 60000pec/H PLC Brick Stacking Machine
23kw 60000pec/H PLC Brick Stacking Machine 23kw 60000pec/H PLC Brick Stacking Machine 23kw 60000pec/H PLC Brick Stacking Machine 23kw 60000pec/H PLC Brick Stacking Machine

Large Image :  23kw 60000pec/H PLC Brick Stacking Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 50000 SETS
Detailed Product Description
Model Number: JKR Raw Material: Clay,shale,soil,coal,and So On
Port Of Export: Tian Jin Port Contol System: PLC
High Ligh: Stacking Equipment, Auto Stacking Machine Frequency: 72-144 Pcs/h
Material: Steel Colour: Yellow
Driving Method: Opportunity + Frequency Conversion Power: 15+4+3
Yards Billet Capacity: 176-704 Overall Dimension: 11000×3500×6500
High Light:

60000pec/h brick stacking machine

,

23kw brick stacking machine

,

plc brick stacking machine



23kw Fully Automatic PLC Centralized Controln 60000pec/H Brick Stacking Robot Machine



1. Product description



       This machine is made of fixed beam, moveable frame, jacking system, grippers, gripper rotating device, air-operated system, servo system and PLC system, usually works together with raw brick grouping machine, used for gripping a group of green bricks from brick butting machine to tunnel kiln or rotary kiln drying car, to realize fully automatic production of starndard brick, hollow brick and perforated brick.



(1) Fully automatic brick stacker, which can automatically pick up unburned bricks, transport and put them down.



(2) Adopting advanced servo control, the operation precision is high, the positioning is accurate, and the operation is stable and stable.



(3) The stacking method can be customized, suitable for various types of tunnel kilns.



2.Technical parameters:





Date Units of meas CBS Coding Machine
Driving method   Opportunity + frequency conversion
Frequency time/h 72-144
Stacking machine cycle S 25-50
Yards billet capacity Pieces/times 176-704
Production capacity pieces/h 12000-60000
Power kw 15+4+3
Overall dimension mm 11000×3500×6500




3.Product Features



- Vertical truss beam structure, larger load and stability than horizontal beam

- Servo system, more steady, highly automatic

- Fast speed, high efficiency, big capacity

- Suitable for all kinds of bricks

- National Patent Product of brick making machine



4.preface



      The automatic series of brick arranging machines can meet the requirements of various tunnel kilns. The setting machine has the characteristics of good stability and high cost performance, which greatly improves the production efficiency and automation level, and reduces the production cost of the bricks.



       The automatic brick arranging machine is an automatic brick arranging system independently developed and manufactured by Bohai Brick Machinery Factory, which relies on a new design concept.

The device adopts automatic program control machine, electricity and gas integrated equipment, with high degree of automation and stable performance. It can automatically complete a series of actions such as adobe grouping, clamping bricks, and stacking bricks to ensure the accuracy, continuity and safety of brick clamping, and meet customers' requirements for higher, faster and safer automatic brick arranging.



After-sale services



(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.

(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:

1. Daily wear and tear

2. mishandling or improper operation

3. Incoming power supply fluctuation

4. Consumable and spare parts.

(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.

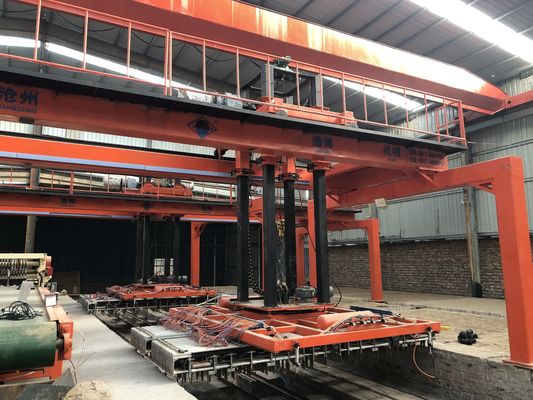

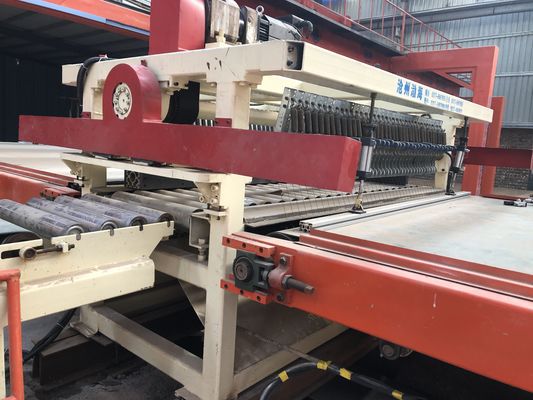

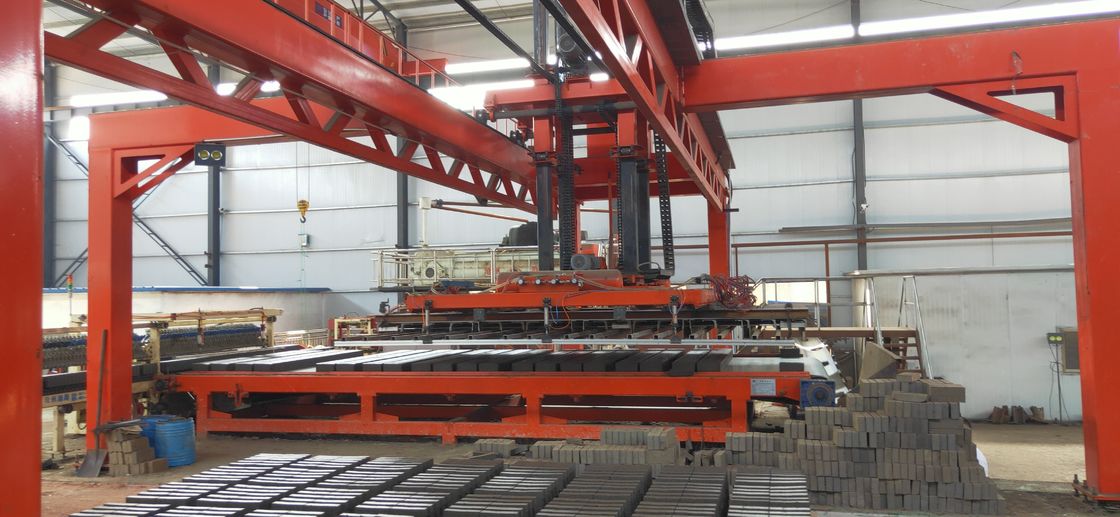

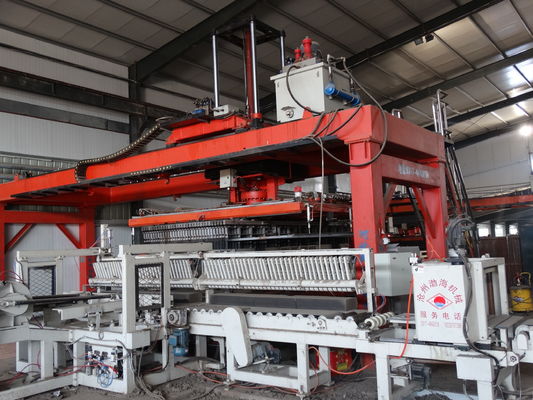

5.Machine picture



23kw 60000pec/H PLC Brick Stacking Machine 023kw 60000pec/H PLC Brick Stacking Machine 123kw 60000pec/H PLC Brick Stacking Machine 2
