32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine

I'm Online Chat Now

32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine

32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine
32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine 32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine 32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine

Large Image :  32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKY-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 5000SETS
Detailed Product Description
Production Name: Brick Making Machine Reamer Diamete: 600mm
Production Capacity(t/h): 18000-32000 Moisture Content: 13-18 %
Delivery Time:: 20-45 Days Brand: Cangbo
Weight: 28000 Overall Dimension: 7150×2200×3100
Pressure: 4.0 Colour: Red
Vacuum Degree: -0.092 Power: 250+90
Condition: New Automatic: Yes
High Light:

600mm Fly Ash Brick Making Machine

,

hydraulic fly ash brick making machine

,

automatic hydraulic fly ash brick making machine

32000t/H JKY60 600mm Red automatic hydraulic fly ash brick making machine



1.product description



Two-stage vacuum extruder is a new type brick-making equipment, designed and manufactured by our company, benefiting from advanced technology both at home and abroad.


It is of whole steel structure with main parts cast of high-abrasion alloy by high frequency heat treatment technology. Fearturing reasonable structure, heavy-duty, energy saving, high efficiency and easy maintenance, it is more suitalbe for manufacturing cell bricks and solid bricks with shale, coal gangue and fly ash.



2. Product features:



1. The automatic red clay brick machine is used to produce large holes, large cross-section solid bricks and hollow bricks with various hole sizes, and is suitable for a variety of materials.



2.Automatic Brick Making Machine has the characteristics of novel structure, advanced technology, high extrusion pressure, high output and high vacuum. Controlled by pneumatic clutch, it is sensitive, convenient and reliable.



3. After being extruded from the lower auger into the fuel tank, the soil and other raw materials are cleaned by vacuum. When the machine model is different, various specifications of porous bricks can be produced.





3 . Techical parameter



Date Units of meas JKY60-4.0
Production capacity Pieces/h 18000-32000
Reamer diameter mm 600
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 250+90
Size mm 7150×2200×3100
Weight kg 28000



4.Product Advantage



1. This series of host adopts high-quality steel plate welding structure, and the main components are quenched and tempered, which is compact and practical, stable in work, and low energy consumption



2. Red Automatic Brick Making Machine is suitable for power vacuum in small factories or entering restricted areas of main product machines.

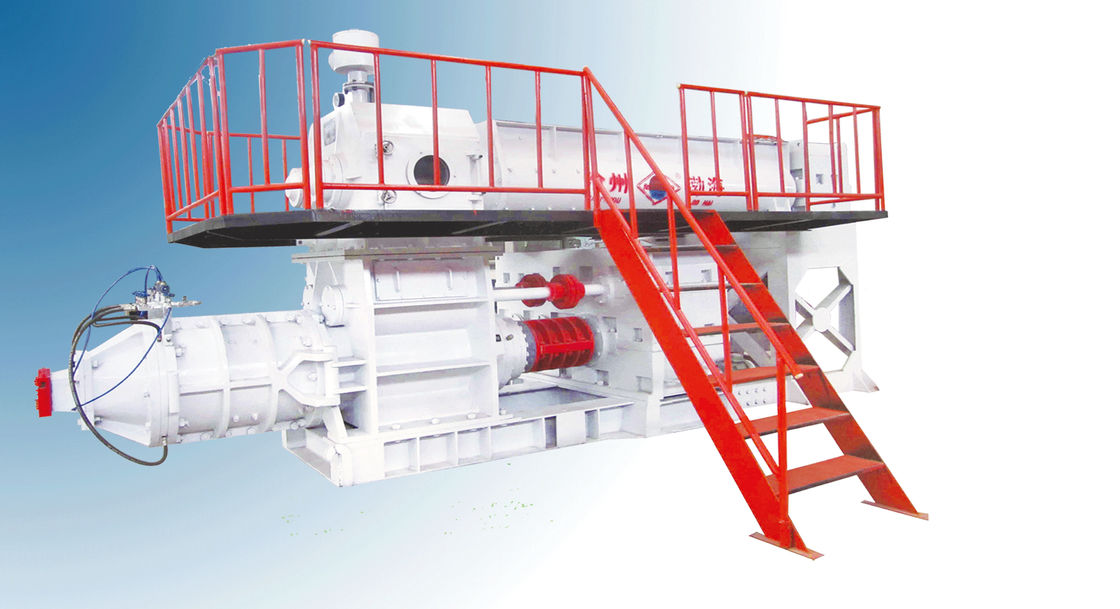

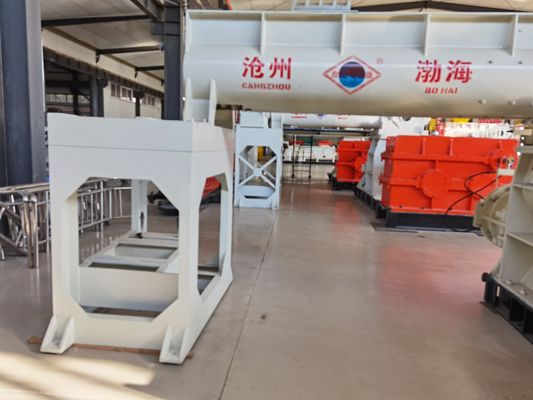

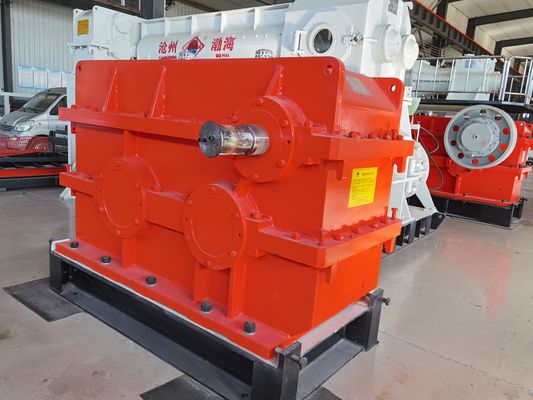

5. . Machine pictures



32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine 032000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine 132000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine 2
