Product Details:
Payment & Shipping Terms:
|
| Production Name: | Brick Making Machine | Reamer Diamete: | 550mm |
|---|---|---|---|
| Production Capacity(t/h): | 16000-22000 | Moisture Content: | 13-18 % |
| Delivery Time:: | 20-45 Days | Brand: | Cangbo |
| Weight: | 20000 | Overall Dimension: | 6300×1600×2450 |
| Pressure: | 4.0 | Colour: | Red |
| Vacuum Degree: | -0.092 | Power: | 185+75 |
| Condition: | New | Automatic: | Yes |
| High Light: | 550mm hydraulic fly ash brick making machine,22000t/h hydraulic fly ash brick making machine,automatic hydraulic fly ash brick making machine |
||
22000t/H JKY55 550mm Red Automatic Hydraulic Fly Ash Brick Making Machine With Stirrer
1.product description
1.Two-stage vacuum extruder is a new type of brick-making equipment designed and manufactured by our company.
Produce 22,000 bricks per hour, with a cutter diameter of 550 mm
2. The overall steel structure, the main parts are cast from high wear-resistant alloy, and undergo high-frequency heat treatment.
3. Reasonable structure, large load, energy saving, high efficiency, easy maintenance, more suitable for making porous bricks and solid bricks from shale, coal stone and fly ash.
2. Product features:
1. The automatic red clay brick machine is used to produce large holes, large cross-section solid bricks and hollow bricks with various hole sizes, and is suitable for a variety of materials.
2.Automatic Brick Making Machine has the characteristics of novel structure, advanced technology, high extrusion pressure, high output and high vacuum. Controlled by pneumatic clutch, it is sensitive, convenient and reliable.
3. After being extruded from the lower auger into the fuel tank, the soil and other raw materials are cleaned by vacuum. When the machine model is different, various specifications of porous bricks can be produced.
3 . Techical parameter
| Date | Units of meas | JKY55-4.0 |
| Production capactyi | Pieces/h | 16000-32000 |
| Reamer diameter | mm | 550 |
| Pressure | Mpa | 4.0 |
| Moisture content | % | 13～18 |
| Vacuum degree | Mpa | ≤-0.092 |
| Power | kw | 185+75 |
| Size | mm | 6300×1600×2450 |
| Weight | kg | 20000 |
| Voltage | v | 220V/380V |
4.Product Advantage
1. This series of host adopts high-quality steel plate welding structure, and the main components are quenched and tempered, which is compact and practical, stable in work, and low energy consumption
2. Red Automatic Brick Making Machine is suitable for power vacuum in small factories or entering restricted areas of main product machines.

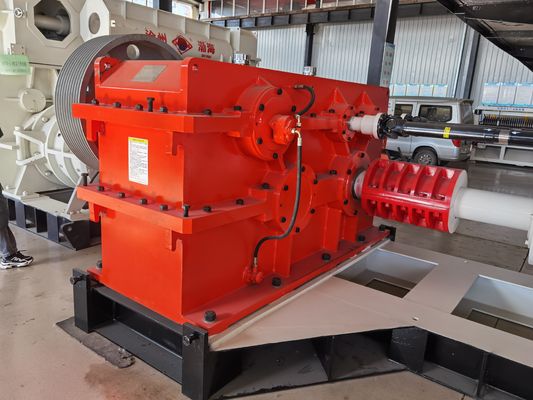

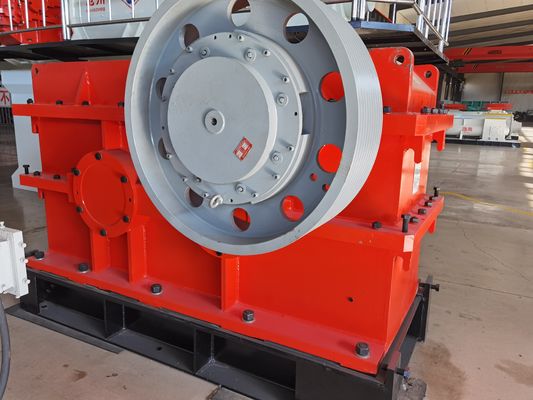

5. . Machine pictures
