Two Stage Vacuum Extrusion JKY60 Auto Brick Making Machine

I'm Online Chat Now

Two Stage Vacuum Extrusion JKY60 Auto Brick Making Machine

Two Stage Vacuum Extrusion JKY60 Auto Brick Making Machine
Two Stage Vacuum Extrusion JKY60 Auto Brick Making Machine Two Stage Vacuum Extrusion JKY60 Auto Brick Making Machine Two Stage Vacuum Extrusion JKY60 Auto Brick Making Machine

Large Image :  Two Stage Vacuum Extrusion JKY60 Auto Brick Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKY-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 5000SETS
Detailed Product Description
Production Name: Brick Making Machine Reamer Diamete: 600mm
Production Capacity(/h): 18000-32000 Moisture Content: 13-18 %
Delivery Time:: 20-45 Days Brand: Cangbo
Weight: 28000 Overall Dimension: 7150×2200×3100
Pressure: 4.0 Colour: Red
Vacuum Degree: -0.092 Power: 250+90
High Light:

JKY60 Auto Brick Making Machine

,

JKY60 automatic brick machine

,

600mm Auto Brick Making Machine

JKY60 Two - stage vacuum extrusion Auto Brick Making Machine



1.product description



They are mainly used for the raw material of coal gangue,coal ash,shale,clay and so on.It is the ideal equipment for the production of various standard brick,hollow brick,irregular brick,high hole rate brick,etc.



1. Auto Brick Making Machine Reasonable structure, heavy load, energy saving, high efficiency, easy maintenance, more suitable for making honeycomb bricks and solid bricks from shale, coal stone and fly ash.


2. The two-stage vacuum brick making machine is a new type of brick making equipment designed and manufactured by our company, which benefits from advanced technology at home and abroad.


3. The Auto Brick Making Machine overall steel structure, the main parts are cast from high wear-resistant alloy, and undergo high-frequency heat treatment.



2. Product features:



1. The automatic red clay brick machine is used to produce large holes, large cross-section solid bricks and hollow bricks with various hole sizes, and is suitable for a variety of materials.



2. It has the characteristics of novel structure, advanced technology, high extrusion pressure, high output and high vacuum. Controlled by pneumatic clutch, it is sensitive, convenient and reliable.



3. After being extruded from the lower auger into the fuel tank, the soil and other raw materials are cleaned by vacuum. When the machine model is different, various specifications of porous bricks can be produced.





3 . Techical parameter



Date Units of meas JKY60-4.0
Production capacity Pieces/h 18000-32000
Reamer diameter mm 600
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 250+90
Size mm 7150×2200×3100
Weight kg 28000



4.Product Advantage



It has the characteristics of reasonable structure, heavy duty, energy saving, high efficiency and easy maintenance. It is more suitable for the production of honeycomb bricks and solid bricks of shale, coal stone and fly ash.

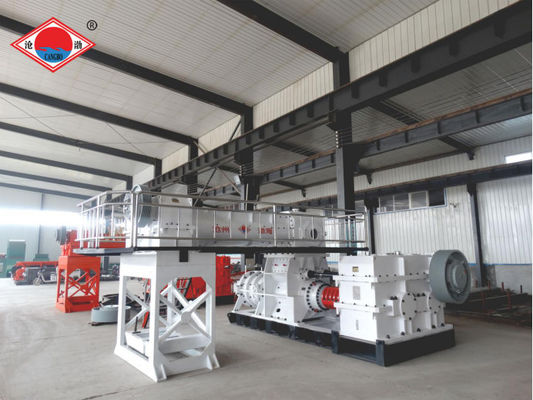

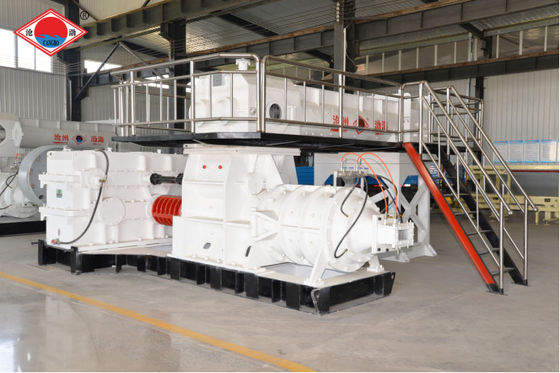

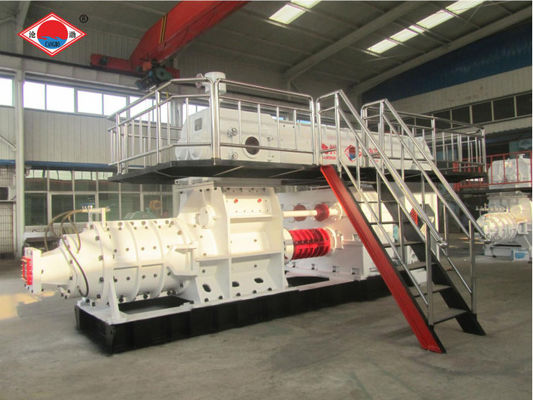

5. . Machine pictures



Two Stage Vacuum Extrusion JKY60 Auto Brick Making Machine 0Two Stage Vacuum Extrusion JKY60 Auto Brick Making Machine 1Two Stage Vacuum Extrusion JKY60 Auto Brick Making Machine 2
