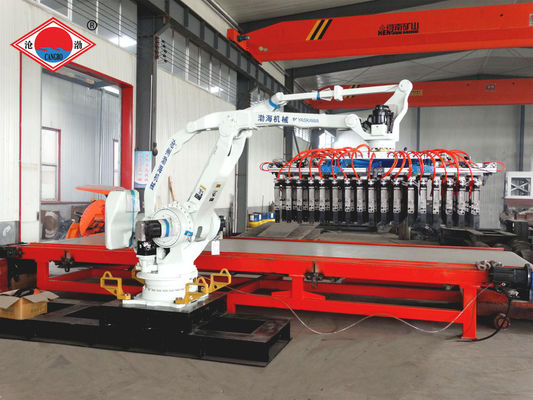

144pcs/H Yellow Brick Stacking Robot Machine

I'm Online Chat Now

144pcs/H Yellow Brick Stacking Robot Machine

144pcs/H Yellow Brick Stacking Robot Machine
144pcs/H Yellow Brick Stacking Robot Machine 144pcs/H Yellow Brick Stacking Robot Machine 144pcs/H Yellow Brick Stacking Robot Machine

Large Image :  144pcs/H Yellow Brick Stacking Robot Machine

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 50000 SETS
Detailed Product Description
Model Number: JKR Raw Material: Clay,shale,soil,coal,and So On
Port Of Export: Tian Jin Port Contol System: PLC
High Ligh: Stacking Equipment, Auto Stacking Machine Frequency: 72-144pcs/h
Material: Steel Colour: Yellow
Driving Method: Opportunity + Frequency Conversion Power: 15+4+3
Yards Billet Capacity: 176-704 Overall Dimension: 11000×3500×6500
High Light:

Automatic bricklaying and stacking machine


yellow brick stacking robot


144pcs/h brick stacking robot

Automatic bricklaying and stacking Yellow Brick Stacking Robot Machine


一 . Product description


1. The automatic bricklaying machine is composed of special strip cutting machine, brick cutting machine, brick cutting machine, brick moving machine, moving system, up and down system, rotating system, hydraulic system and electrical system.


2. Hollow block, solid standard brick, blind hole brick.


3. The automatic stacker adopts advanced PLC centralized control, safe configuration logic control, production program and fault diagnosis display.


4. It can meet all the needs of the market, and can minimize the user's investment risk.


二.Technical parameters:



Date Units of meas CBS Coding Machine
Driving method   Opportunity + frequency conversion
Frequency time/h 72-144
Stacking machine cycle S 25-50
Yards billet capacity Pieces/times 176-704
Production capacity pieces/h 12000-60000
Power kw 15+4+3
Overall dimension mm 11000×3500×6500




1.What are the raw materials for making bricks?

Clay, coal stone, shale, fly ash


2. Do you have a raw material inspection report?

Yes, it should include physical and chemical properties.


3. What is the size of the brick?

For example, 9" x4" x 3" inches (Indian standard brick size)


4. What is the daily brick capacity (tons or blocks)



200,000 pieces


5. What are the fuel and calorific value of burning bricks?

For example, coal, natural gas, diesel, heavy oil


6. Which type of furnace do you prefer?

A tunnel kiln (automatic control, low energy consumption, but high investment)

Hoffman kiln (bad working conditions, high energy consumption, environmental pollution, but low investment)


7. What is automatic level?

Manual bricklaying

Machine bricklaying


8. How about the land conditions

Square area

Border satellite image

Location and surrounding conditions.


四.Structure and principle


1.In the operation of the equipment, the servo motor completes the overall layout of the brick body and accurately locates it.


2.The elevator adopts frequency conversion control technology, which has no effect on the overall operation of the equipment.


3.According to actual needs, there are process instructions for each time period, and the touch screen and button operation are reasonably configured, which is easy to maintain and maintain.


4.The total motor power of the automatic brick setting machine is 9KW.


5.Mechanical structure, walking and lifting double drag mode, the equipment is in operation, to ensure the balance of force and force.


6. The gas buffer is used to lift the bricks to work in reverse, which greatly reduces the impact on the reducer and balances the force of the reducer.


7.The clamping and sewing are all pneumatic, and the maintenance is intuitive and convenient.

The product has been exported to the United States, France, Canada, Indonesia, Russia, Vietnam, Australia, South Korea, Iran and other countries and has won unanimous praise from customers.


五.Machine picture


144pcs/H Yellow Brick Stacking Robot Machine 0144pcs/H Yellow Brick Stacking Robot Machine 1144pcs/H Yellow Brick Stacking Robot Machine 2144pcs/H Yellow Brick Stacking Robot Machine 3
