Vacuum Dryer 700mm Automatic Brick Making Machine With Stirrrer

I'm Online Chat Now

Vacuum Dryer 700mm Automatic Brick Making Machine With Stirrrer

Vacuum Dryer 700mm Automatic Brick Making Machine With Stirrrer
Vacuum Dryer 700mm Automatic Brick Making Machine With Stirrrer

Large Image :  Vacuum Dryer 700mm Automatic Brick Making Machine With Stirrrer

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001
Model Number: JKY-70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 5000 SETS
Detailed Product Description
Condition: New Production Capacity: 28000-40000
Reamer Diameter: 700mm Pressure: 4.0Mpa
Vacuum Degree: ≤-0.092 Mpa Power: 280+110 Kw
Size: 7900×2800×3300  Weight: 35000 KG
Colour: Yellow Origin: HEBEI
High Light:

700mm automatic brick making machine

,

4.0Mpa automatic brick making machine

JKY70 - 4.0 Yellow High Vacuum Dryer Type Auto Brick Making Machine With Stirrrer



1. Product features:



The double-stage vacuum brick making machine is a new type of brick making equipment designed and manufactured by our company, which benefits from advanced technology at home and abroad. Integral steel structure, the main parts of high wear-resistant alloy cast from the high-frequency heat treatment process. Reasonable structure, heavy load, energy saving, high efficiency, easy maintenance, more suitable for shale, coal gangue, fly ash to make cell brick and solid brick.



They are mainly used for the raw material of coal gangue,coal ash,shale,clay and so on.It is the ideal equipment for the production of various standard brick,hollow brick,irregular brick,high hole rate brick,etc.



The main frames of the vacuum extruder machine are welded by using high-quality steel and have the features of low cost,reliable perfromance,rational





2. Techical parameter



Date Units of meas JKY70-4.0
Production capacity Pieces/h 28000-40000
Reamer diameter mm 700
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 280+110
Size mm 7900×2800×3300
Weight kg 35000

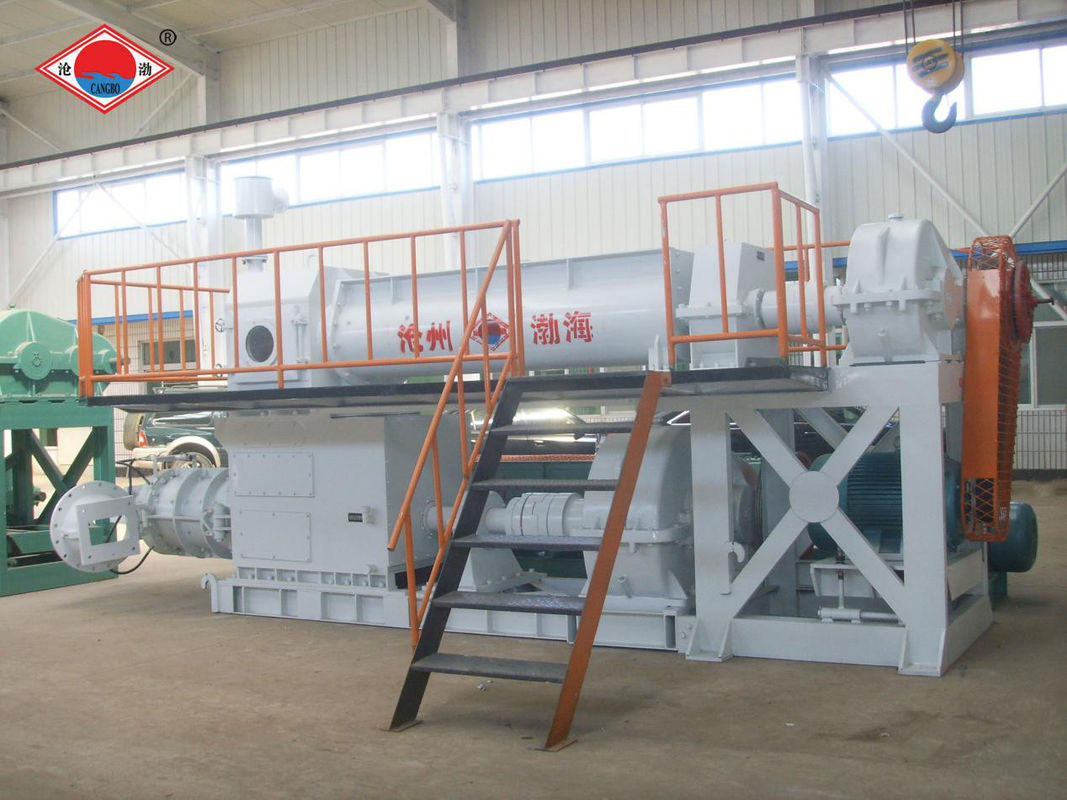

3 . Machine pics



Vacuum Dryer 700mm Automatic Brick Making Machine With Stirrrer 0Vacuum Dryer 700mm Automatic Brick Making Machine With Stirrrer 1
