QT-26QP280 High Capacity Fully Automatic Brick Cutting Machine

I'm Online Chat Now

QT-26QP280 High Capacity Fully Automatic Brick Cutting Machine

QT-26QP280 High Capacity Fully Automatic Brick Cutting Machine
QT-26QP280 High Capacity Fully Automatic Brick Cutting Machine QT-26QP280 High Capacity Fully Automatic Brick Cutting Machine QT-26QP280 High Capacity Fully Automatic Brick Cutting Machine QT-26QP280 High Capacity Fully Automatic Brick Cutting Machine

Large Image :  QT-26QP280 High Capacity Fully Automatic Brick Cutting Machine

Product Details:
Place of Origin: HEBEI
Brand Name: CB
Certification: ISO9001
Model Number: 50,55,60,70
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60days
Payment Terms: T/T, L/C
Supply Ability: 50SETS
Detailed Product Description
Power: 14kw Cutting Frequency: 10-20
Productive Capacity: 20000-55000 Dimensions: 10000×3100×1600
Brand: CB Colour: RED
Origin: CHINA
High Light:

QT-26QP280 Automatic Brick Cutting Machine

,

14kw Automatic Brick Cutting Machine

,

Red Clay Brick Making Machine

Strong thrust, high structural strength QT-26QP280 senes full-automatic strip cutting and blank cutting machine



1 Product features





It is specially desighed for bigger main machine, type 50, 55, 60, 70 and above, high capacity and fully hard mould production line. With strong pushing power and high strength structure, it is suitalbe for making standard, multihole and large block bricks with shale and coal gangue.



Cutting frequency ≤ 20 times / min, cutting height up to 260mm, cutting mud length: 1750-2500mm



This set of billet cutting machine is especially suitable for 50,55,60,70 and above large mainframe, large capacity full hard die production lines. Large thrust, high structural strength, suitable for shale, coal gangue and other production standards, porous, large brick. Cutting Frequency ≤20 times per minute, cutting height 260 mm, cutting mud length 1750-2500 mm, especially suitable for 60,70 and above large-scale brick-making machine, high output full hard die production line. Large thrust, high structural strength, suitable for shale, coal gangue, clay and other production standards, porous, large brick. Cutting Frequency ≤18 / Min, cutting height 260mm, cutting mud length 1750-2500mm.




2 Technical parameters

Date Units of meas 双联切条切坯机
Power kw 14
Cutting frequency times/min 10-20
Production capacity pieces/h 20000-55000
Overall dimension mm 10000×3100×1600





3  Product description



Structural characteristics
1. Automatic let partial device never oblique cutting, do not need to be adjusted, the stainless steel drum power mesa clay-strip automatic in place,avoid wasting soil than ordinary flat mesa clean oil saving 70/100%. Stainless steel push board face aperture wear-resisting, 3 times lifespan.
2. Fully automatic operation, do not need to collect and artificial and plate, labor saving, high production efficiency. Online continuous proportion ingredients system (automatic combustion precision machine) ingredients: fully automatic operation, the proportioning precision; Ingredients evenly, saving fuel, reducing pollution emissions, environmental protection and energy saving.
3. Applicable to a variety of material ratio of continuous feeding conveyor, bucket batching system is simple and fast. Intelligent control,avoid the error of the orientation and plugging material lead to arc make the wire into the slot accurately, reduce the wire broken by an average of 70%.
4. High grinding material process guide for hard chromium plating, with composite guide bearing, small resistance, long service life.Buffer accumulator absorb shock return and push return impact energy into power. High strength, large thrust massively applied in coal gangue shale plasticity, half-hard plastic extrusion.
5. Suitable for all kinds of material of hard and soft plastic clay mud of high sediment concentration inferior soil oil-saving effect is prominent. Article through mud should be declared in advance, using encryption roller table. Push board biggest reciprocating frequency 41 times/min. Can be double mud, high block cutting



4 Advantages



large grade and firm structure, with full thrust, with the features of forming two large blocks for one time, with materials of shale, coal gangue, fly ash, hard and soft stripes of the clay.
Our production equipments, highly efficient energy-saving, compact structure, automation, simple maintenance, stable and reliable, low-cost advantages, which can satisfy the different needs of the large, medium and small-scale brick-making manufacturers; are clay, shale, coal gangue, fly ash and other raw materials ideal brick-making equipment At the same time, our factory can also provide users.



Brick making machine, column segment cutter is used for cutting the adobe strip from extruder according to the length requirement of adobe piece cutting machine to adobe section, and feed them into piece cutting machine.

This machine is used for cutting brick strips into brick billets by steel wires, usually it works together with auto brick stacking machin. It is made of rollers, dam-board, push plate and steel wires frame etc, suitable for the product line of hard plasticity and semi hard plasticity, in order to realize automatic and semi-automatic operation of starndard brick, hollow brick and perforated brick which use shale, coal gangue, coal ash, clay and mud as raw materials



Feature



1. Different products: vertical section cutter, synchronous cutter.

2. This machine may adjust the cutting strip length and cut the adobe strip automatically.

3. The vertical cutter has the features like vertical cutting, small stub, and high efficiency.


Specifications


1. Labour saving
2. Low fault rate
3. One years' warranty
4. More durable
5. High efficiency

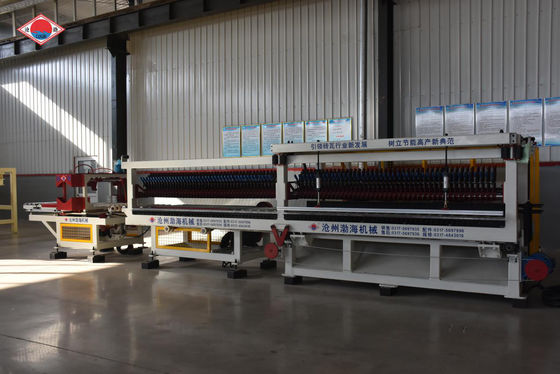

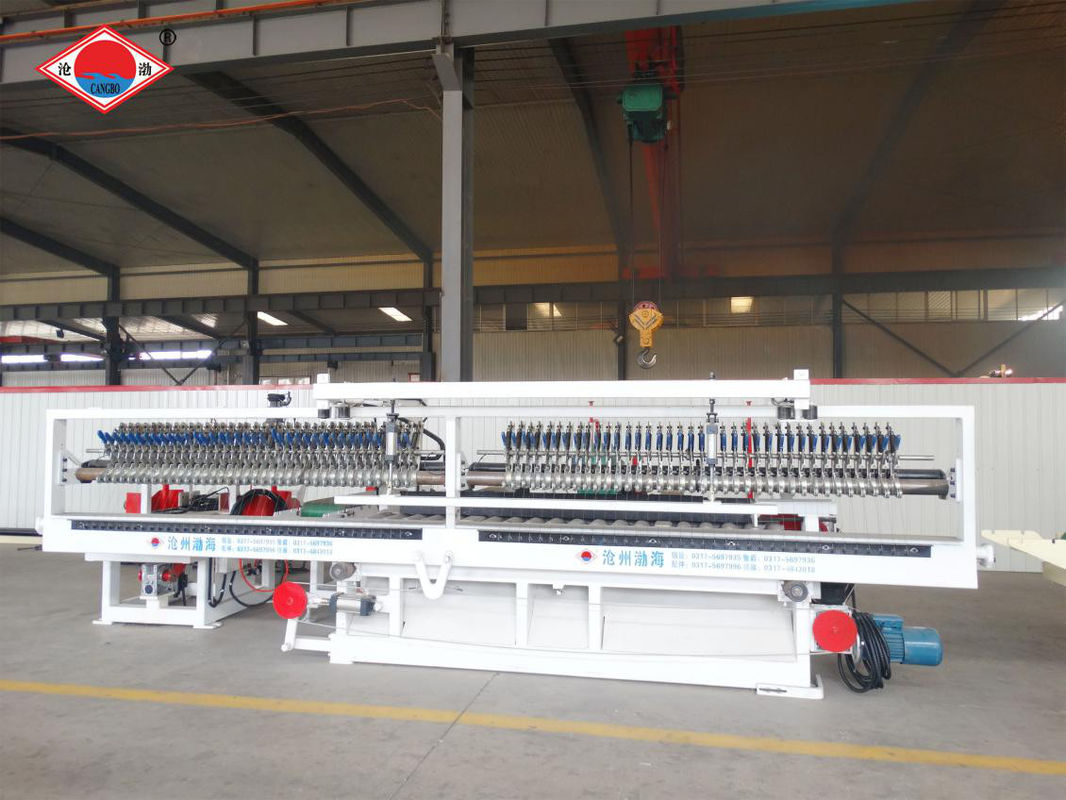

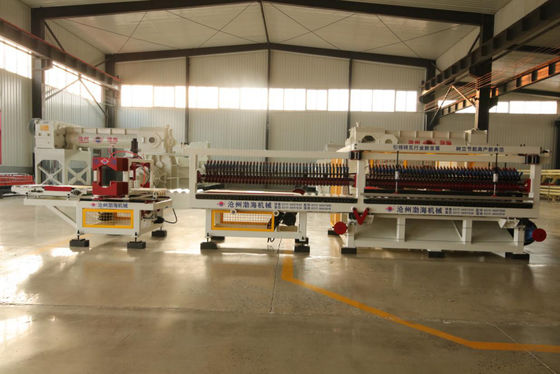

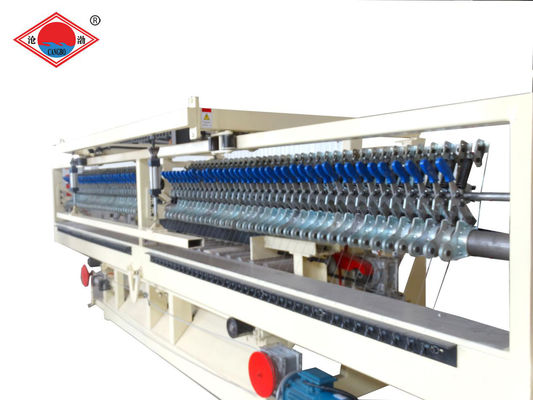

5  Product Picture



4QT-26QP280 High Capacity Fully Automatic Brick Cutting Machine 0QT-26QP280 High Capacity Fully Automatic Brick Cutting Machine 1
