High Structural Strength Programmed Brick Adobe Making Machine

I'm Online Chat Now

High Structural Strength Programmed Brick Adobe Making Machine

High Structural Strength Programmed Brick Adobe Making Machine
High Structural Strength Programmed Brick Adobe Making Machine High Structural Strength Programmed Brick Adobe Making Machine High Structural Strength Programmed Brick Adobe Making Machine High Structural Strength Programmed Brick Adobe Making Machine

Large Image :  High Structural Strength Programmed Brick Adobe Making Machine

Product Details:
Place of Origin: HEBEI
Brand Name: CB
Certification: ISO9001
Model Number: 50,55,60,70
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60days
Payment Terms: T/T, L/C
Supply Ability: 50SETS
Detailed Product Description
Name: Brick Adobe Making Machine Power: 14kw
Cutting Frequency: 10-20 Productive Capacity: 20000-55000
Dimensions: 10000×3100×1600 Brand: CB
High Light:

Programmed Brick Adobe Making Machine

,

14kw Brick Adobe Making Machine

,

55000 pcs/h Brick Adobe Making Machine

High Structural Strength Heavy Auto Programmed Adobe Cutting Machine



1 Product features



It is specially desighed for bigger main machine, type 50, 55, 60, 70 and above, high capacity and fully hard mould production line. With strong pushing power and high strength structure, it is suitalbe for making standard, multihole and large block bricks with shale and coal gangue.



Cutting frequency ≤ 20 times / min, cutting height up to 260mm, cutting mud length: 1750-2500mm



This set of billet cutting machine is especially suitable for 50,55,60,70 and above large mainframe, large capacity full hard die production lines. Large thrust, high structural strength, suitable for shale, coal gangue and other production standards, porous, large brick. Cutting Frequency ≤20 times per minute, cutting height 260 mm, cutting mud length 1750-2500 mm, especially suitable for 60,70 and above large-scale brick-making machine, high output full hard die production line. Large thrust, high structural strength, suitable for shale, coal gangue, clay and other production standards, porous, large brick. Cutting Frequency ≤18 / Min, cutting height 260mm, cutting mud length 1750-2500mm.



2 Technical parameters



Date Units of meas double mud strip cutting machine
Power kw 14
Cutting frequency times/min 10-20
Production capacity pieces/h 20000-55000
Overall dimension mm 10000×3100×1600





3  Product description



It is achieved by brick cutter.

The clay column which sends by brick cutter will arrived the clay column locating guard plate through the table-board roller,after the optoelectronic switch detect the clay column, through the control program to make the separation cylinder start, and pull-out the separate leader, and connect the combined arm, the power of electromotor is reduced by reducer and spindle box.



The crank rocker will bring the pusher to make reciprocal rectilinear motion, while the pusher move forward, the clay column will be pushed to the steel wire to achieve the brick cutting, while the pusher move back, the separate-leader will bring back to home position by return-tension, and then to separate the combined arm, cut-off the power(rotate speed).



The pusher through the proper braking and return to position nearby the end-stop point(the position for next cutting ) through the inheritance, and then waiting for next cutting.



Automatic brick strip cutting machine can adjust the length of bolar strips at will to have no earth-crumbs (the earth-crumbs
length of thin-walled hollow-brick), according to different standards of adobes. It can cut bolar strips automatically and
vertically, and carry them onto the cutting platform to make unmanned operation and remote control.

A, The vertical strip cutting machine can overcome the mud dump,increase production save 7-15% energy ,reduce one or two staffs and decrease working wear.


B, The automatic strip cutting and blank cutting system is matched with automatic production line could realize unmanned operation.



4 Advantages



large grade and firm structure, with full thrust, with the features of forming two large blocks for one time, with materials of shale, coal gangue, fly ash, hard and soft stripes of the clay.
Our production equipments, highly efficient energy-saving, compact structure, automation, simple maintenance, stable and reliable, low-cost advantages, which can satisfy the different needs of the large, medium and small-scale brick-making manufacturers; are clay, shale, coal gangue, fly ash and other raw materials ideal brick-making equipment At the same time, our factory can also provide users.



Brick making machine, column segment cutter is used for cutting the adobe strip from extruder according to the length requirement of adobe piece cutting machine to adobe section, and feed them into piece cutting machine.

This machine is used for cutting brick strips into brick billets by steel wires, usually it works together with auto brick stacking machin. It is made of rollers, dam-board, push plate and steel wires frame etc, suitable for the product line of hard plasticity and semi hard plasticity, in order to realize automatic and semi-automatic operation of starndard brick, hollow brick and perforated brick which use shale, coal gangue, coal ash, clay and mud as raw materials



Feature



1. Different products: vertical section cutter, synchronous cutter.

2. This machine may adjust the cutting strip length and cut the adobe strip automatically.

3. The vertical cutter has the features like vertical cutting, small stub, and high efficiency.


Specifications


1. Labour saving
2. Low fault rate
3. One years' warranty
4. More durable
5. High efficiency

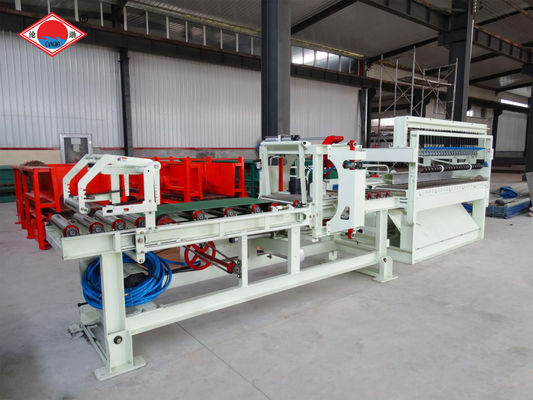

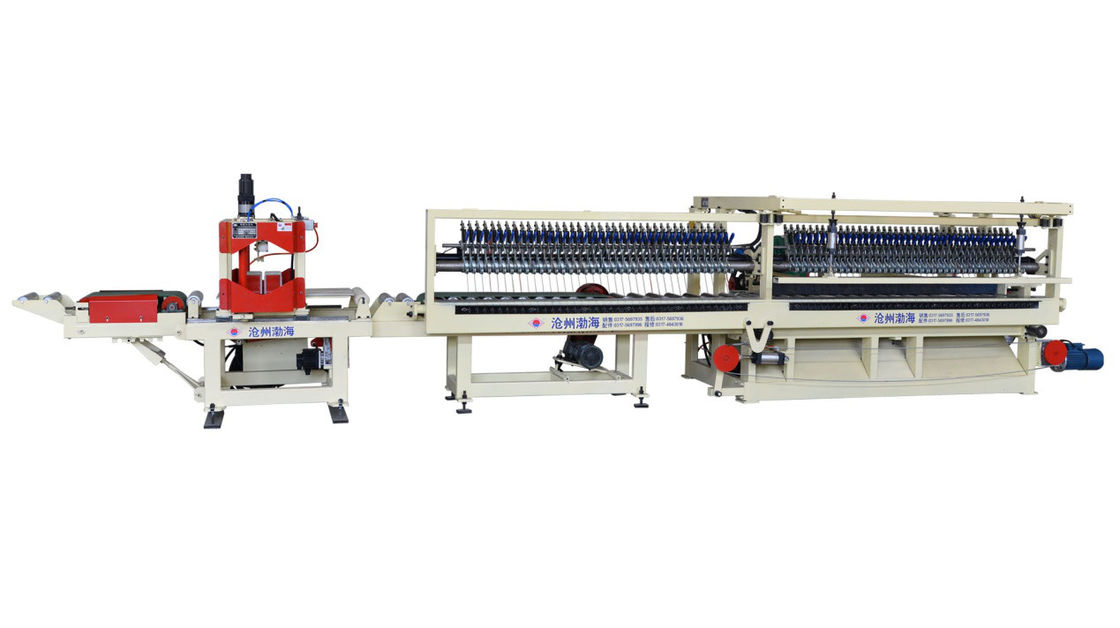

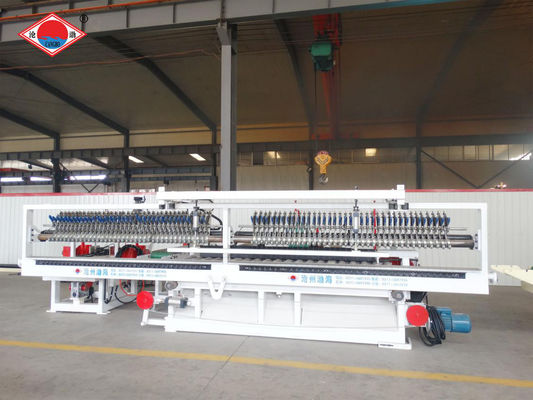

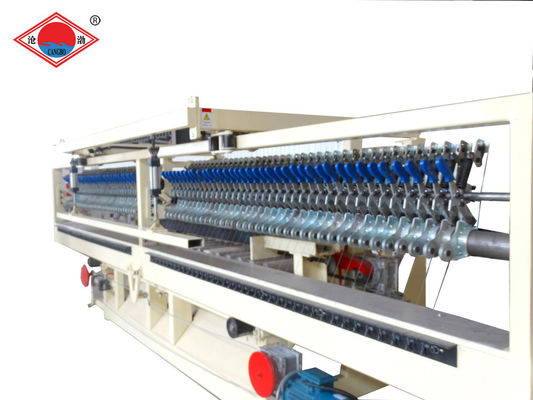

5  Product Picture



4High Structural Strength Programmed Brick Adobe Making Machine 0High Structural Strength Programmed Brick Adobe Making Machine 1
