Automatic Brick Stacking Machine Robot Stacking System

I'm Online Chat Now

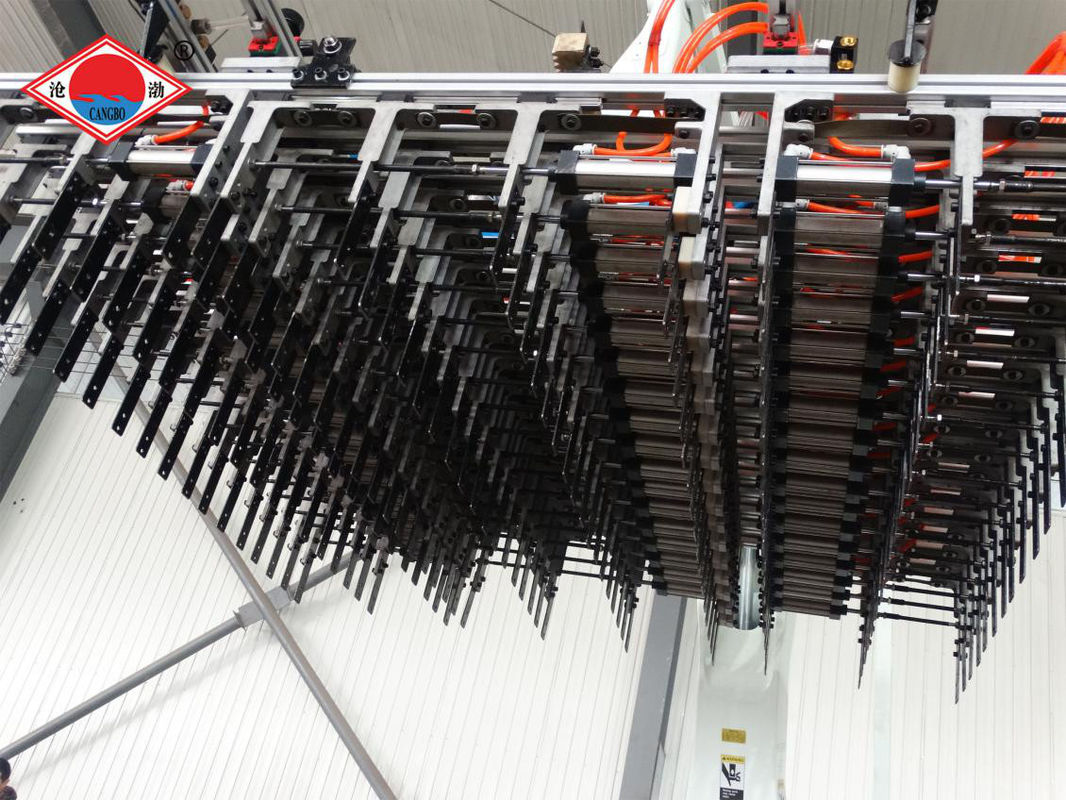

Automatic Brick Stacking Machine Robot Stacking System

Automatic Brick Stacking Machine Robot Stacking System
Automatic Brick Stacking Machine Robot Stacking System

Large Image :  Automatic Brick Stacking Machine Robot Stacking System

Product Details:
Place of Origin: CHINA
Brand Name: CB
Certification: ISO-9001 CE
Model Number: JKR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box and container
Delivery Time: 60 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 50 SETS
Detailed Product Description
Model Number: JKR Contol System: PLC
Warranty: 1 Year Port Of Export: Tian Jin Port
Frequency: 72-144 Pcs/h Raw Material: Clay,shale,soil,coal,and So On
High Ligh: Stacking Equipment, Auto Stacking Machine Material: Steel
High Light:

Robotic Arm Brick Stacking Machine

,

JKR Brick Stacking Machine

,

Auto Brick Robot Stacking System

Automatic Brick Stacking Machine Robot Stacking System



Advantage


1. Strong applicability, high output. Good choice for big project.
2. The raw material for making bricks can be soil,clay, fly ash, coal gangue, shale, urban construction waste, gangue waste, inferior soil, etc.
3. High vacuum and pressure extrusion and it is good to make strong solid bricks and hollow bricks with qualified holes. The size of solid brick and the holes of hollow bricks can be changed according to your needs.



1, Product features


Full-auto brick-stacking machine, adopting advanced servo control with high running accuracy and precise positioning, runs smoothly and steadily, which can automatically pick up the unburnt bricks, transport and put down them. The stacking style can be customised, suitalbe for all kinds of section tunnel kilns.


2, Technical parameters



Date Units of meas CBS Stacking machine series
Driving method   Servo+frequency conversion
Frequency time/h 72-144
Stacking machine cycle S 25-50
Yards billet capacity Pieces/times 176-704
Production capacity pieces/h 20000-35000
Power kw 15+5.5+6
Overall dimension mm 12000×5100×5300



Application

This machine is out of the product can be used sand, stone, cement, coal cinder, coal gangue, slag, ceramsite, perlite and other industrial waste processing into a variety of new wall materials, such as hollow concrete block, blind hole brick, standard brick, without sintering.



Automatic Brick Stacking Machine Robot Stacking System 0
