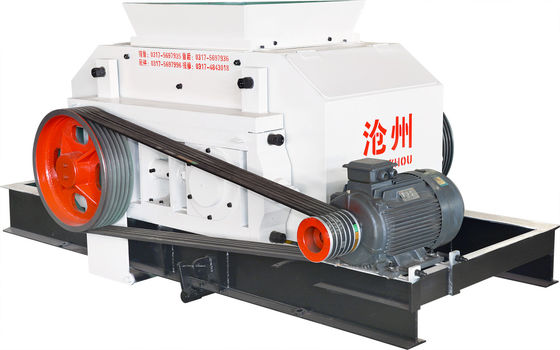

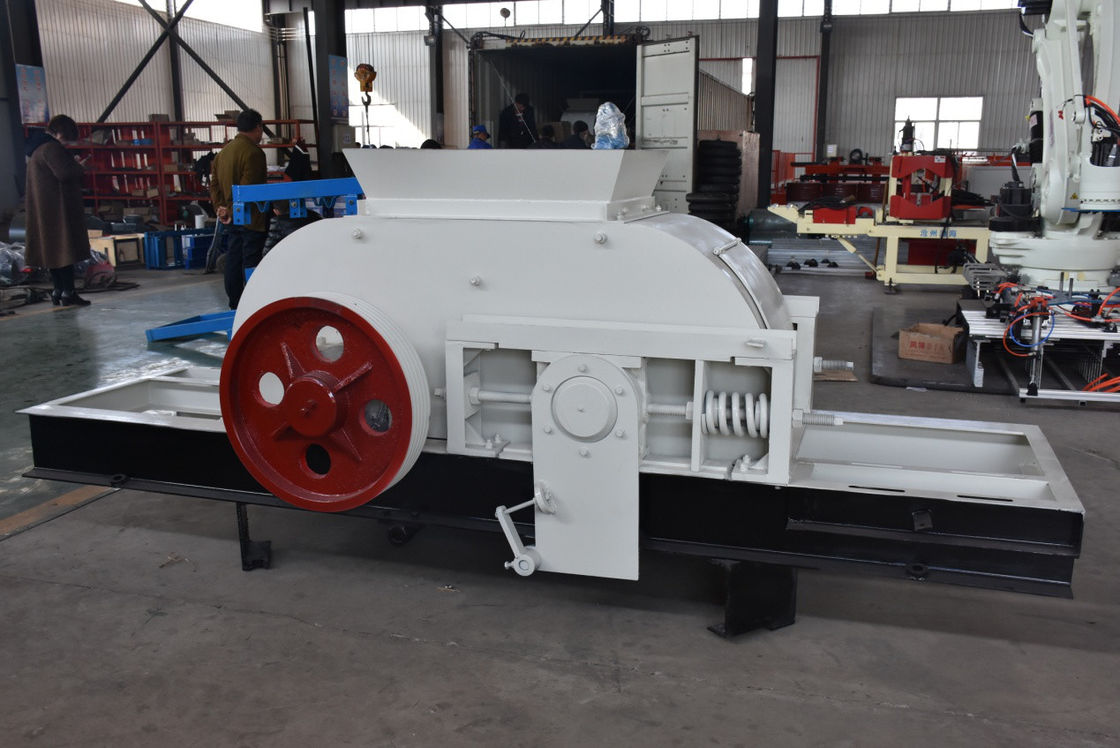

Powerful Durable 150 M³/H Double Roll Crusher Machine

I'm Online Chat Now

Powerful Durable 150 M³/H Double Roll Crusher Machine

Powerful Durable 150 M³/H Double Roll Crusher Machine
Powerful Durable 150 M³/H Double Roll Crusher Machine Powerful Durable 150 M³/H Double Roll Crusher Machine

Large Image :  Powerful Durable 150 M³/H Double Roll Crusher Machine

Product Details:
Place of Origin: CHINA
Brand Name: BOHAI
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD
Packaging Details: CONTAINER
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 50SETS
Detailed Product Description
Machine Name: Powerful Fine Crushing Roller Crush Particles: ≤2mm
Production Capacity: 100-150 M³/h Roller Specification: Dia 1200*1000
Roller Gap: ≤3 Mm Clay Moisture: 10-18
Feeding Clay Size Size: ≤ 50 Mm Power: 90+75 Kw
Machine Size: 4600*2000*2100 (mm) Working Type: Auto
High Light:

Powerful Double Roll Crusher

,

150 m³/h Double Roll Crusher

,

Durable Double Roller Crusher

CB-GB Powerful Fine-Crushing Roller



1, Product features:


Fine-Crushing Roller applies to thin the raw material, like shale, coal gangue grain and pulp stone. It can crush particles≤2mm and make it finer.



2, Technical parameters:



Date Units of meas GS80×80
Production capacity m3/h 50-80
Roller specification mm Φ800×800
Roller gap mm ≤3
Feeding moisture content 10-18
Feeding size mm ≤50
Power kw 30+30
Overall dimension mm 3400×1600×1400



Date Units of meas GS80×60
Production capacity m3/h 40-70
Roller specification mm Φ800×600
Roller gap mm ≤3
Feeding moisture content 10-18
Feeding size mm ≤50
Power kw 22+22
Overall dimension mm 3100×1600×1400



Date Units of meas GS70×50
Production capacity m3/h 30-50
Roller specification mm Φ700×500
Roller gap mm ≤3
Feeding moisture content 10-18
Feeding size mm ≤50
Power kw 15+15
Overall dimension mm 2800×1300×1250
