Product Details:
Payment & Shipping Terms:
|
| Name: | Clay Brick Extruder Machine | Prduction Capacity: | 40-60m³/h |
|---|---|---|---|
| Agitator Shaft Speed: | 36r/m | Power: | 110 Kw |
| Machine Size: | 7600*2100*1700 | ||
| High Light: | 60m³/h Brick Extruder,36r/m Brick Extruder,Clay Brick Extruder |
||

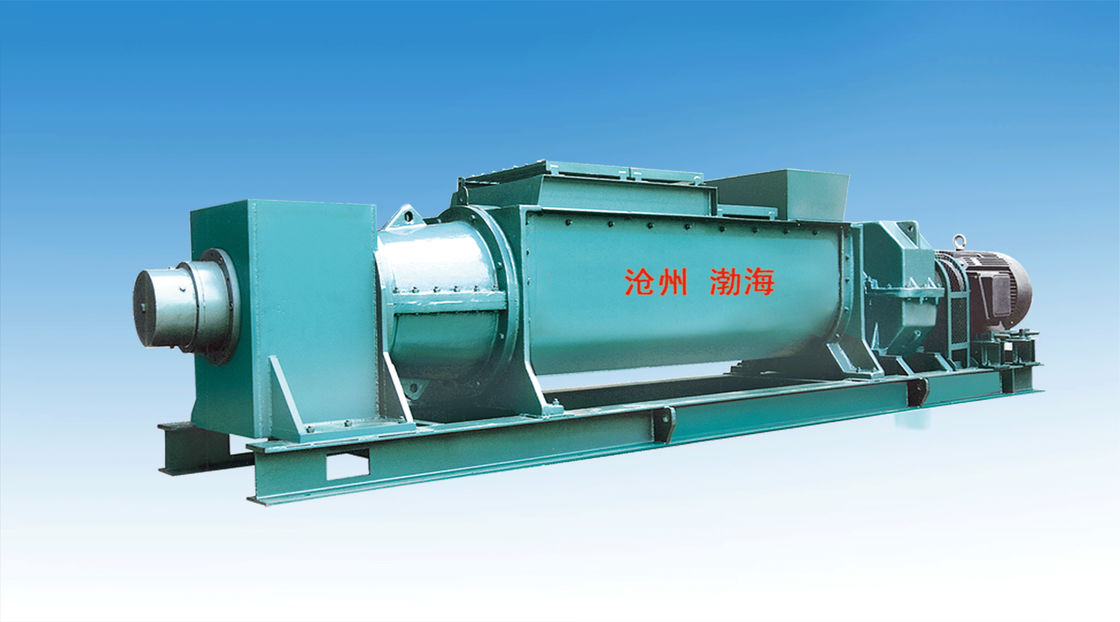

CB - Single-Axle Stirring Extruder Brick Machine
Descriptions
1. The Brick Machine is suitable for making the clay brick abode for house.
2. The materials can be clay, blackland, mixingclay.
3. It includes Mixer/Mud pie maker, Gear Case, Mud pie cutter and Mud adobe slicer machine, water pump.
4. It can be installed on the falsework(wooden/iron broad), also can be installed on the concrete foundation.
Product features
It applies to raw material like clay, coal gangue, shale and fly ash, fully stirring and mixing the material with water to increase its plasticity.
Technical parameters
| Date | Units of meas | DJJ90 |
| Production capacity | M3/h | 40-60 |
| Agitator shaft speed | r/min | 36 |
| Power | kw | 110 |
| Overall dimension | mm | 7600×2100×1700 |
| Date | Units of meas | DJJ120 |
| Production capacity | M3/h | 50-80 |
| Agitator shaft speed | r/min | 32 |
| Power | kw | 132 |
| Overall dimension | mm | 7900×2300×1750 |
| Date | Units of meas | DJJ150 |
| Production capacity | M3/h | 60-100 |
| Agitator shaft speed | r/min | 32 |
| Power | kw | 160 |
| Overall dimension | mm | 8500×2500×1850 |
